AN31.10-P-8080Q Retrofit Trailer Coupling

AN31.10-P-8080Q Retrofit Trailer Coupling
- except CODE (772) AMG styling package
- except CODE (950) AMG sport package

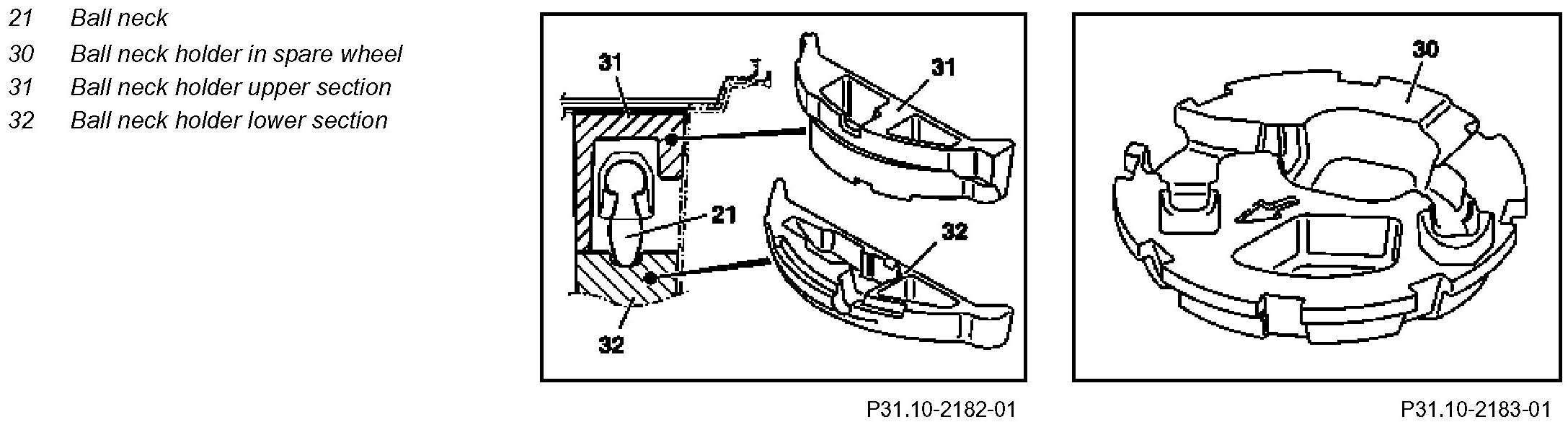

Component Identification:

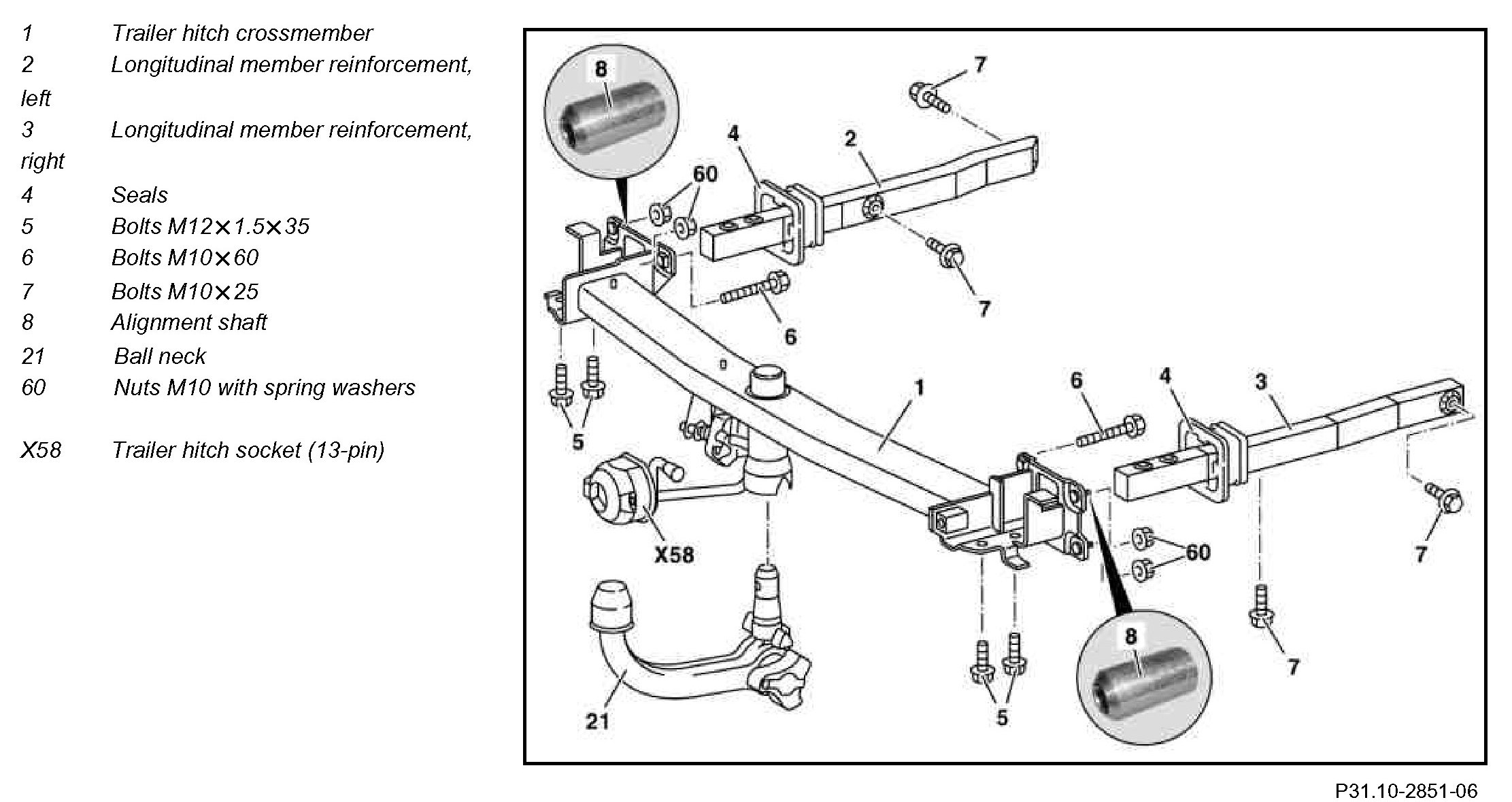

Component Identification:

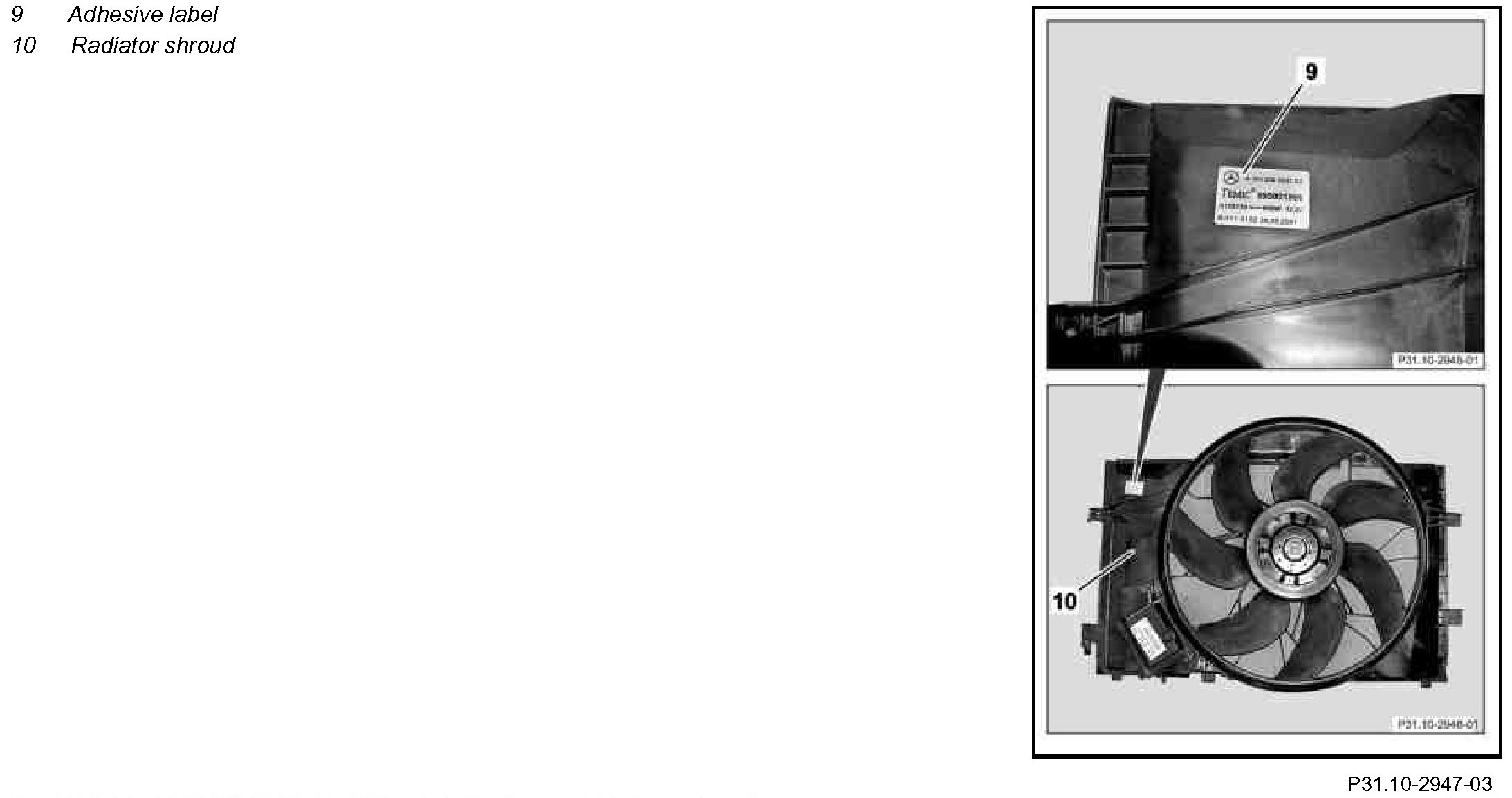

Component Identification:

Modification Notes:

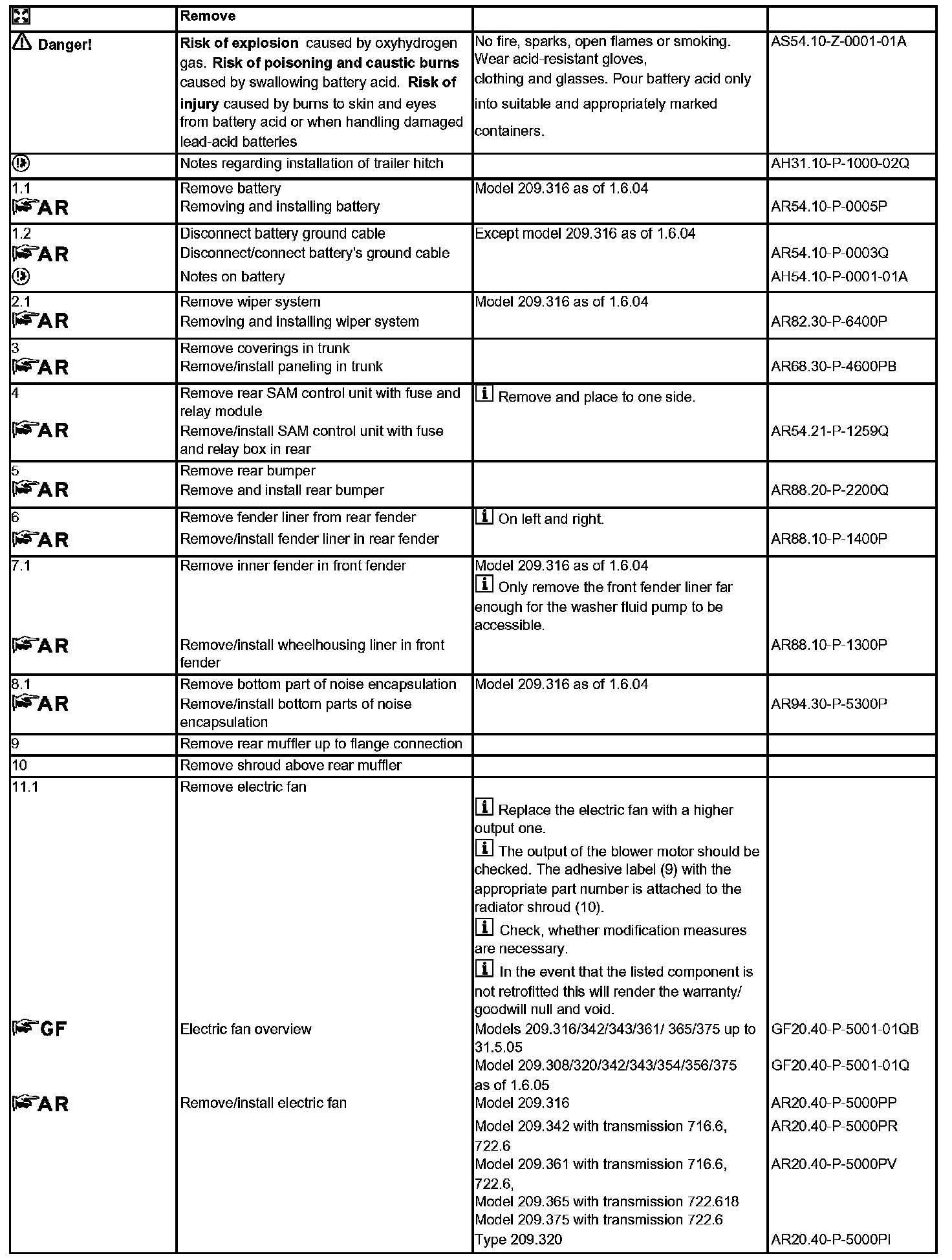

Steps 1.1 - 11.1:

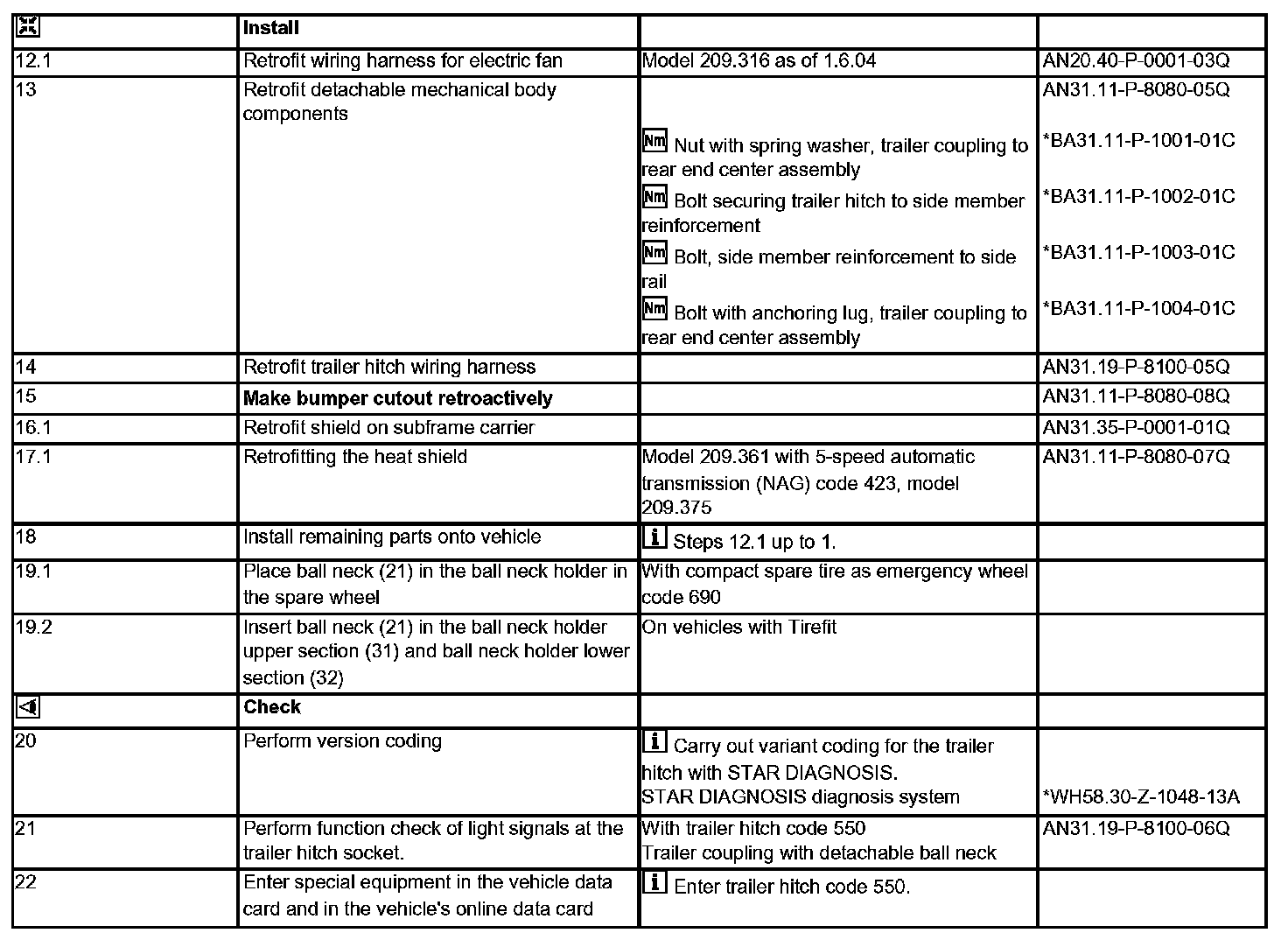

Steps 12.1 - 22:

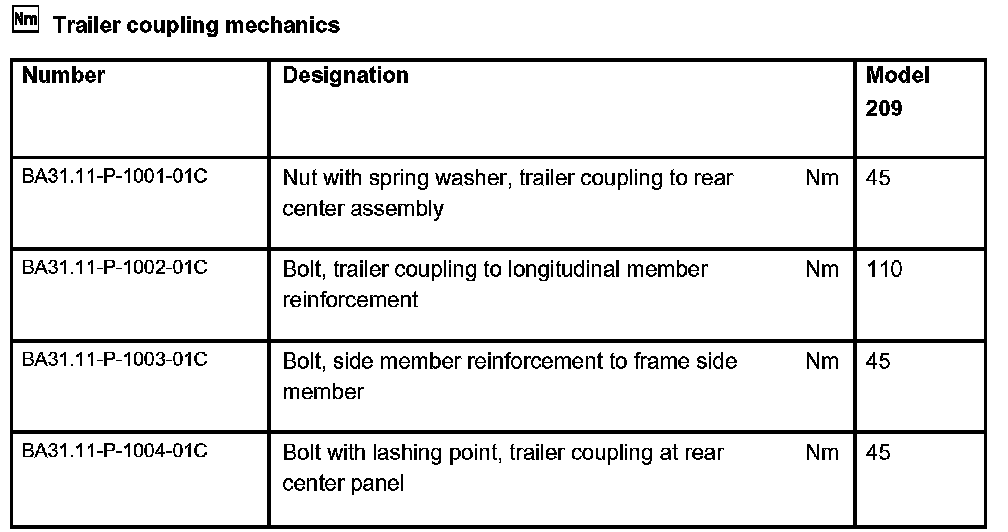

Trailer Coupling Mechanics:

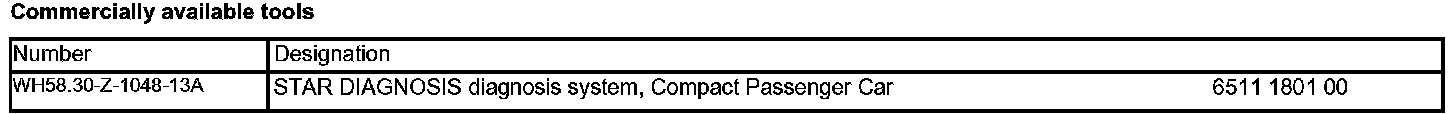

Commercially Available Tools:

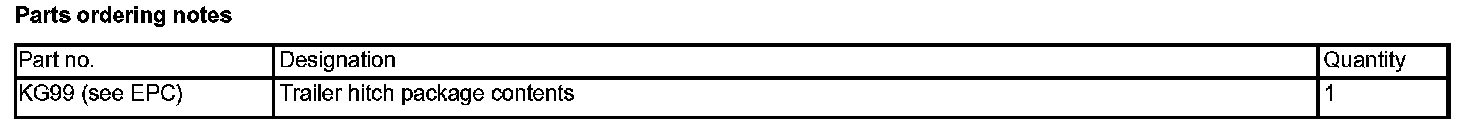

Parts Ordering Notes:
