AR64.20-P-0010QBS Remove/Install Strut Tower Brace
AR64.20-P-0010QBS Remove/Install Strut Tower Brace
AR64.20-P-0010QBS Remove/Install
Strut Tower Brace
- with CODE (P98) Black Series

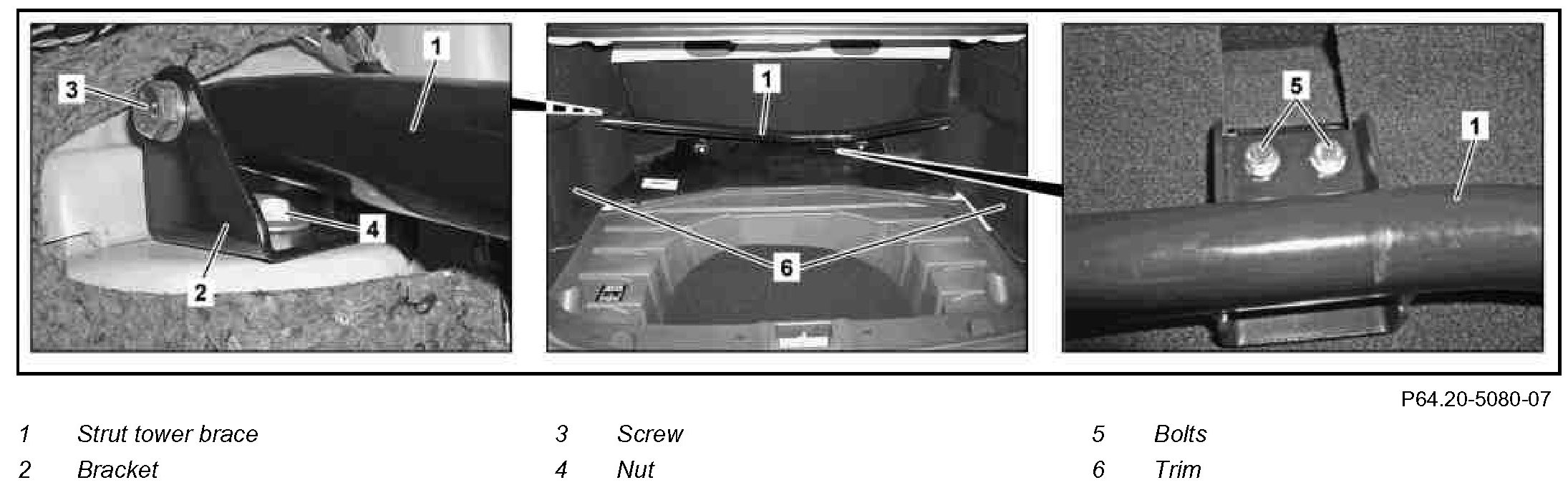

Component Identification:
Steps 1 - 5:

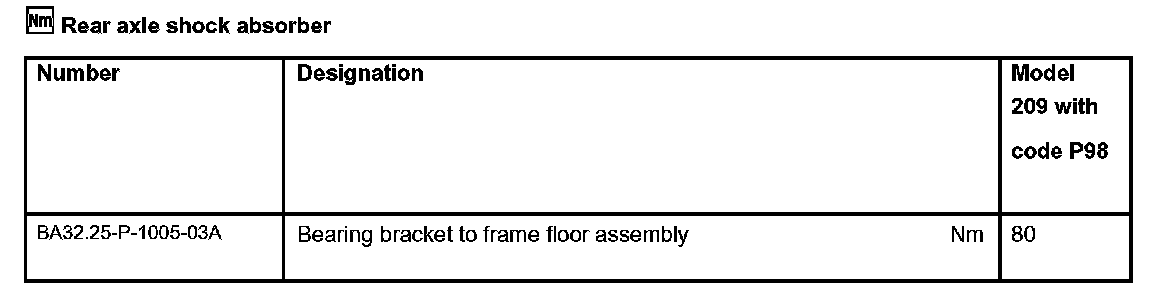

Rear Axle Shock Absorber:

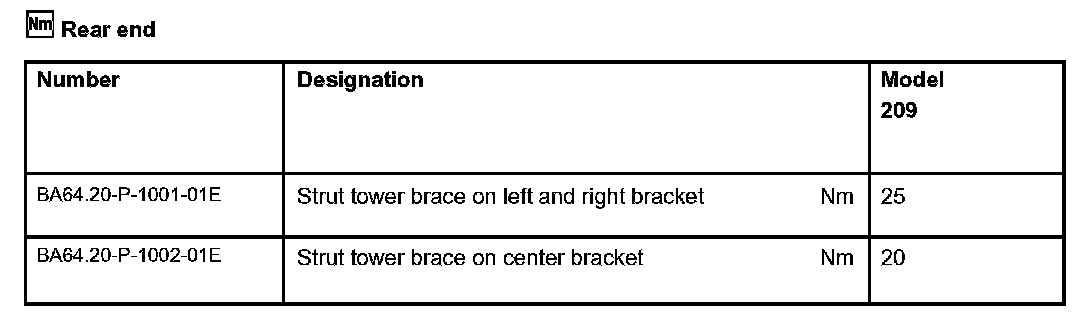

Rear End:
