Mercedes Benz
>>
2004
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Fender
>>
Front Fender
>>
Front Fender Liner
>>
Service and Repair
Front Fender Liner: Service and Repair
AR88.10-P-1300P Remove/install Inner
Fender
In Front Fender

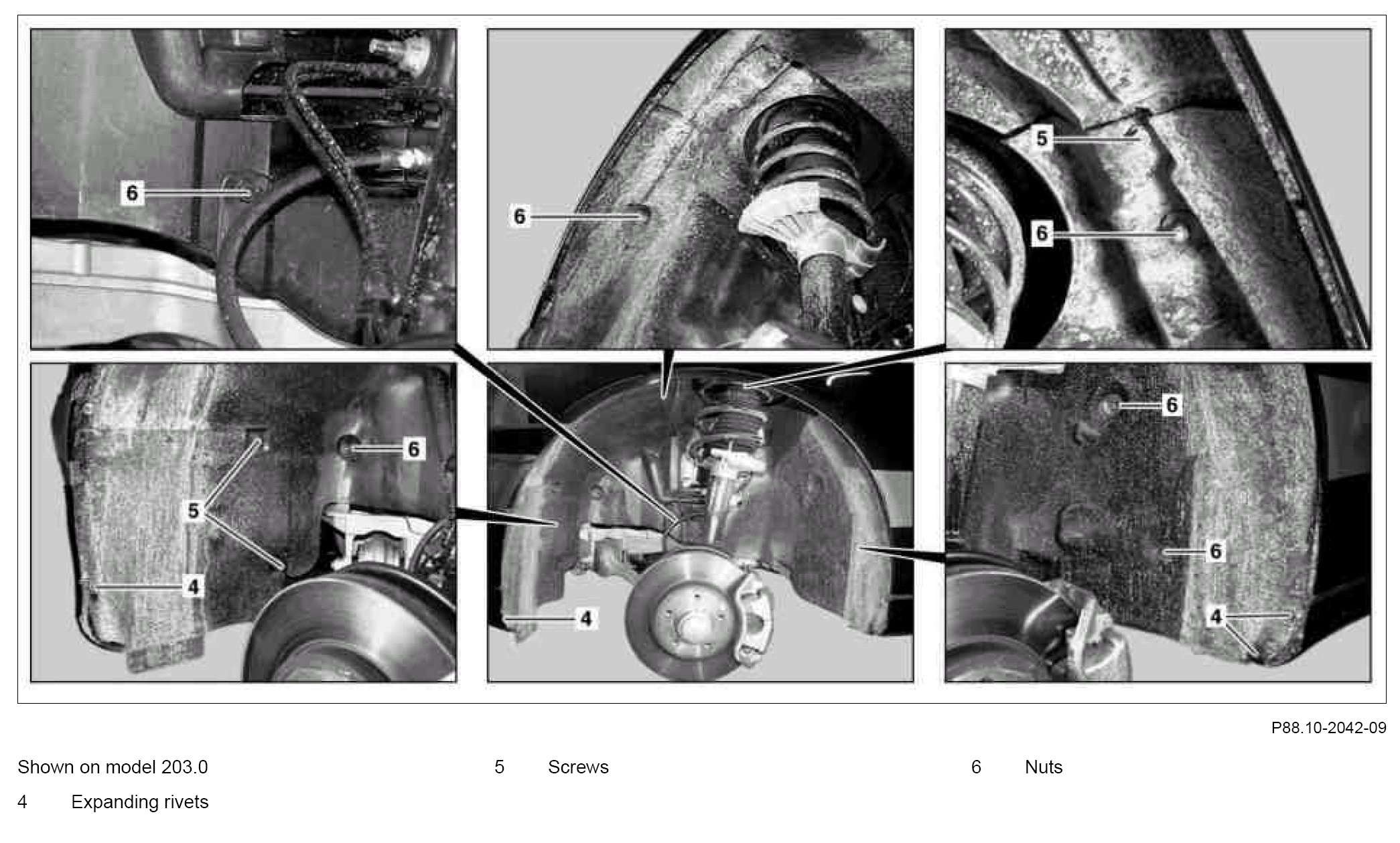

Component Identification:
Component Identification:

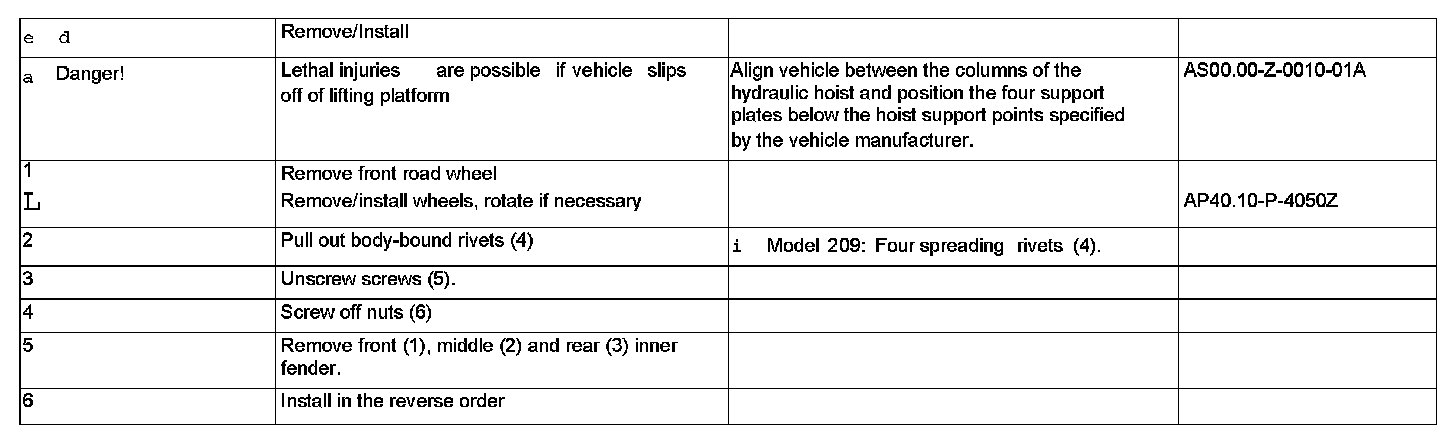

Steps 1 - 6:
