Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Hood >> Specifications

Hood: Specifications



BA88.40-P-1000-01A Engine Hood


Modification Notes:

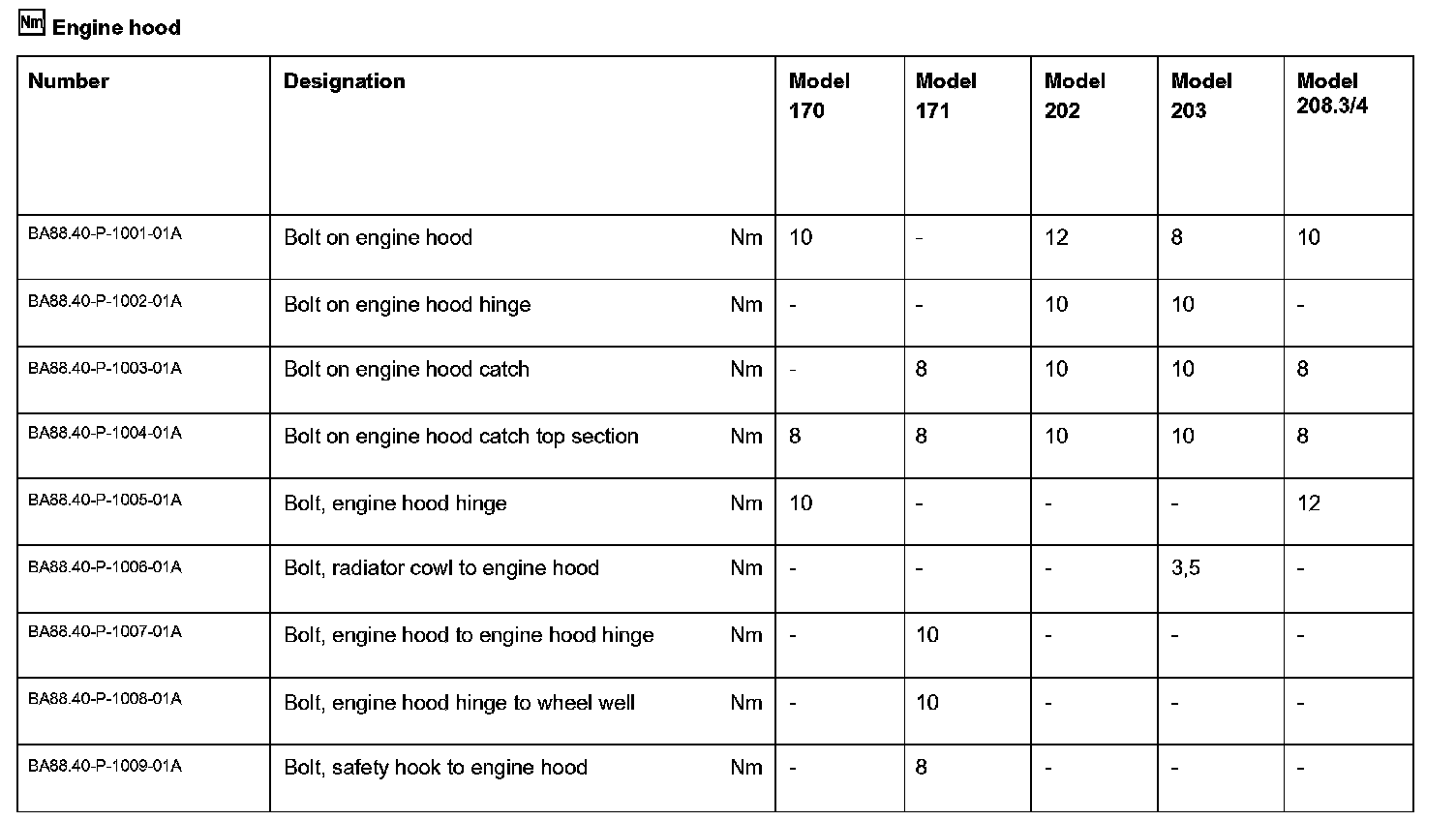

Engine Hood:

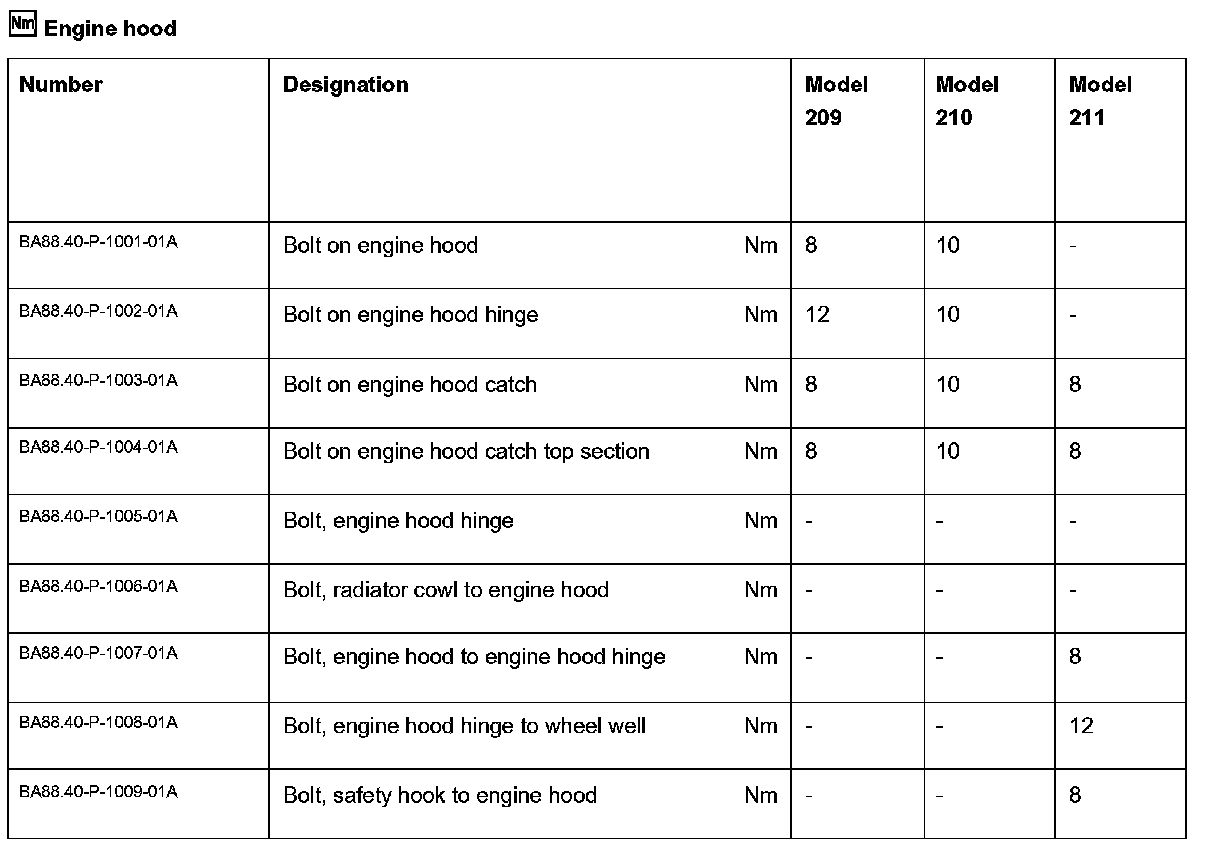

Engine Hood:
