Fuel Door Release Actuator: Service and Repair

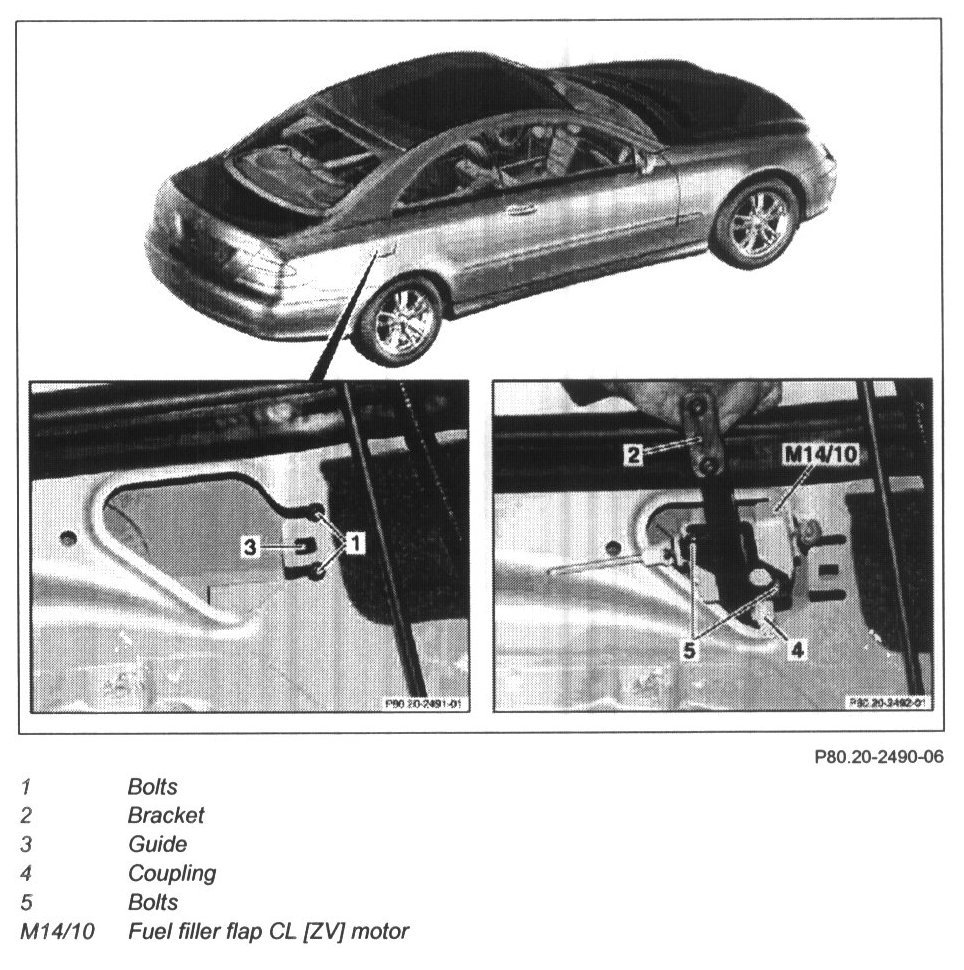

AR80.20-P-2300Q Remove/Install CL Element Fuel Filler Flap







1 Remove paneling in trunk on right
2 Loosen screws (1)
3 Remove mount (2) with fuel filler flap central actuating motor (M14/10)

NOTE:
Installation: Feel guide duct and insert locking bolt of fuel filler flap CL [ZV] motor (M14/10) into guide duct.

Guide (3) at bracket (2) must be visible in body opening.
4 Disconnect coupling (4)
5 Unscrew bolts (5).
6 Remove fuel filler flap CL [2V] motor (M14/10) from bracket (2)
7 Install in the reverse order
