FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2004
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Bumper
>>
Rear Bumper
>>
Rear Bumper Reinforcement
>>
Service and Repair
Rear Bumper Reinforcement: Service and Repair
AR88.20-P-2250Q Remove/Install Carrier For Rear
Bumper
Component Identification:

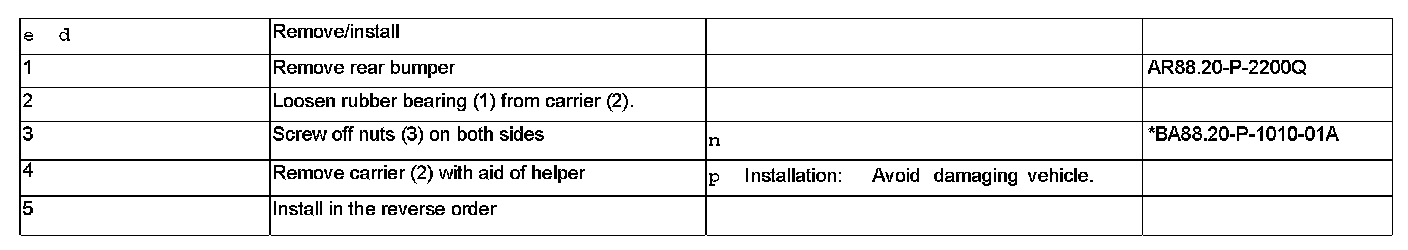

Steps 1 - 5:

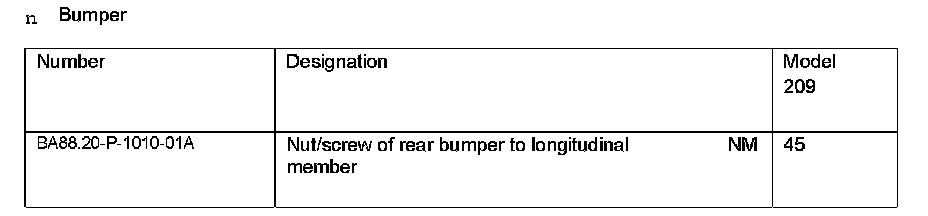

Bumper:
