AR54.21-P-1262Q Remove/Install Upper Control Panel Control Unit



AR54.21-P-1262Q Remove/Install Upper Control Panel Control Unit

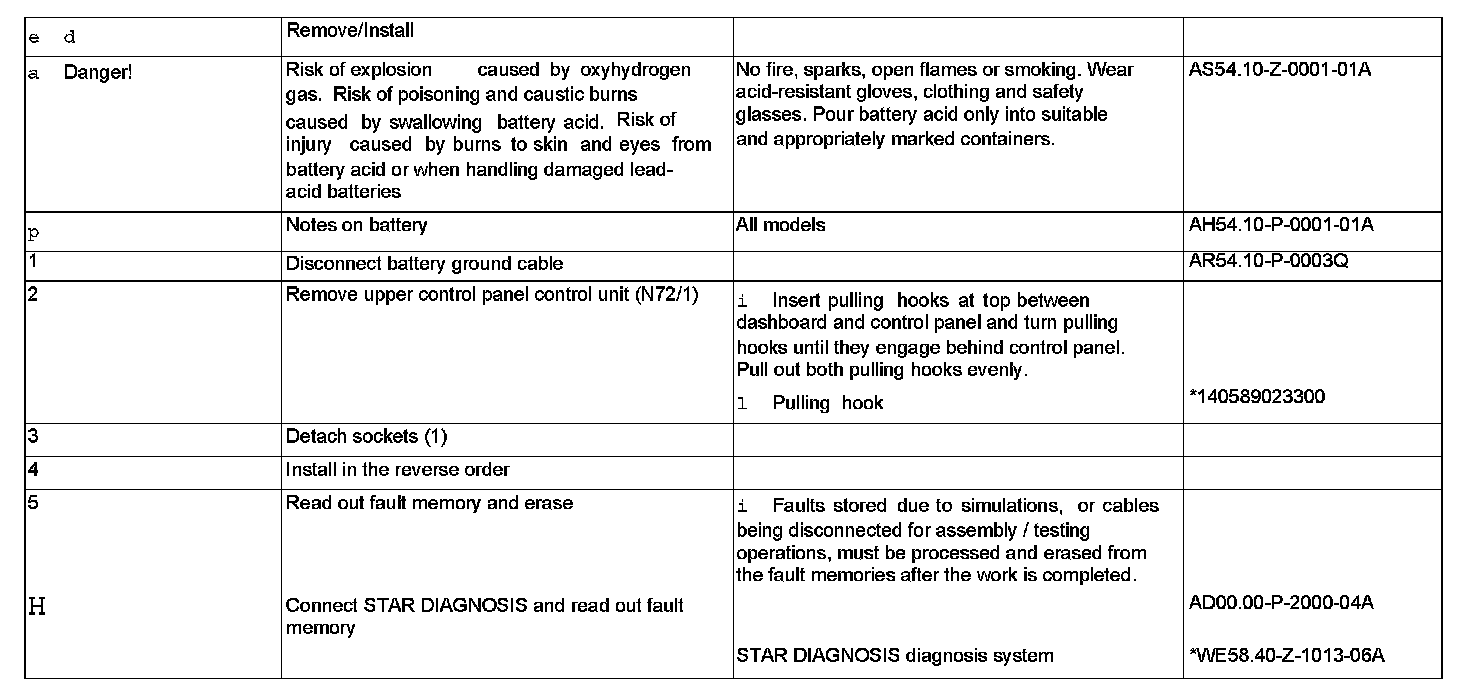

Steps 1 - 5:

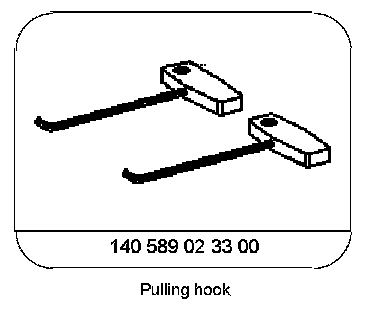

Special Tools:




Special Tools:




Workshop Equipment/MB Testers:
