GF54.21-P-4105-03QA Upper Control Panel Control Unit, Design



GF54.21-P-4105-03QA Upper Control Panel Control Unit, Design
- as of 1.6.04 up to 31.8.04

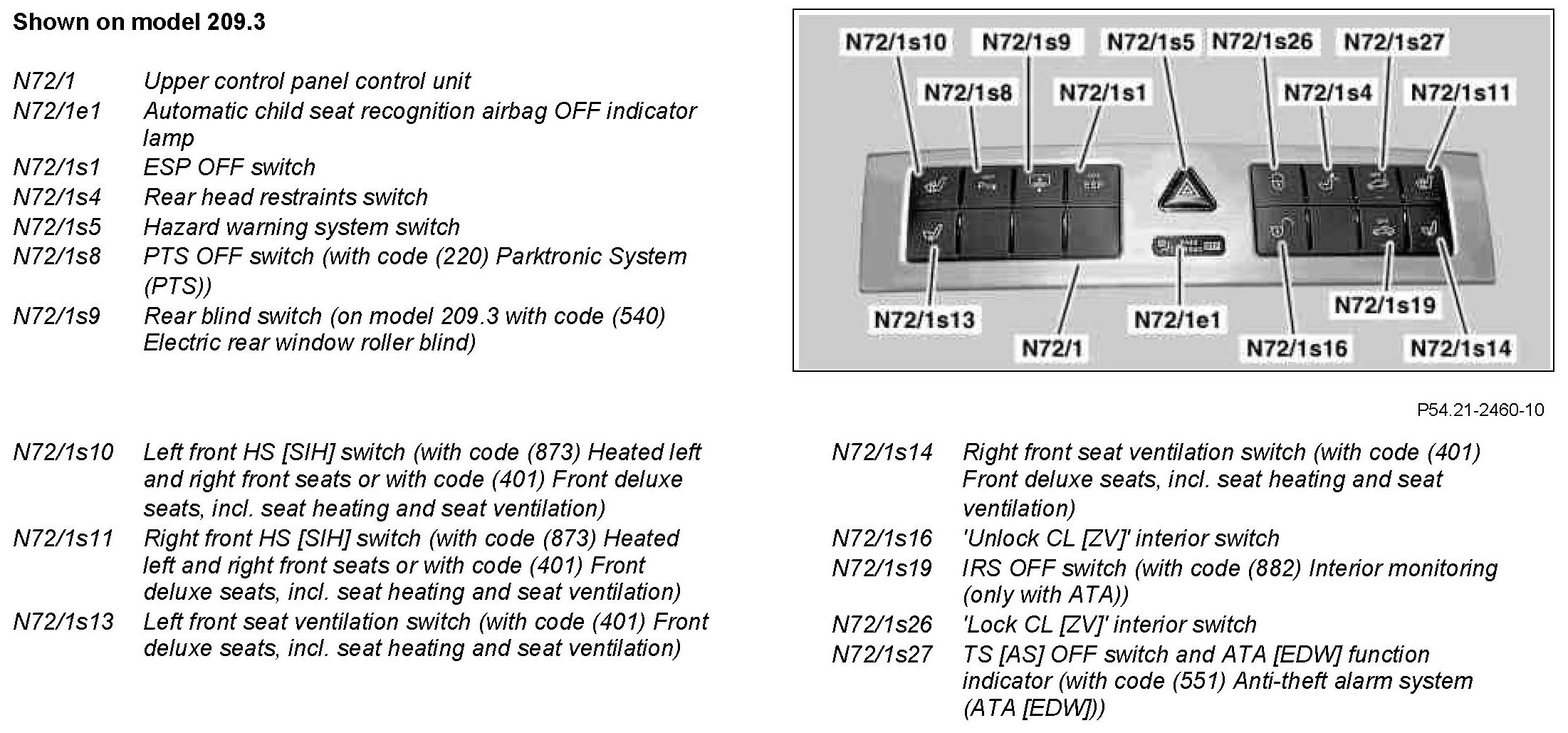

Component Identification:
