AR31.19-P-1350QB Remove/Install Trailer Hitch Socket Housing



AR31.19-P-1350QB Remove/Install Trailer Hitch Socket Housing
- trailer hicth with detachable ball neck
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package

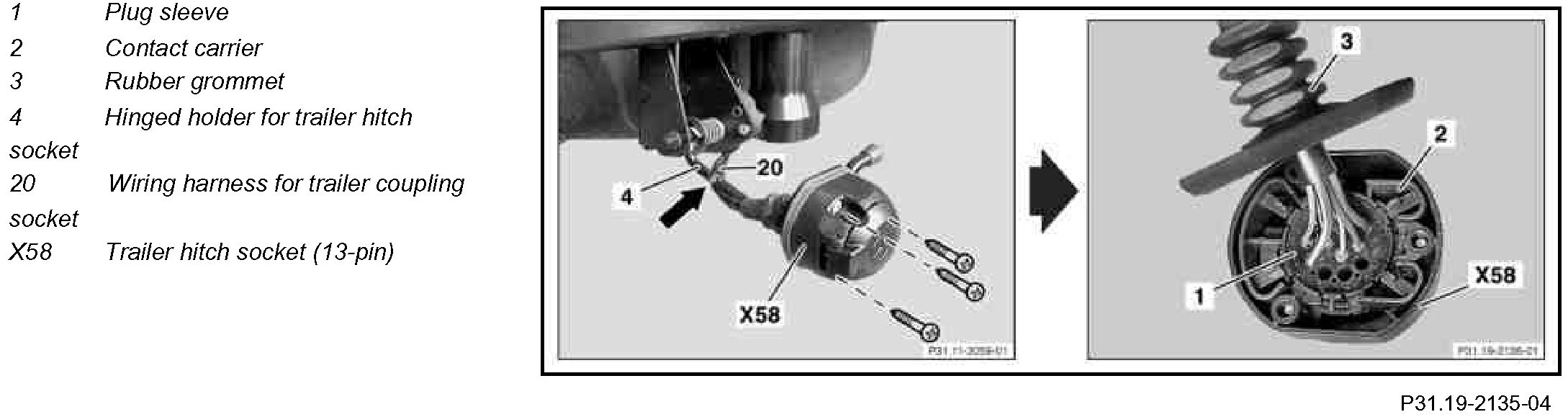

Component Identification:

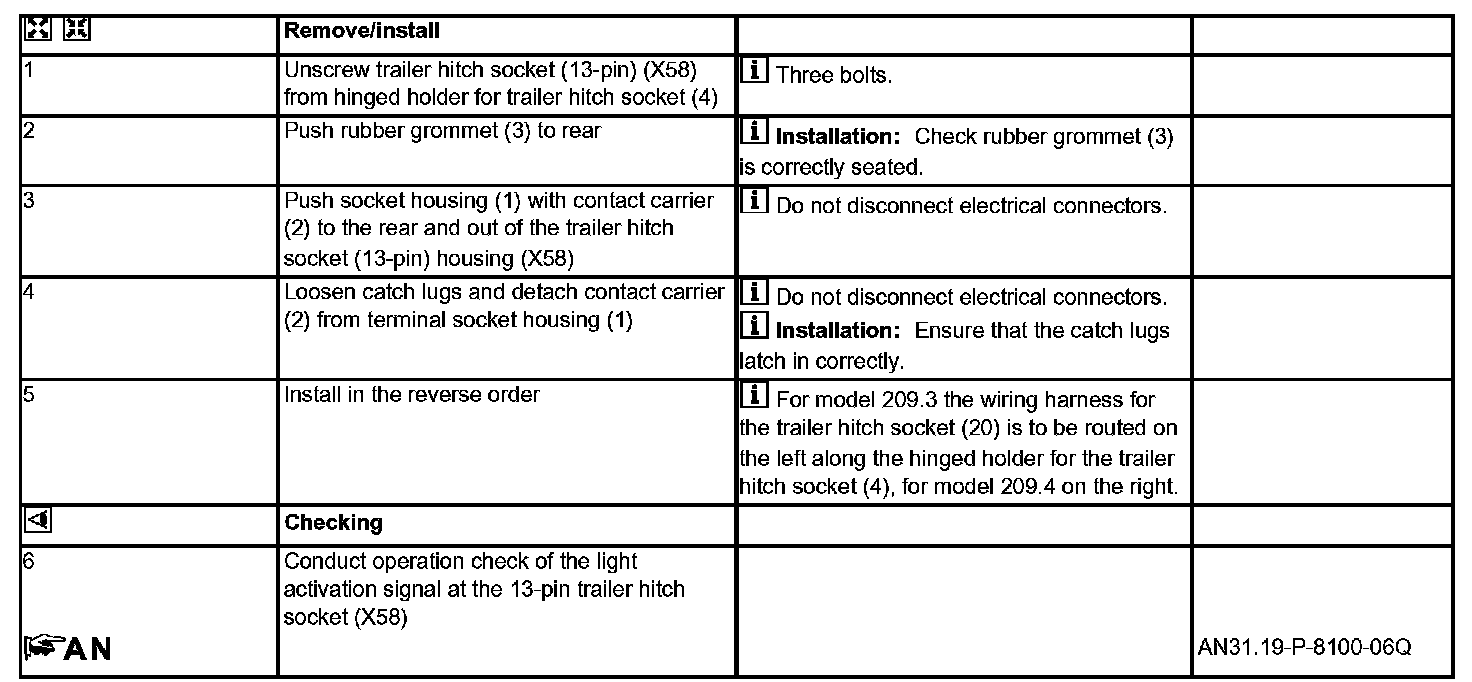

Steps 1 - 6:
