AZ82.70-P-0001-03P Retrofit Speaker

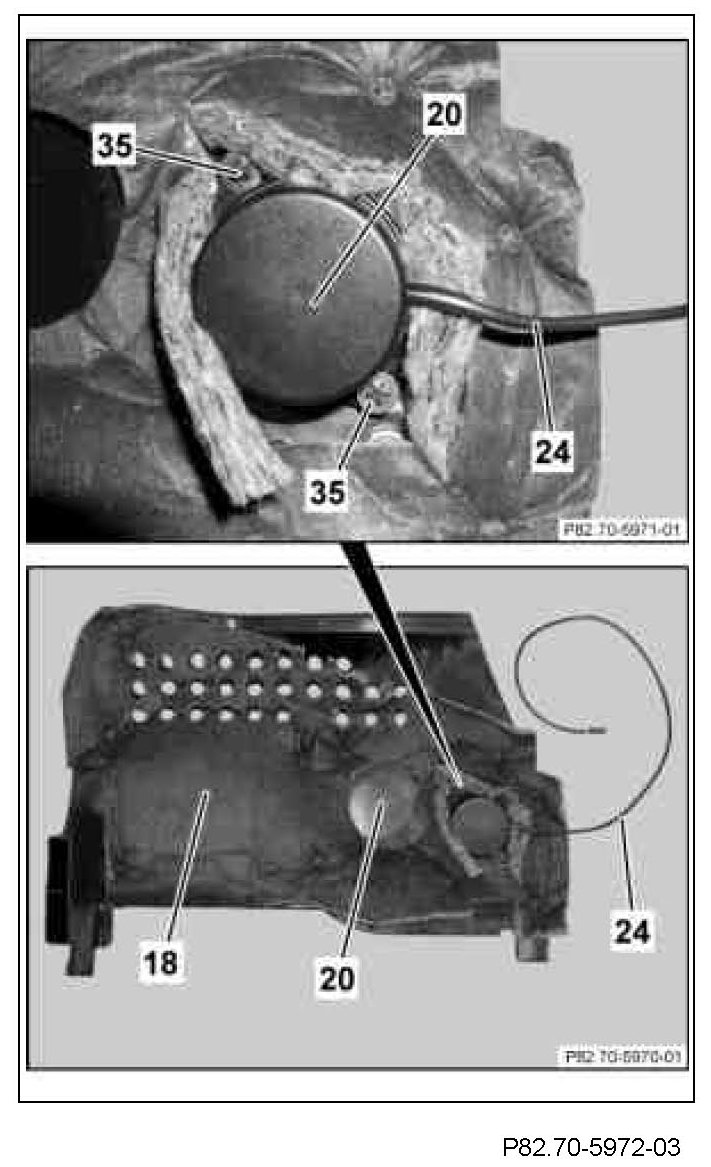

1 Fasten the hands-free system speaker (20) on the cover below the right of the instrument panel (18) with two clips (35).

As shown in the picture, the line (24) of the hands-free system speaker (20) must be routed to the right.







2 Contact speaker connector (29) of the wiring harness (24) with the speaker connector (5) of the microphone branch-off line (8).


Component Identification:
