AZ82.60-P-0006Q Retrofit Satellite Radio (SDAR)



AZ82.60-P-0006Q Retrofit Satellite Radio (SDAR)
- with CODE (810) Sound system

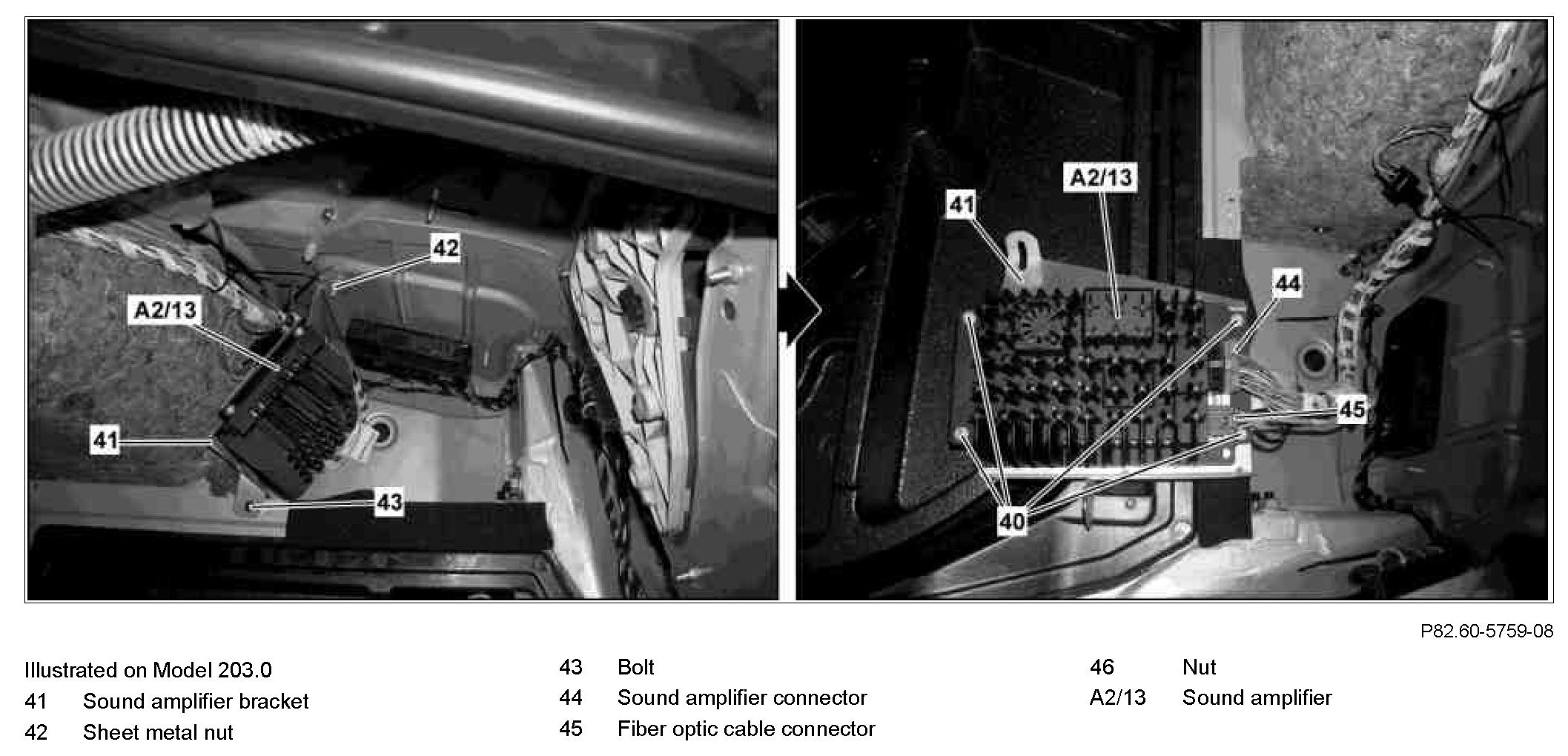

Component Identification:




Component Identification:

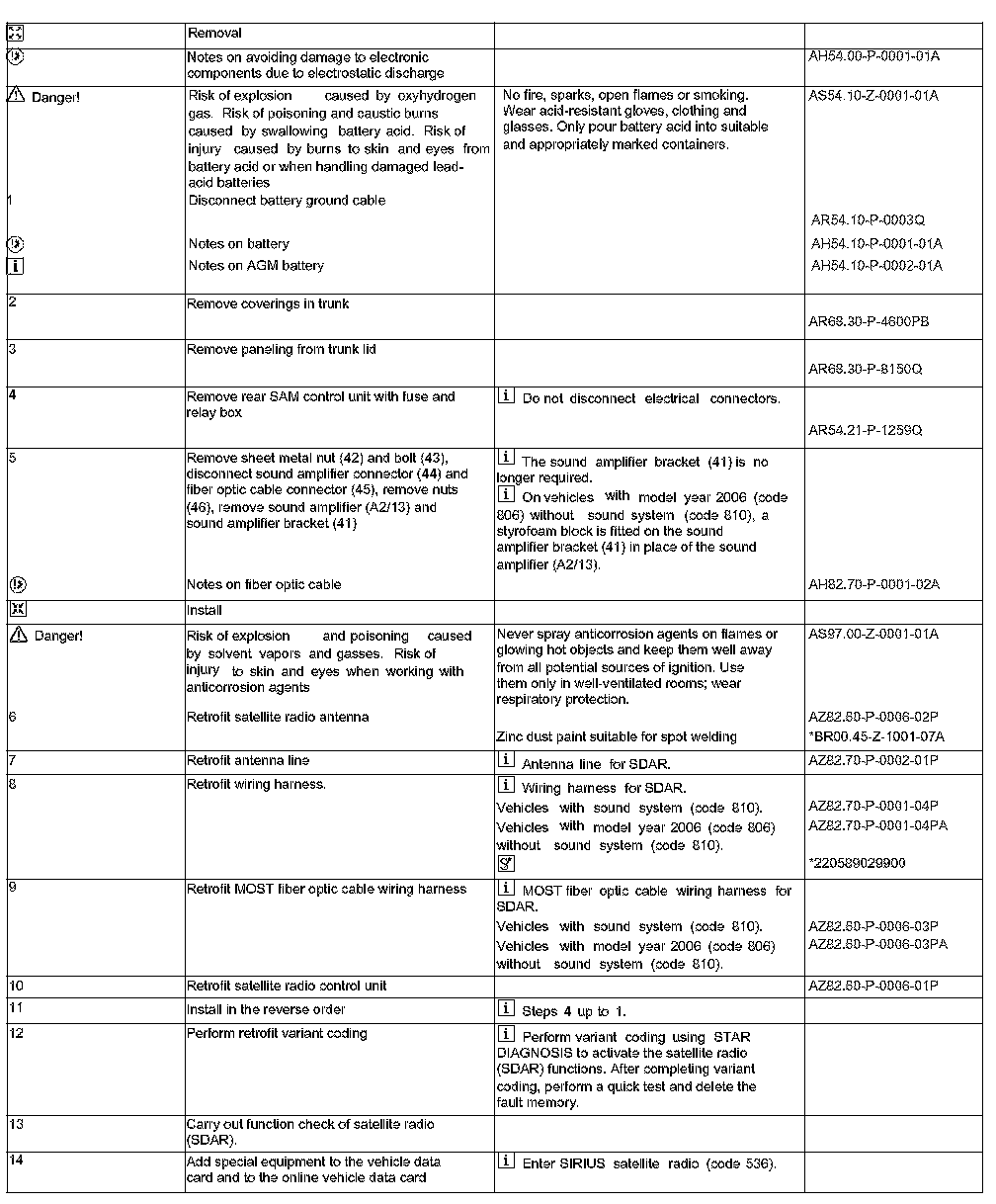

Steps 1 - 14:

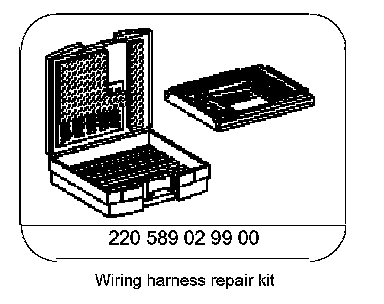

Special Tools:

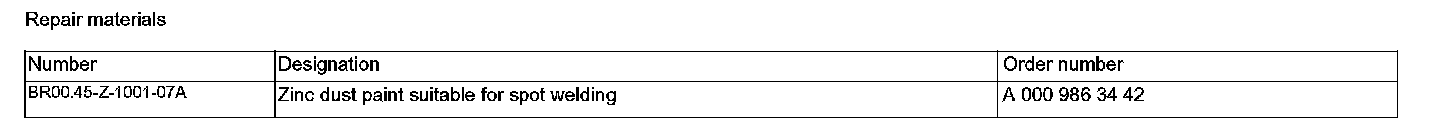

Repair Materials:

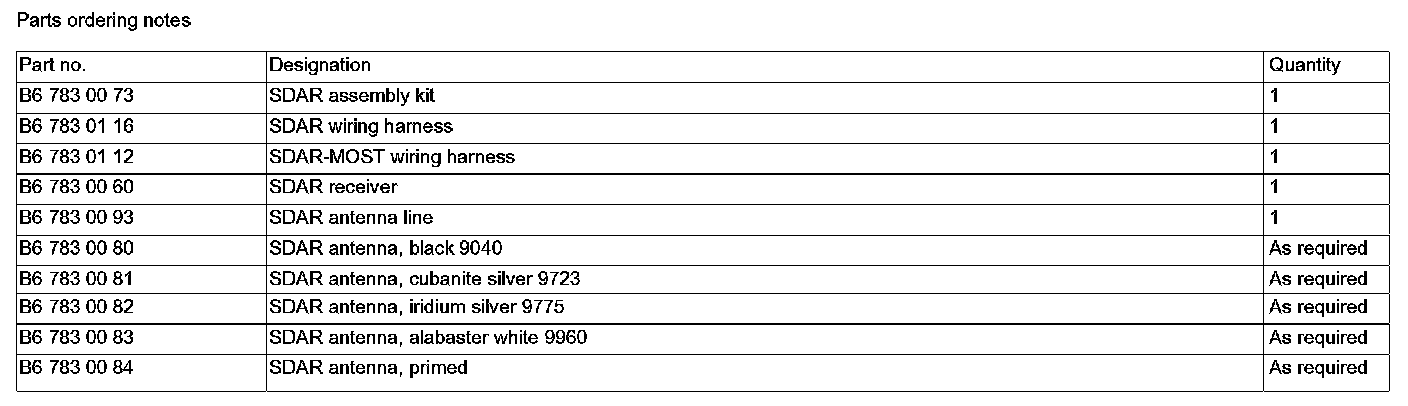

Parts Ordering Notes:
