GF82.60-P-3115Q Radio control panel, location/task/design/function
GF82.60-P-3115Q Radio control panel, location/task/design/function

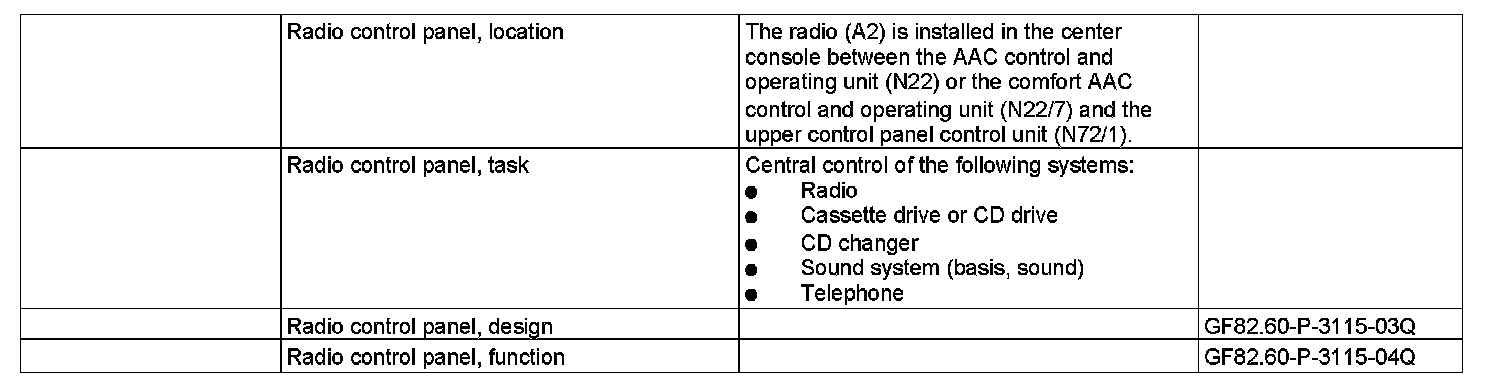

GF82.60-P-3115Q Radio Control Panel, Location/Task/Design/Function

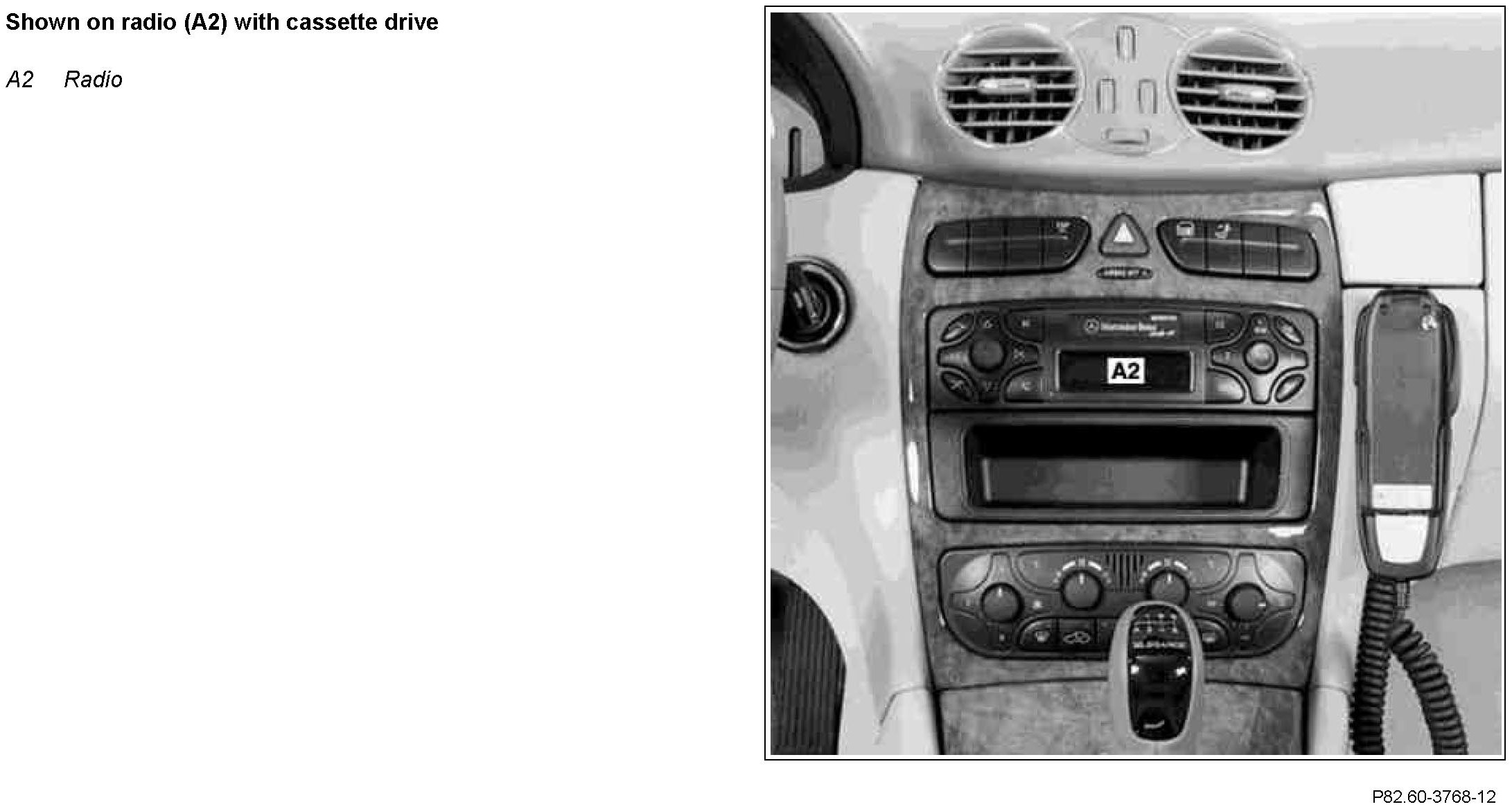

Component Identification:
