AN82.64-P-0001-03QB Retrofit Power Supply Wiring Harness

AN82.64-P-0001-03QB Retrofit Power Supply Wiring Harness
- with CODE (352) COMAND operating and display system

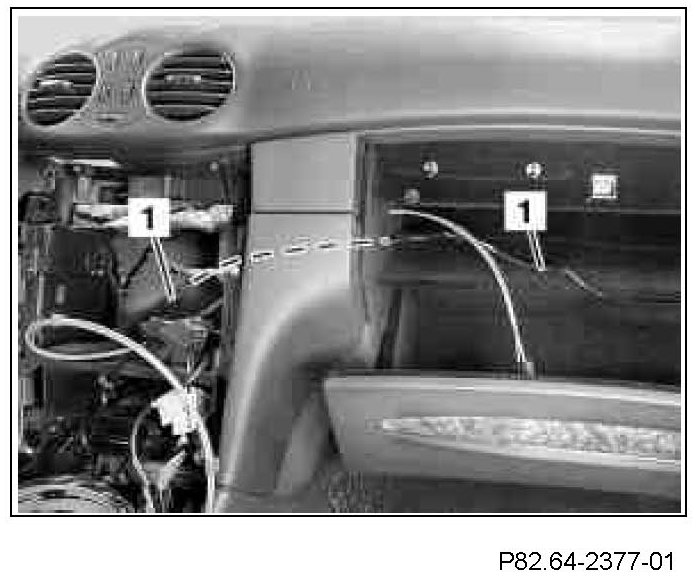

The CD player with changer voltage supply wiring harness (1) is tied back behind the radio or COMAND.

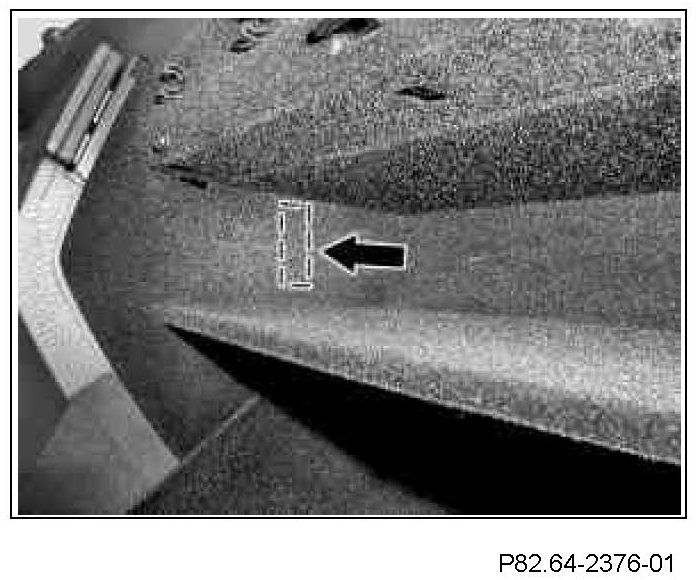

1 Use a knife to cut out the perforation in the glove compartment (see arrow).







2 Route the CD player with changer voltage supply wiring harness (1) behind the instrument panel carrier into the glove compartment.
