Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Global Positioning System >> Description and Operation >> GF82.62-P-3100Q Sound Amplifier, Location/Task/Design/Function

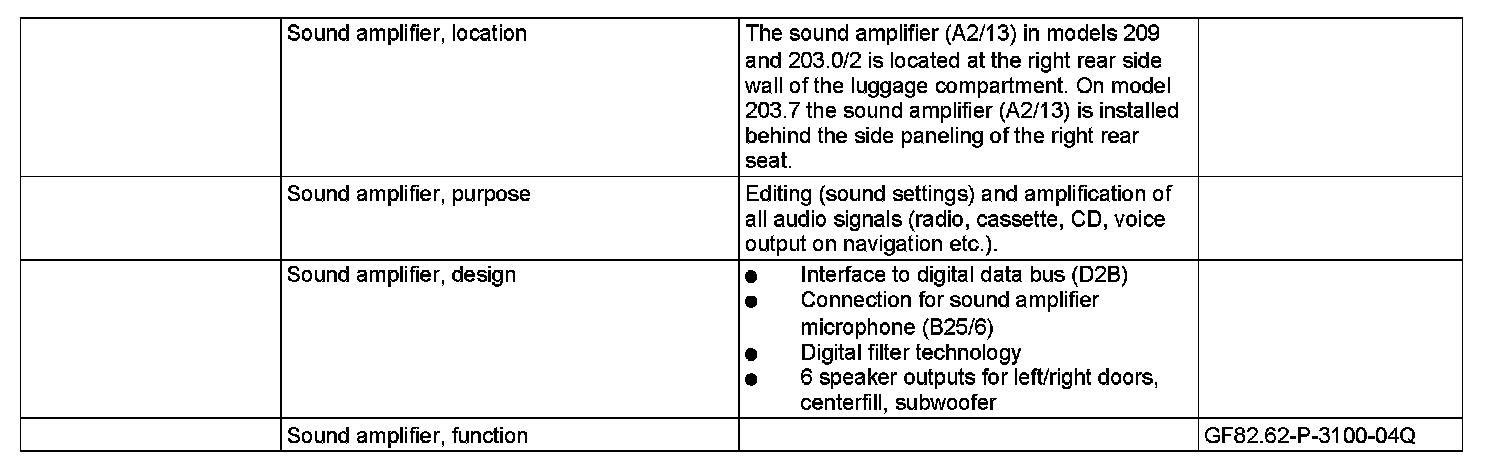

GF82.62-P-3100Q Sound Amplifier, Location/Task/Design/Function



GF82.62-P-3100Q Sound Amplifier, Location/Task/Design/Function
- with CODE (810) Sound system

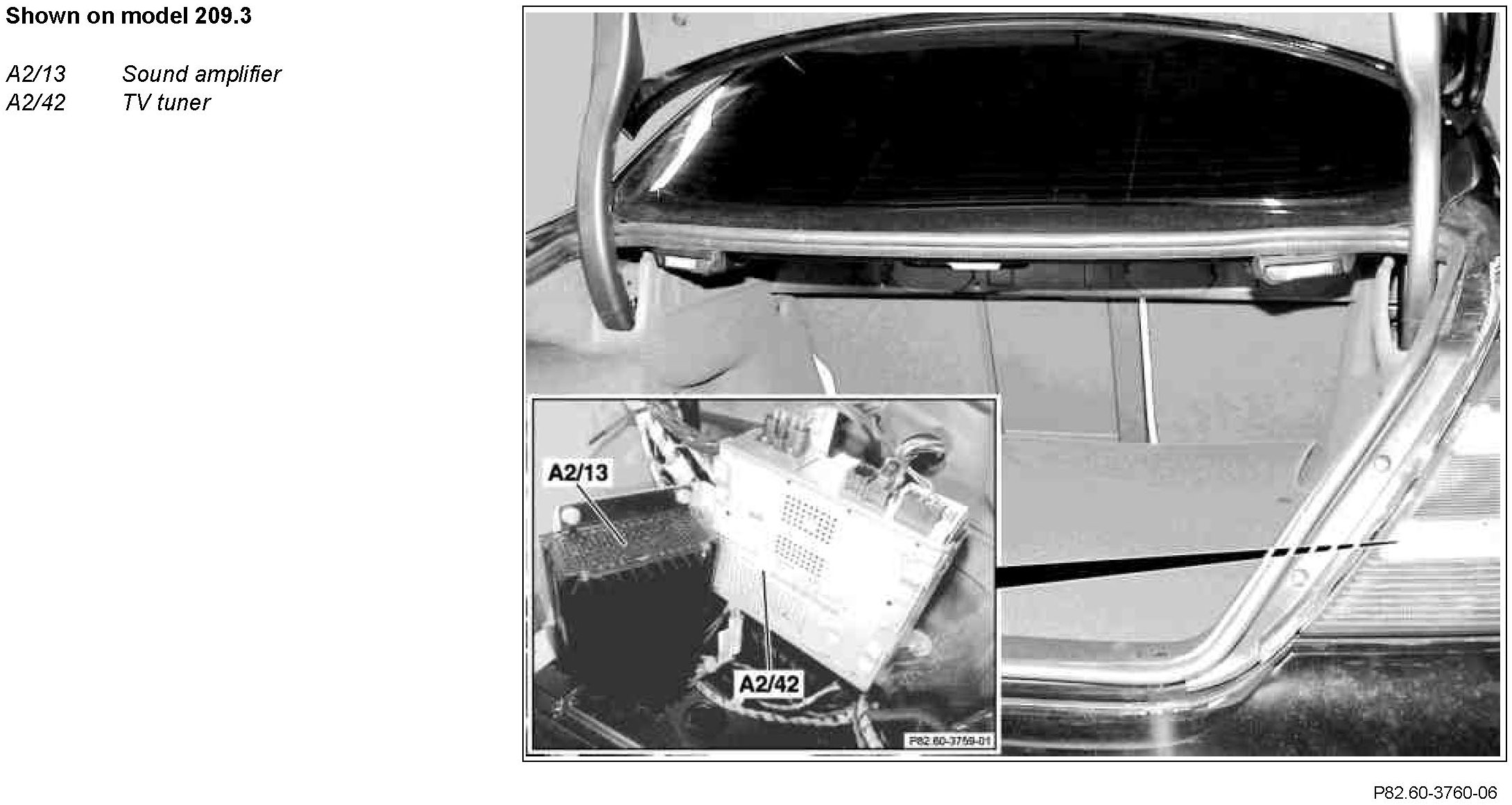

Component Identification:
