GF54.65-P-4000Q Forward Travel, Function

GF54.65-P-4000Q Forward Travel, Function
- with CODE (220) Parktronic system (PTS)

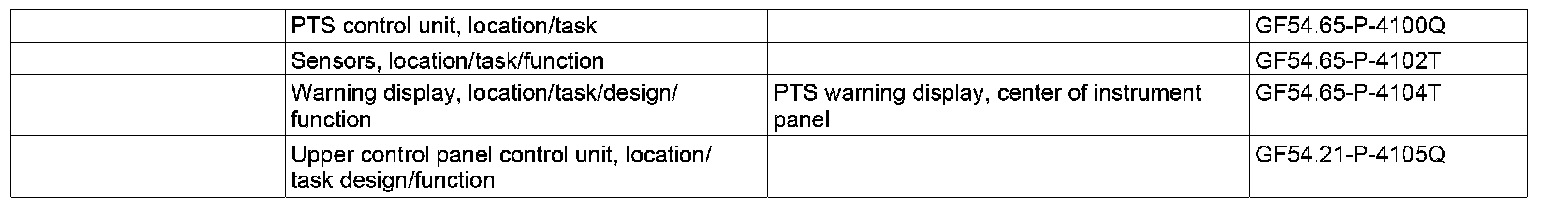

Component Identification:

Function requirements
^ Circuit 15 ON
^ Vehicle speed ≤16 km/h
^ Parking brake not operated
^ Reverse gear not engaged (on transmission 716)
^ Selector lever in position "D" (with transmission 722)

Function
Area A and B in front of the vehicle is monitored when driving forward.

The front bumper PTS sensor unit (A42) detects obstacles:
^ in area A (15 cm to 60 cm)
^ in area B (20 cm to 100 cm)

Warning information
The Parktronic control unit actuates the center instrument panel PTS warning indicator (A44/4). Depending on the distance to the obstacle, visual and, if necessary, acoustic warning information is given out.

Deactivation
The Parktronic system (PTS) can be switched off and on manually via the PTS OFF switch in the upper control panel control unit, feedback takes place via an LED in the PTS OFF switch.
