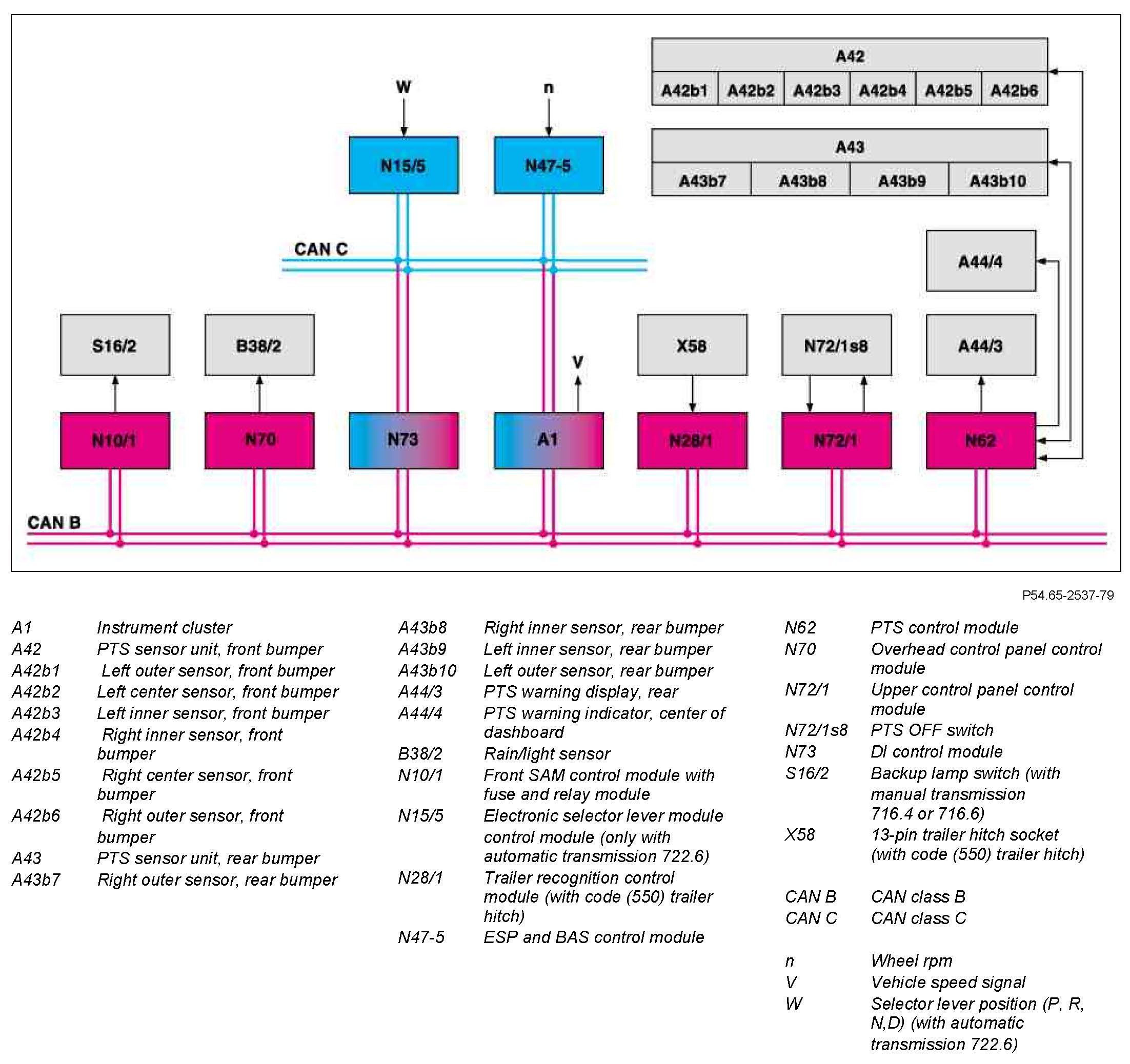

GF54.65-P-0001-01Q Parktronic System (PTS) Block Diagram



GF54.65-P-0001-01Q Parktronic System (PTS) Block Diagram
- with CODE (220a) Parktronic system (PTS)


Component Identification:
