AR82.70-P-8918QA Remove/Install Portable Cellular Telephone Mount

AR82.70-P-8918QA Remove/Install Portable Cellular Telephone Mount
- portable CTEL mount (telephone) in armrest or stowage compartment
- with CODE (854) MB portable cellular telephone







1 Remove portable CTEL

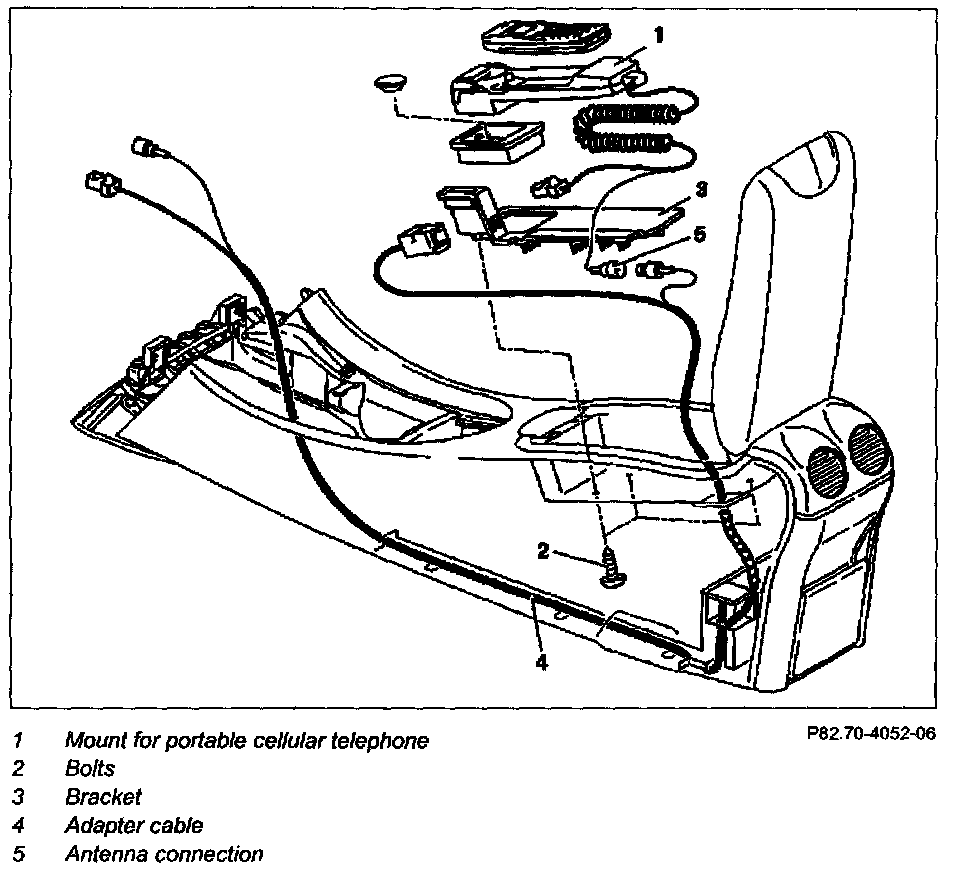

2 Unscrew screws (2) and lift off console (3)

NOTE: Three screws.

3 Unplug and unclip adapter line connector (4) and antenna connector (5)
4 Remove portable CTEL mount (1)
5 Install in the reverse order
6 Check for proper function
