AR82.62-P-7200Q Remove/Install Blocking Circuit of Rear Window Antenna

AR82.62-P-7200Q Remove/Install Blocking Circuit of Rear Window Antenna







DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.


1 Disconnect ground cable of battery
2 Remove paneling on C-pillar

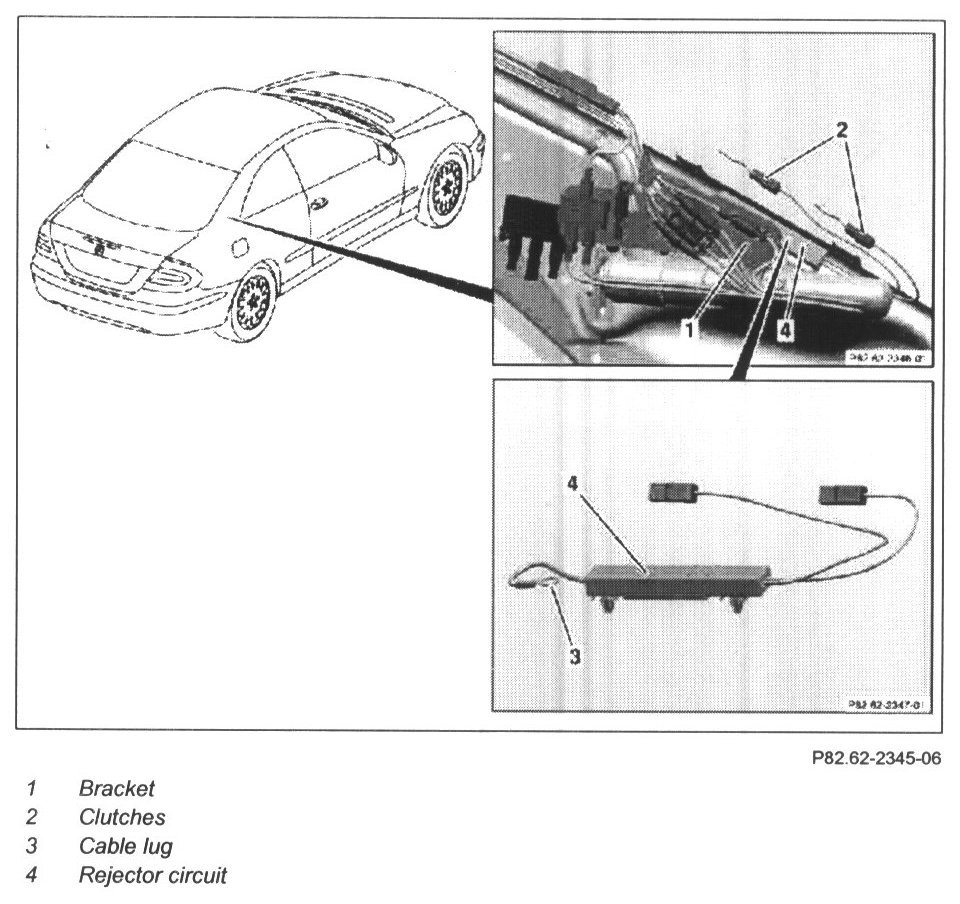

3 Unclip bracket (1)
4 Disconnect connectors (2)
5 Unscrew bolt at cable lug (3)
6 Unclip rejector circuit (4) and remove
7 Install in the reverse order
8 Perform basic programming
9 Read diagnostic trouble code memory and erase
10 Check for proper function
