GF82.85-P-3114-07QMJ Operating, Display and Control Unit, Design

GF82.85-P-3114-07QMJ Operating, Display And Control Unit, Design
- with CODE (498) Japanese version

Component Identification:

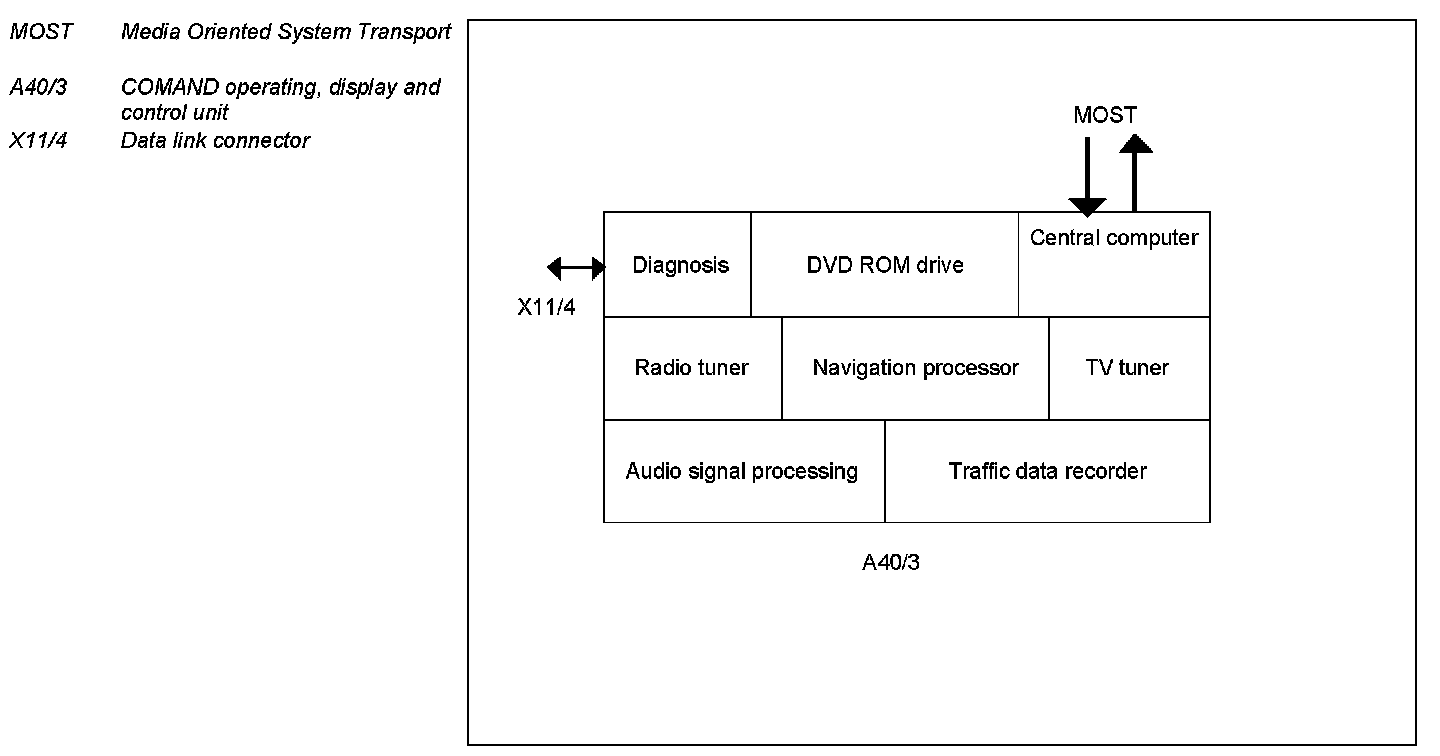

The following are integrated in the COMAND operating, display and control unit (A40/3):
^ Graphic compatible color liquid crystal display (LCD)
^ Navigation processor
^ DVD ROM drive
^ Traffic data recorder
^ Radio tuner for receiving traffic information
^ Audio amplifier
^ TV tuner

The COMAND, operating, display and control unit (A40/3) features the following digital interfaces:
^ Data link connector (X11/4 )
^ Media Oriented System Transport (MOST)
