GF82.85-P-3114-07QM Operating, Display Unit With Control Unit, Design

GF82.85-P-3114-07QM Operating, Display Unit With Control Unit, Design
- with CODE (527) COMAND APS (with navigation)

Component Identification:

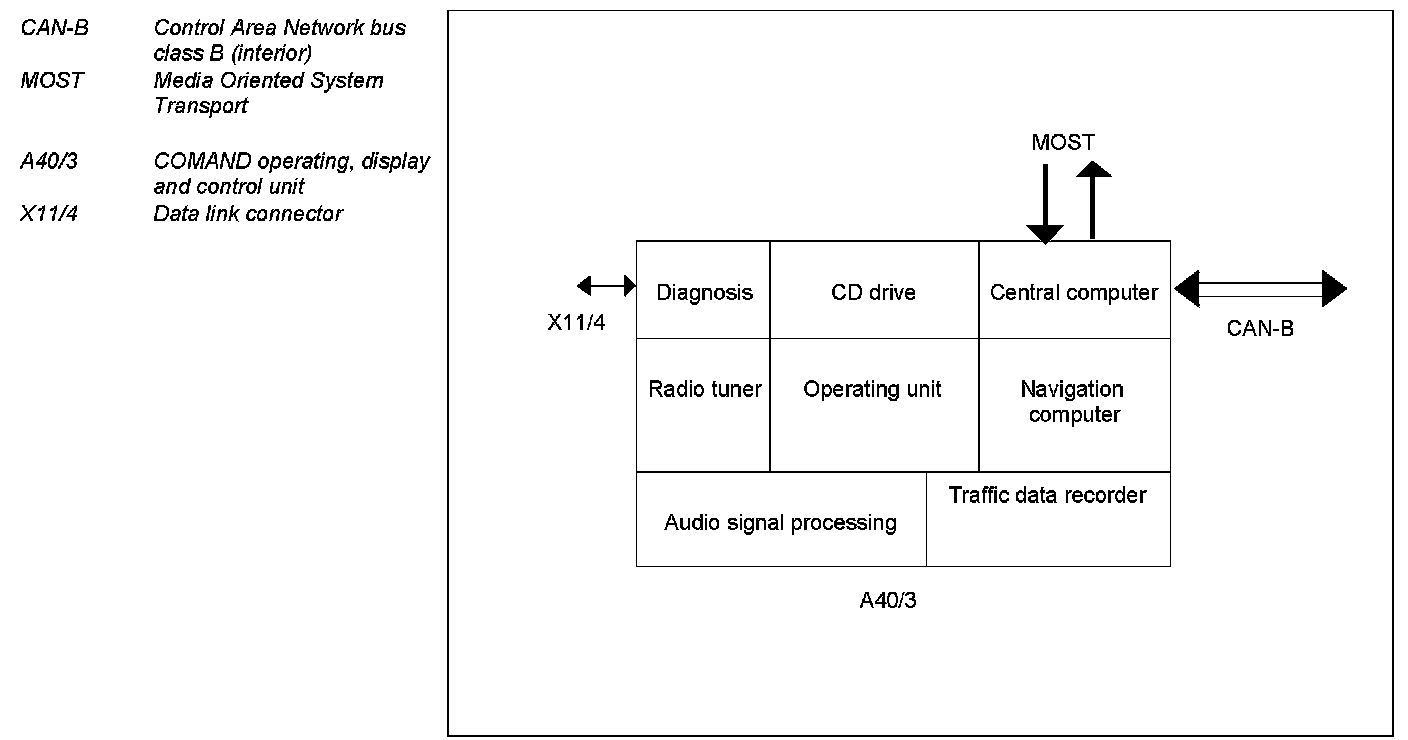

The following are integrated in the COMAND operating, display and control unit (A40/3):
^ Liquid crystal display (LCD) color screen with graphics capabilities
^ Navigation processor with global positioning system (GPS) receiver and yaw rate sensor
^ Digital versatile disk (DVD)-ROM drive for playing audio CDs and for loading navigation data
^ Traffic data memory
^ Radio tuner
^ Audio amplifier

The COMAND operating, display and control unit (A40/3) has the following digital interfaces:
^ Controller area network bus, class B (interior compartment) (CAN B)
^ Media Oriented System Transport (MOST)
^ Data link connector (X11/4)
