GF82.85-P-3114-07P Operating, Display Unit With Control Unit, Design

GF82.85-P-3114-07P Operating, Display Unit With Control Unit, Design
- with CODE (352a) COMAND operating and display system
- except CODE (491) U.S. system
- except CODE (498) Japanese version

Component Identification:

Integrated into the COMAND operating, display and control unit (A40/3) are:
^ Graphical LCD color display
^ Navigation processor with GPS receiver and gyrosensor
^ CD drive for alternately playing Audio CDs and loading navigation data
^ Traffic data memory
^ 2-tuner radio
^ Audio amplifier

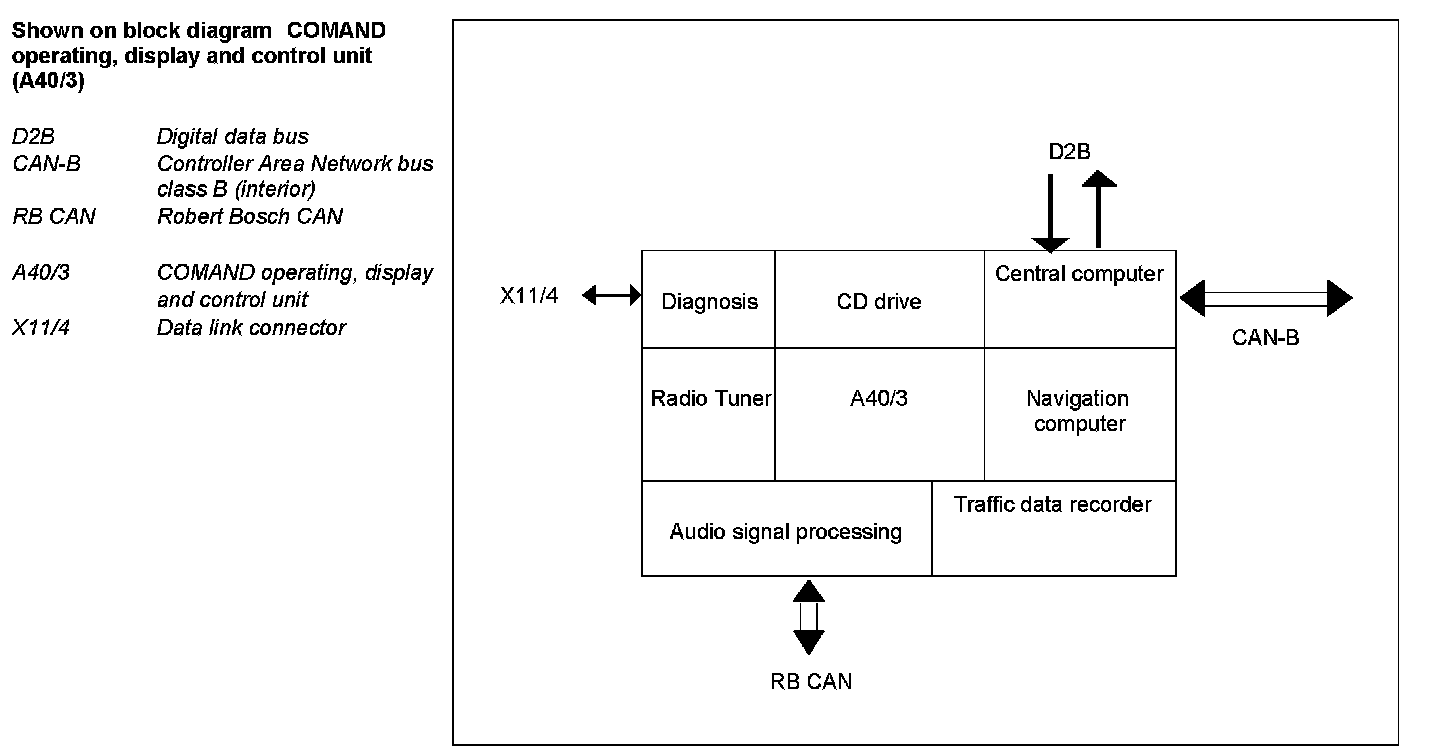

The COMAND, operating, display and control unit (A40/3) features the following digital interfaces:
^ Controller Area Network bus class B (interior compartment) ( CAN B)
^ Digital databus (D2B)
^ Diagnosis interface
^ Robert Bosch CAN (RB CAN)
