Refrigerant Pressure Sensor / Switch: Locations

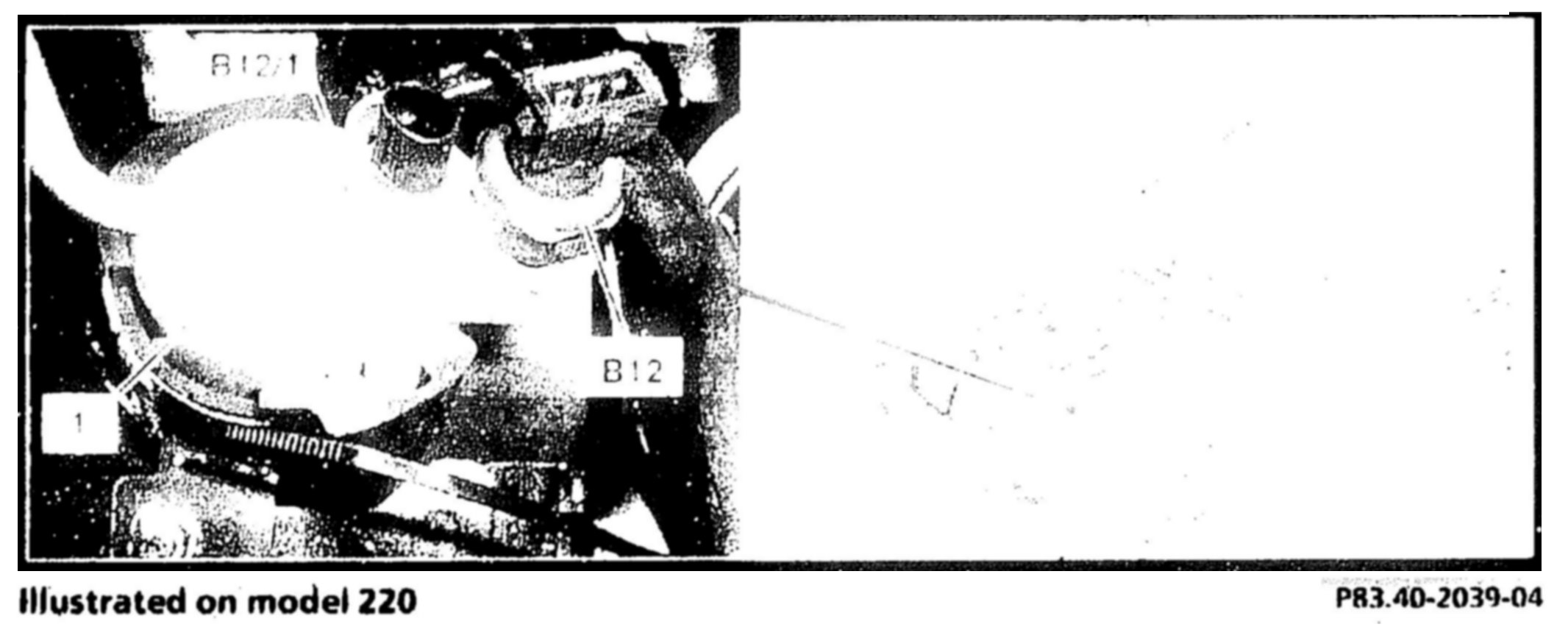

Illustrated On Model 220:






The refrigerant pressure sensor (B12) is located on the receiver/drier (1) in the engine compartment at the front left.
