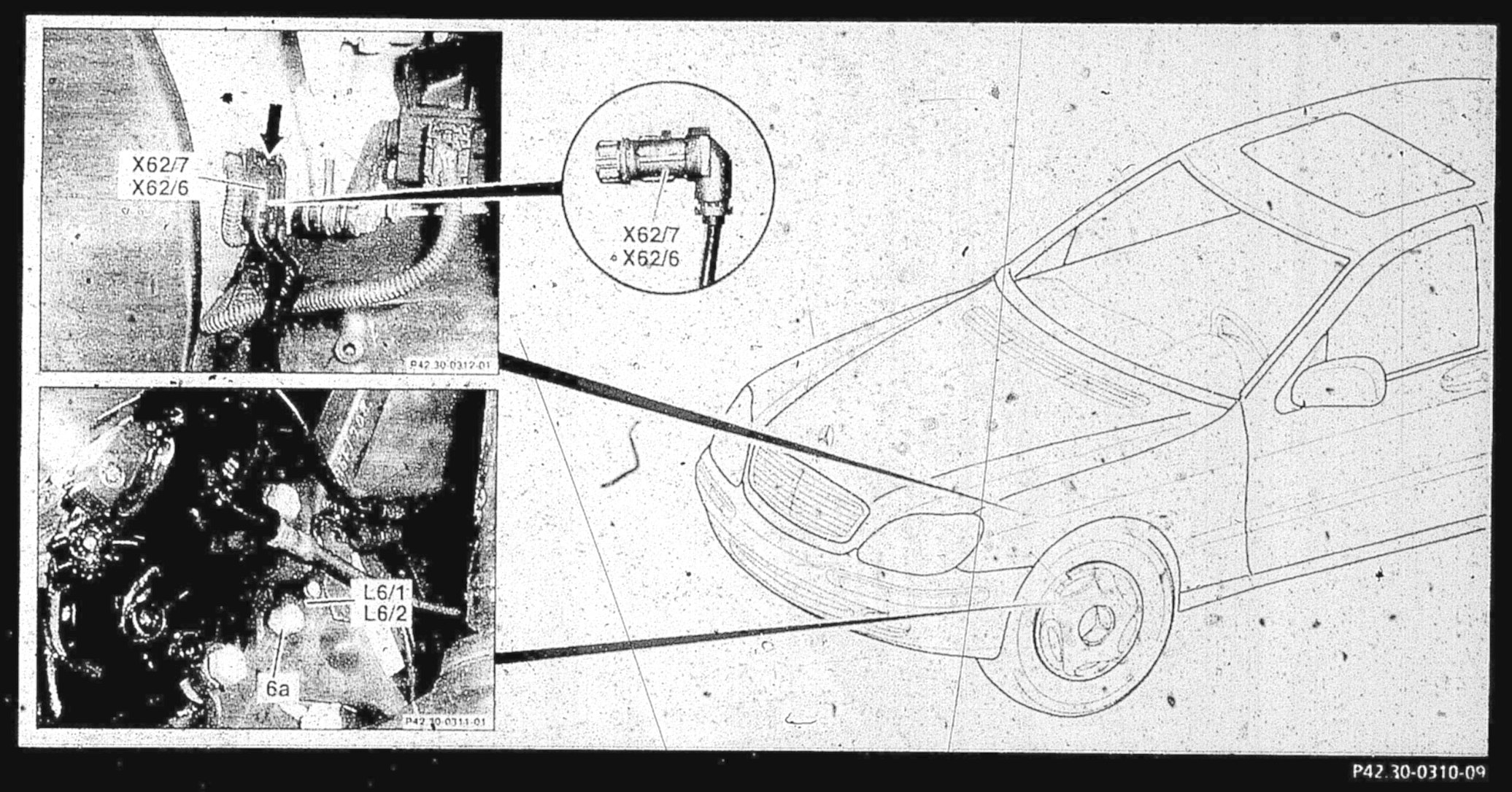

AR42.30-P-0712I Remove/Install Left or Right Front RPM Sensor

Item 6a Fixing bolts of VSS sensor.
- Replace bolts.

Item L6/1, L6/2 Front axle VSS sensor
- Check wheel hub rotor for damage.
- Pay attention to cleanliness of magnetic tip.
- Secure cables for VSS sensors with cable straps so that they are not damaged when the suspension moves towards bump and rebound.
- Lubricate, bore in steering knuckle lightly with long-term grease.
- Tighten self-locking bolt, front axle VSS sensor to steering knuckle: 25 Nm

Item X62/6, X62/7 Front axle VSS sensor connector
- Press clip in direction of arrow.
- Pay attention to correct routing of components.
