Parking Assist Control Module: Service and Repair

AR54.65-P-0006I Remove/Install Parktronic System (PTS) Control Module
- with CODE (220a) Parktronic system (PTS)

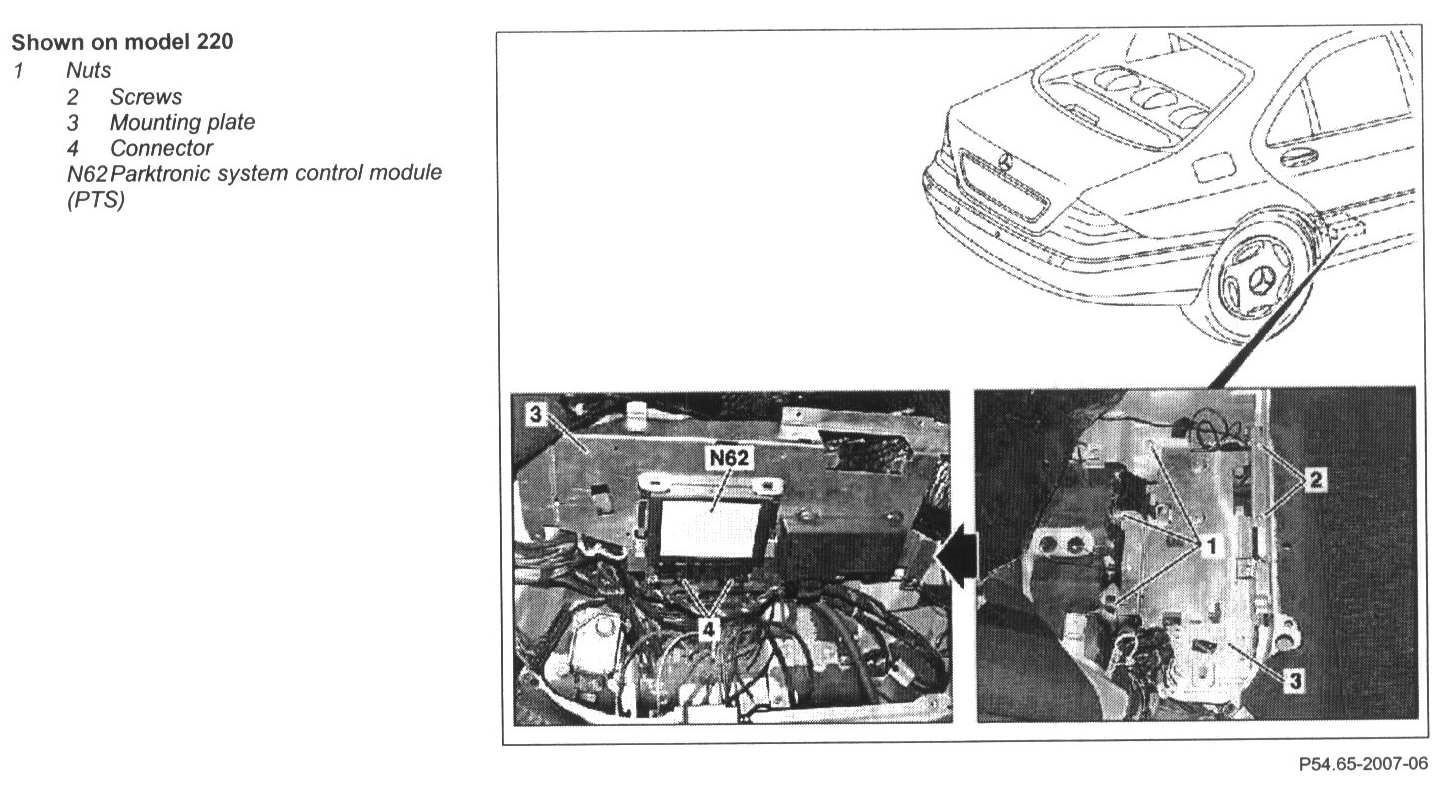

Shown On Model 220:

Removal, installation
1 Connect quiescent current retention unit
2 Disconnect ground lead from battery
3.1 Remove rear seat cushion
3.2 Remove independent seats
4 Remove rear seat adjustment mechanism
5 Unscrew screws (1) and nuts (2) and remove mounting plate (3) from vehicle floor
6 Release connectors (4) on Parktronic system control module (N62) and disconnect
7 Push Parktronic system control module out of guide rails (direction of arrow) and remove from mounting plate
8 Install in reverse order.
