Function Diagrams

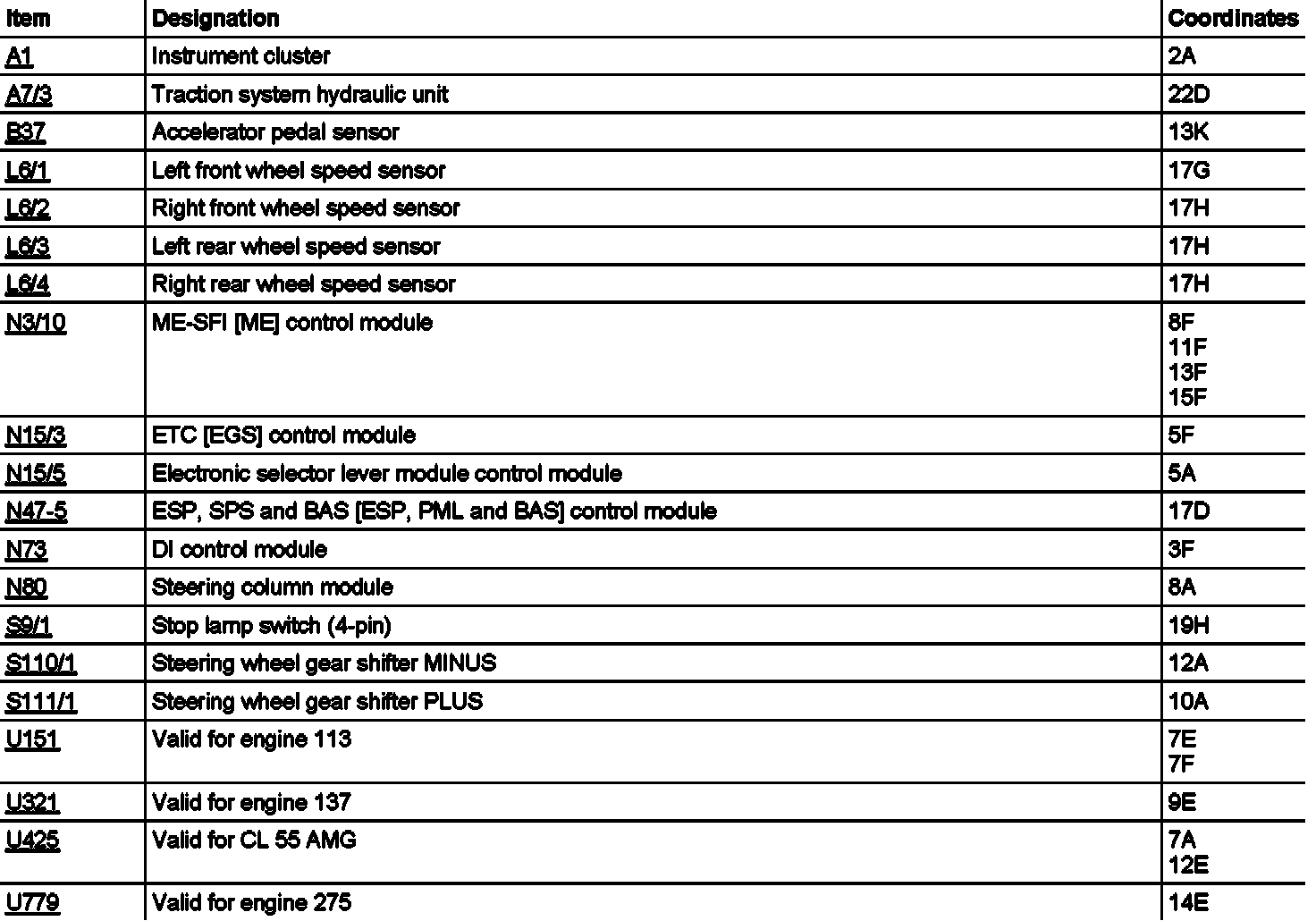

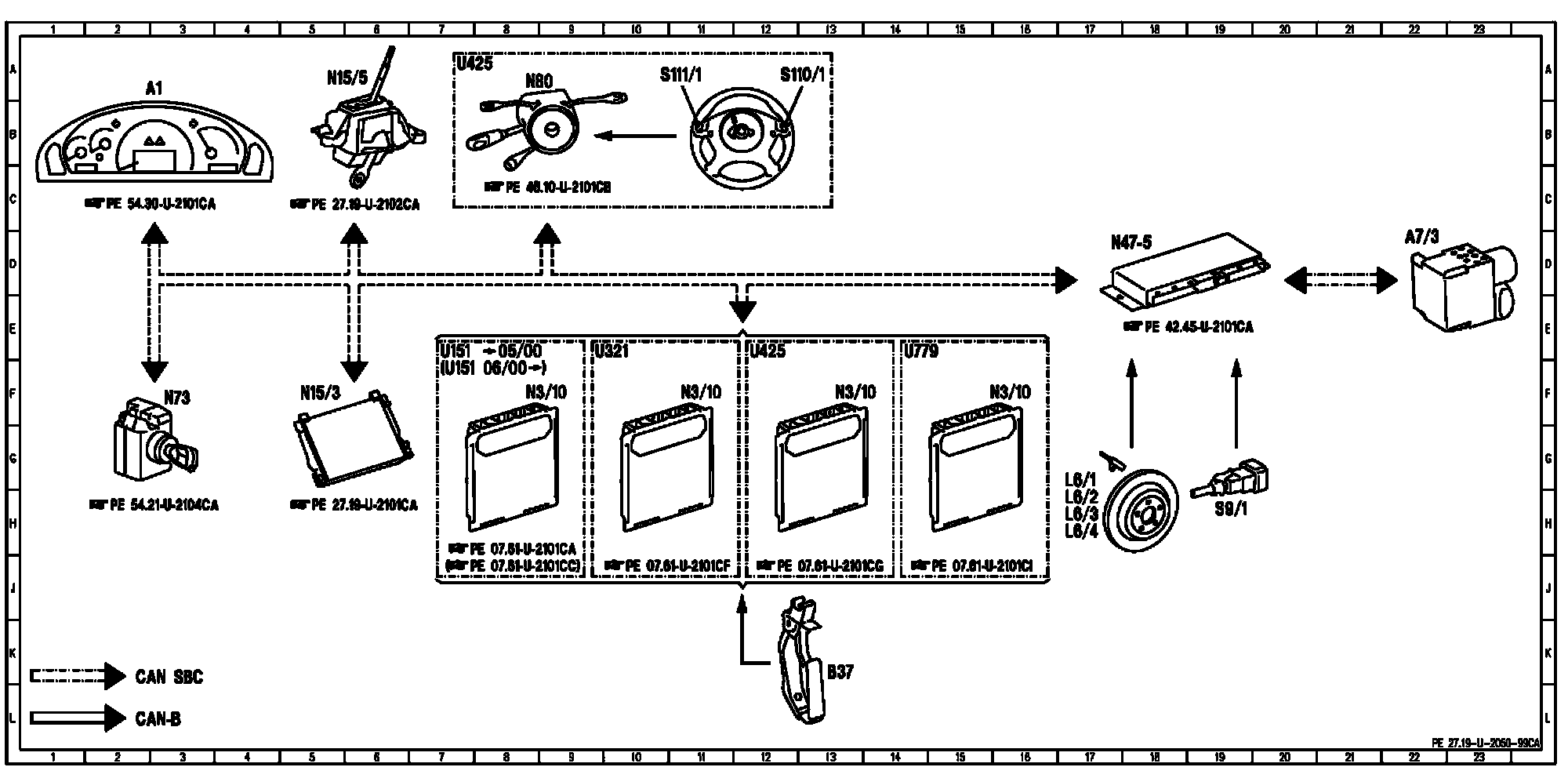

PE27.19-U-2050CA Function Diagram of Electrical System For Electronic Transmission Control (ETC)
Transmission 722.6 in Model 215
