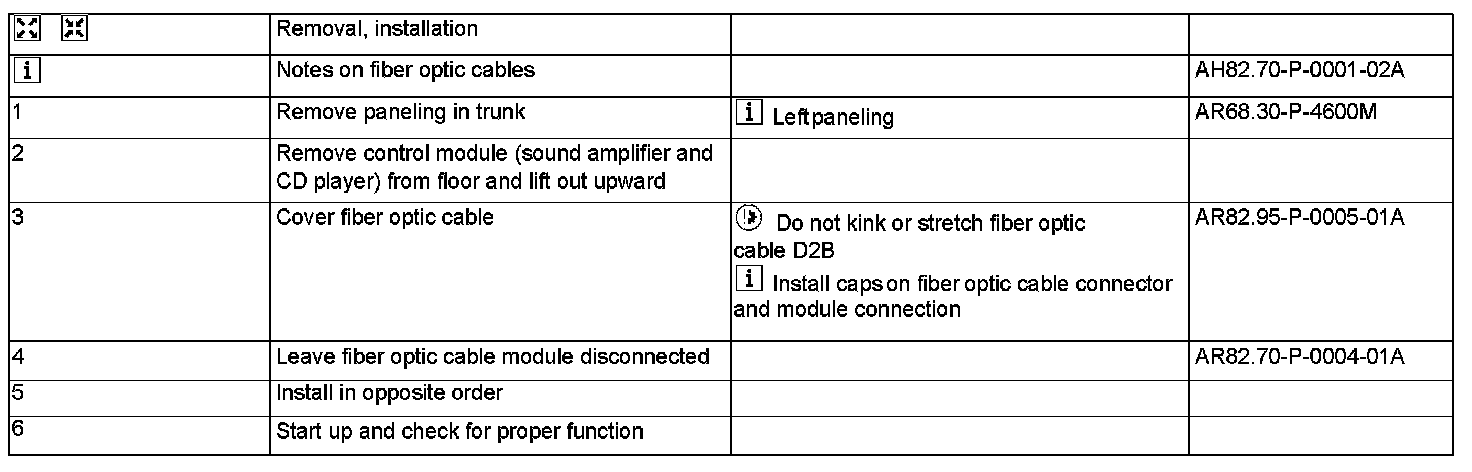

AR82.70-P-0004MD Remove/Install Fiber Optic Cable
AR82.70-P-0004MD Remove/Install Fiber Optic Cable
AR82.70-P-0004MD Remove/Install Fiber Optic Cable

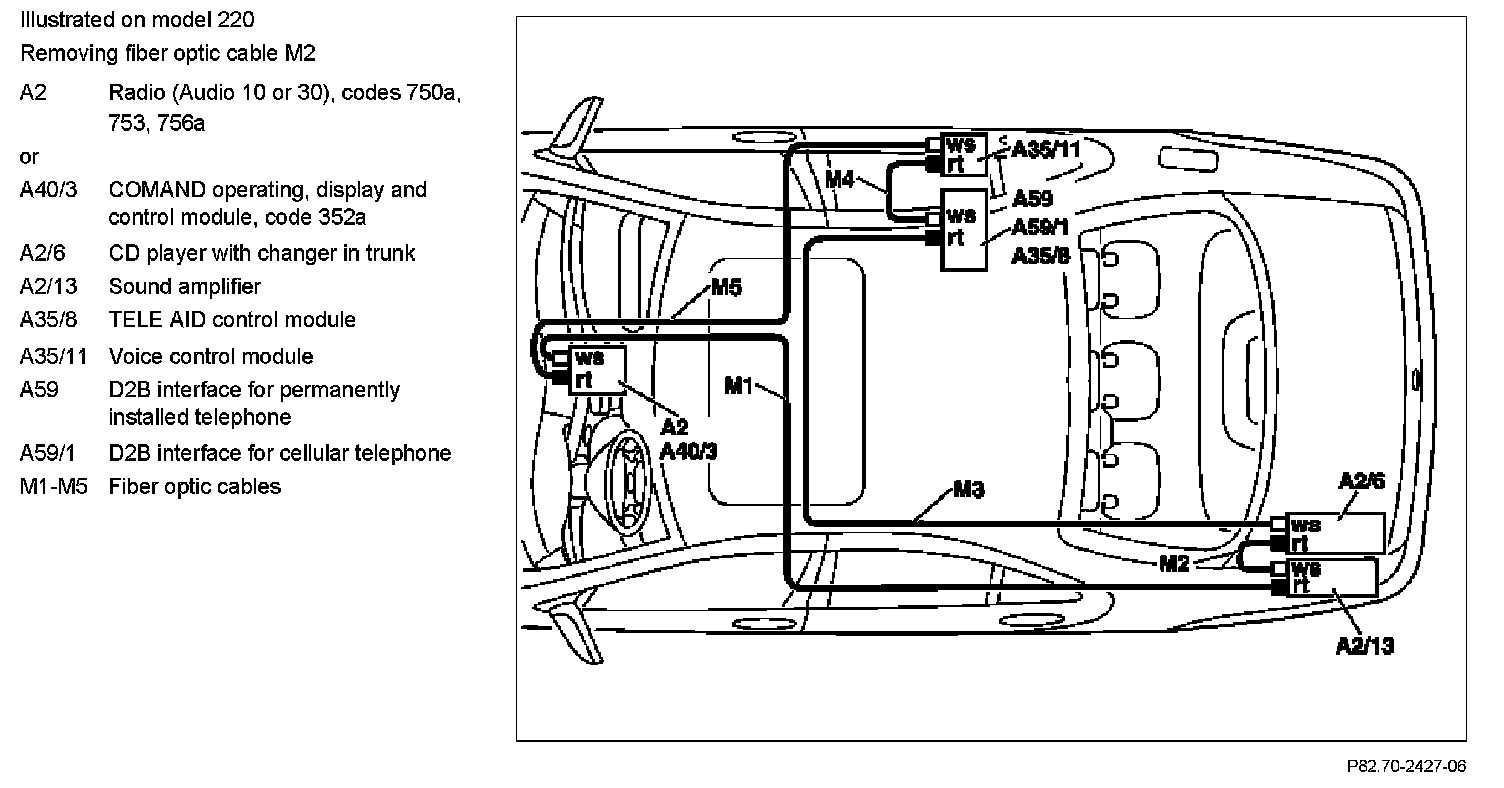

- Between trunk control modules
