Mercedes Benz
>>
2004
>>
CL 55 AMG (215.374) V8-5.5L SC (113.991)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>

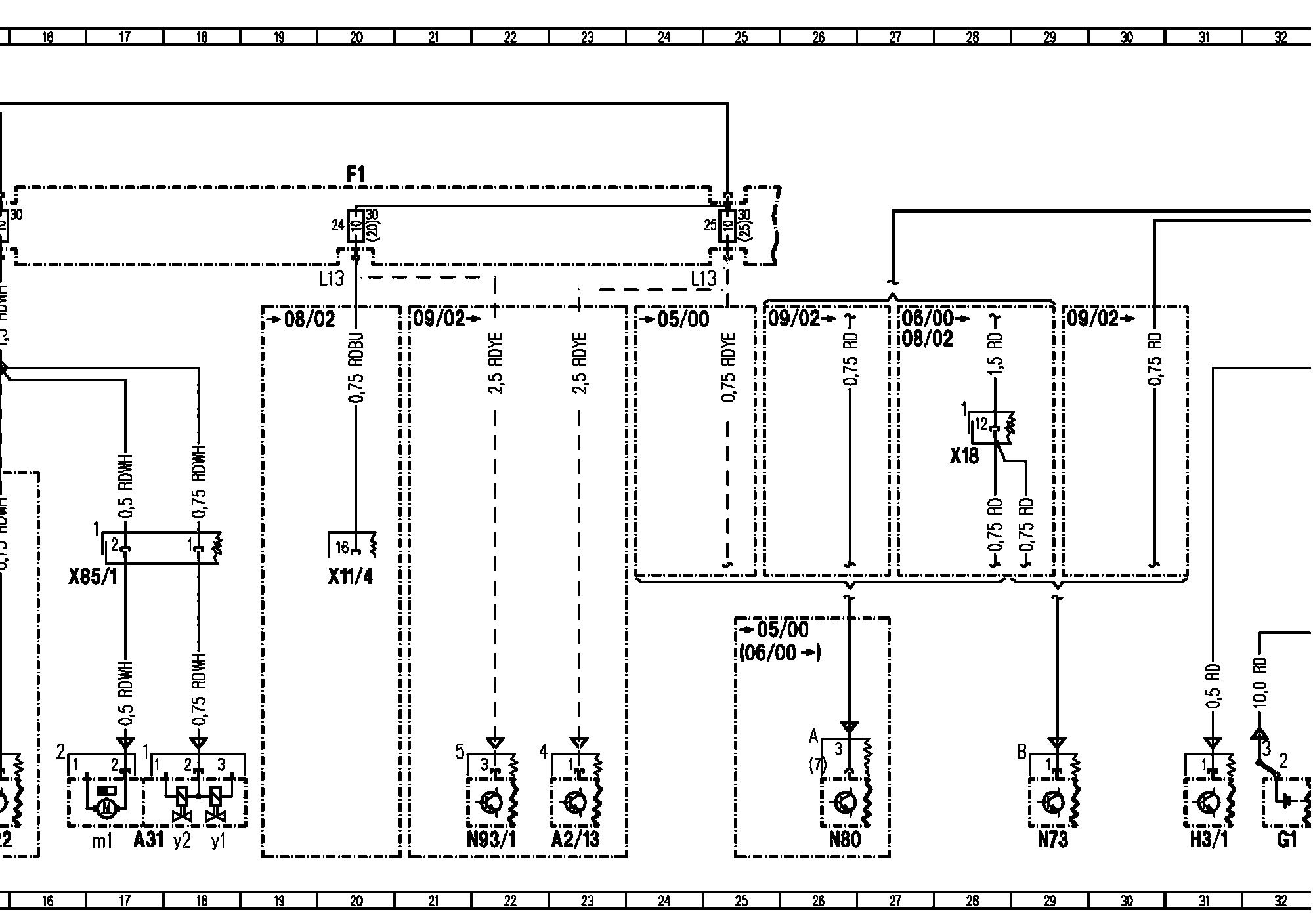

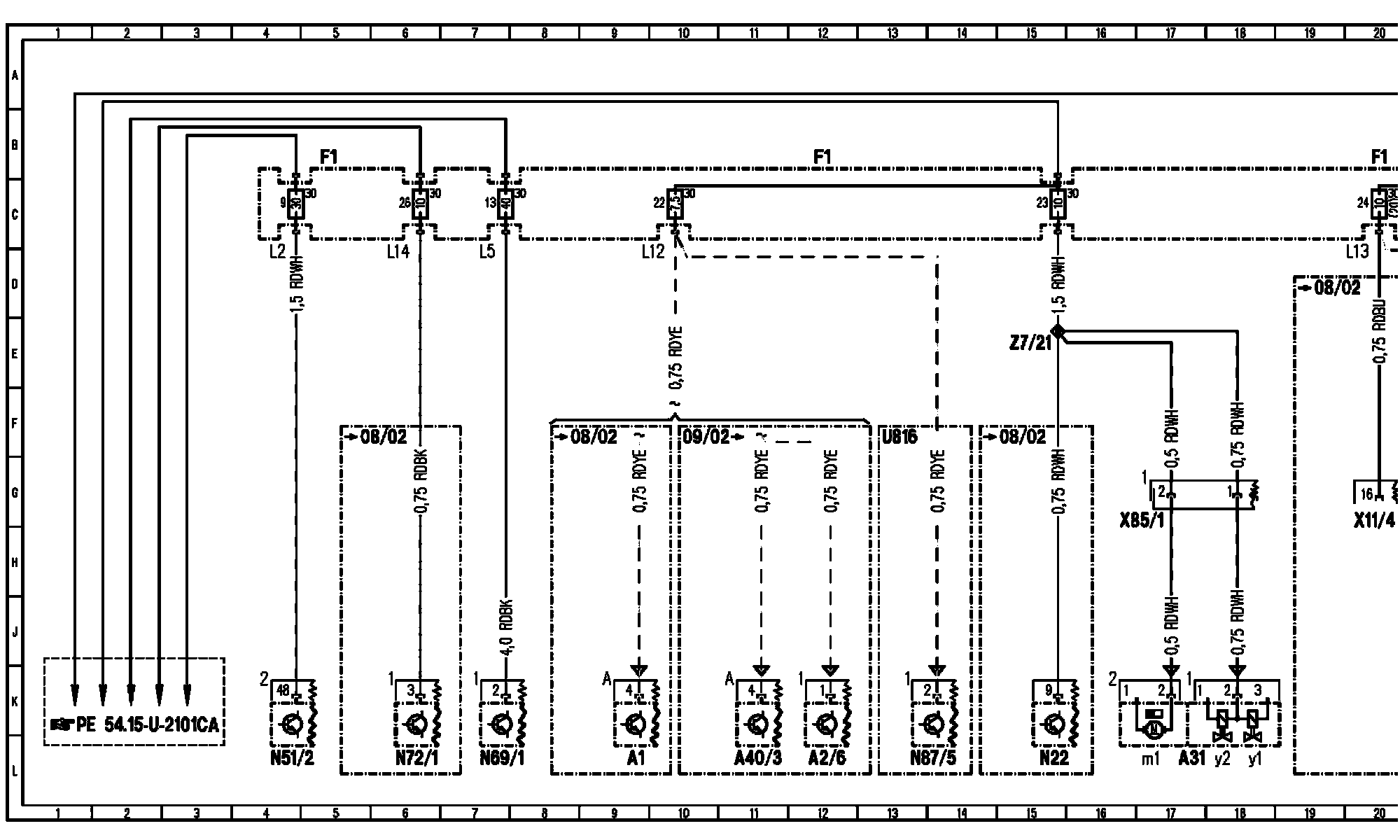

PE00.19-U-2710CA Circuit 30 Wiring

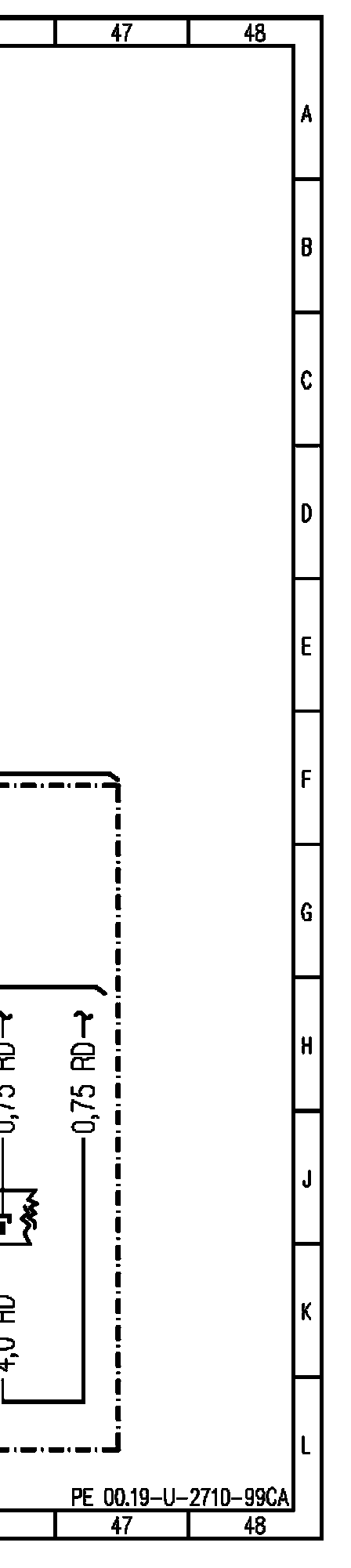

PE00.19-U-2710CA Circuit 30 Wiring

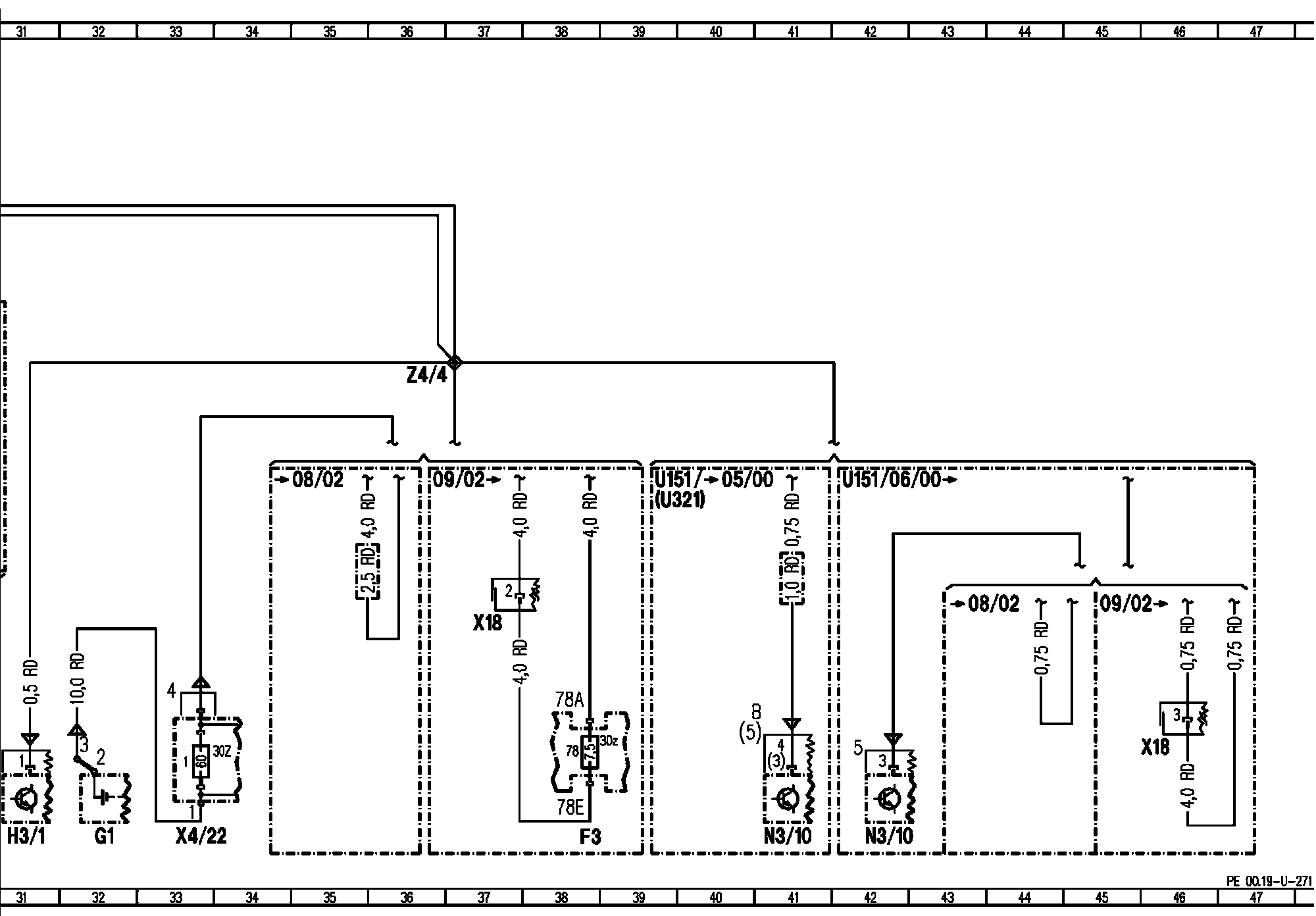

PE00.19-U-2710CA Circuit 30 Wiring
Model 215

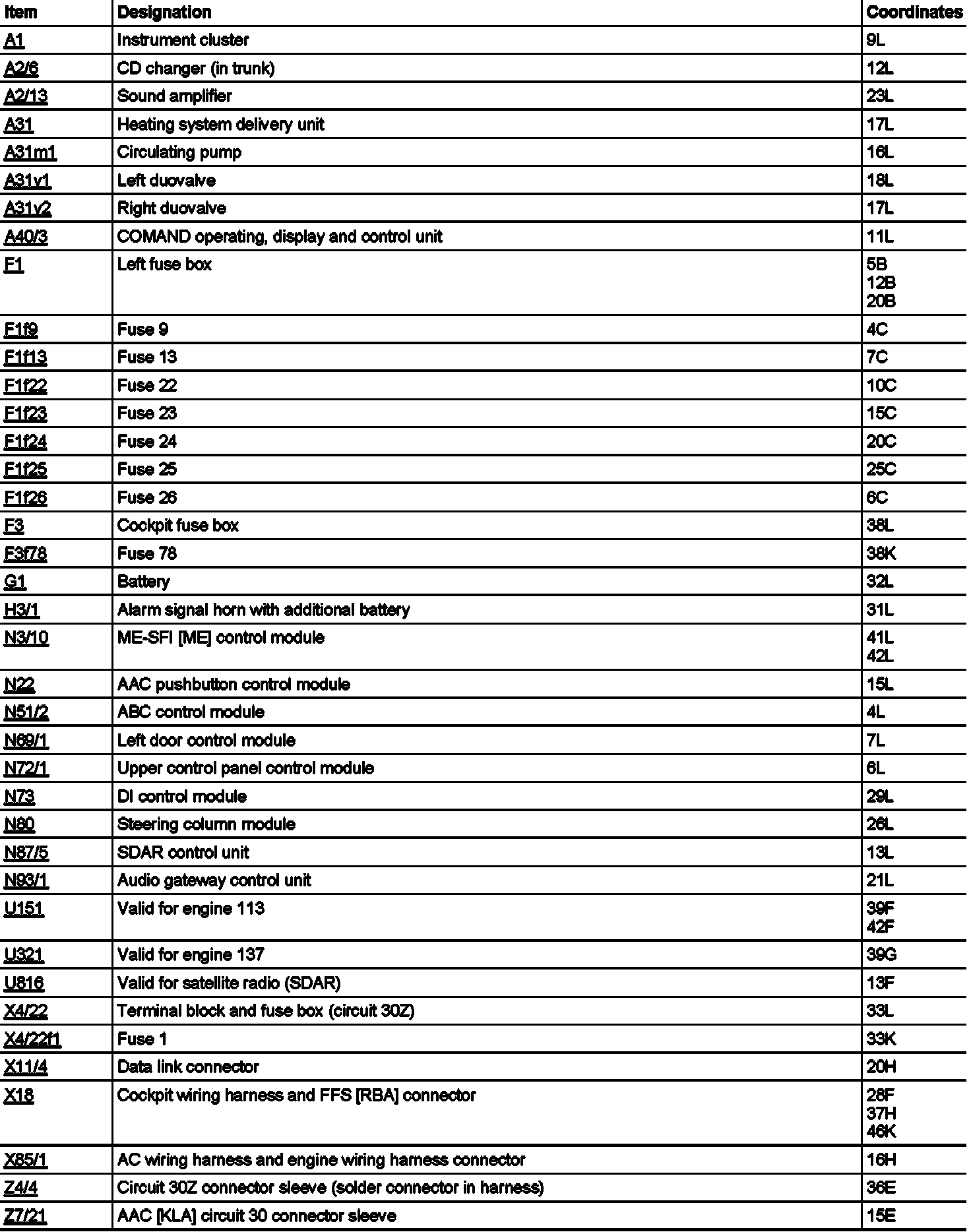

Supply of fuses in left fuse box
