Removal and Replacement

AR31.10-P-8000MA Remove/Install Trailer Coupling
- with CODE (550) Trailer coupling
- Trailer coupling AK 40 detachable ball neck

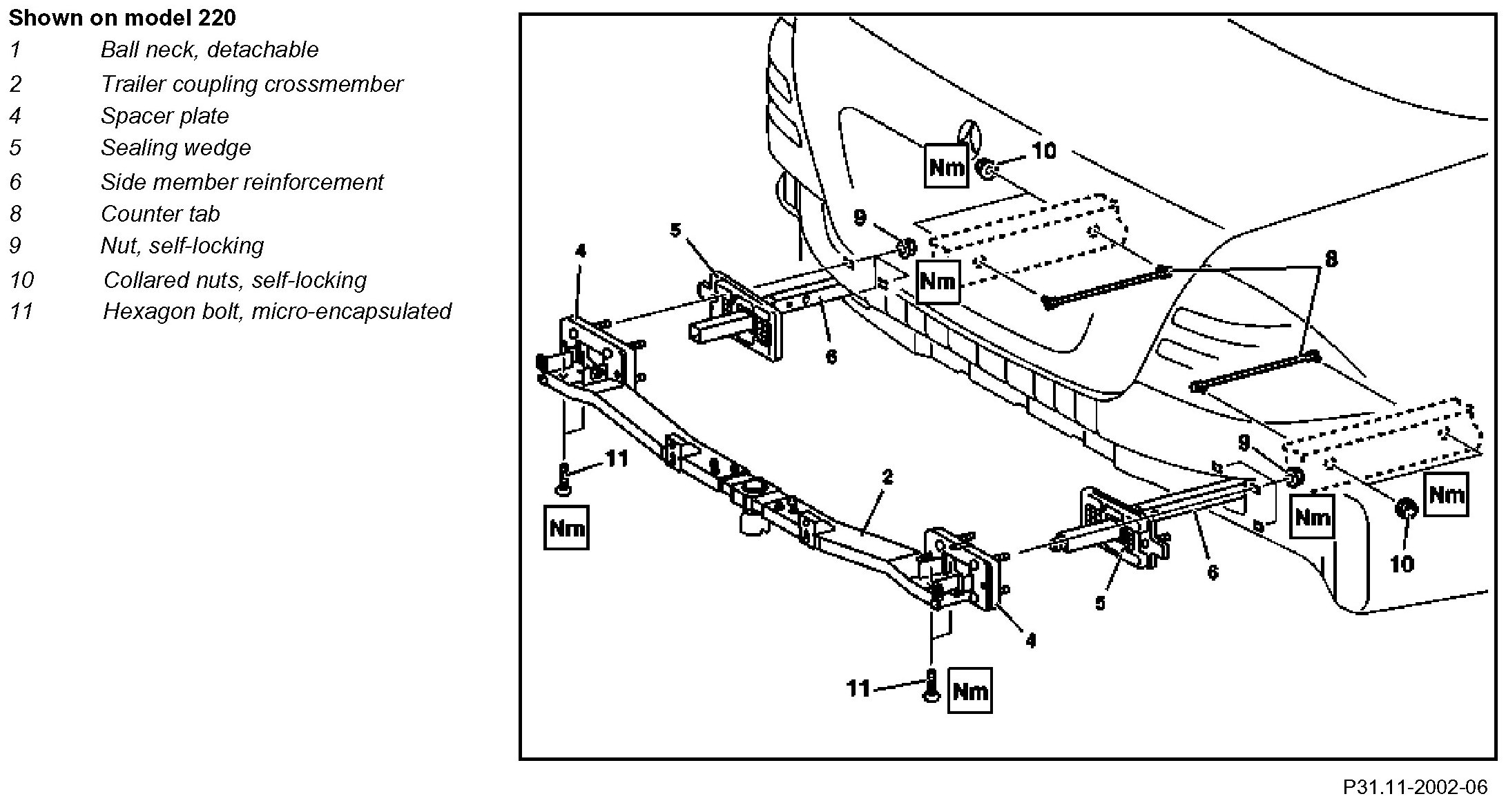

Component Identification:

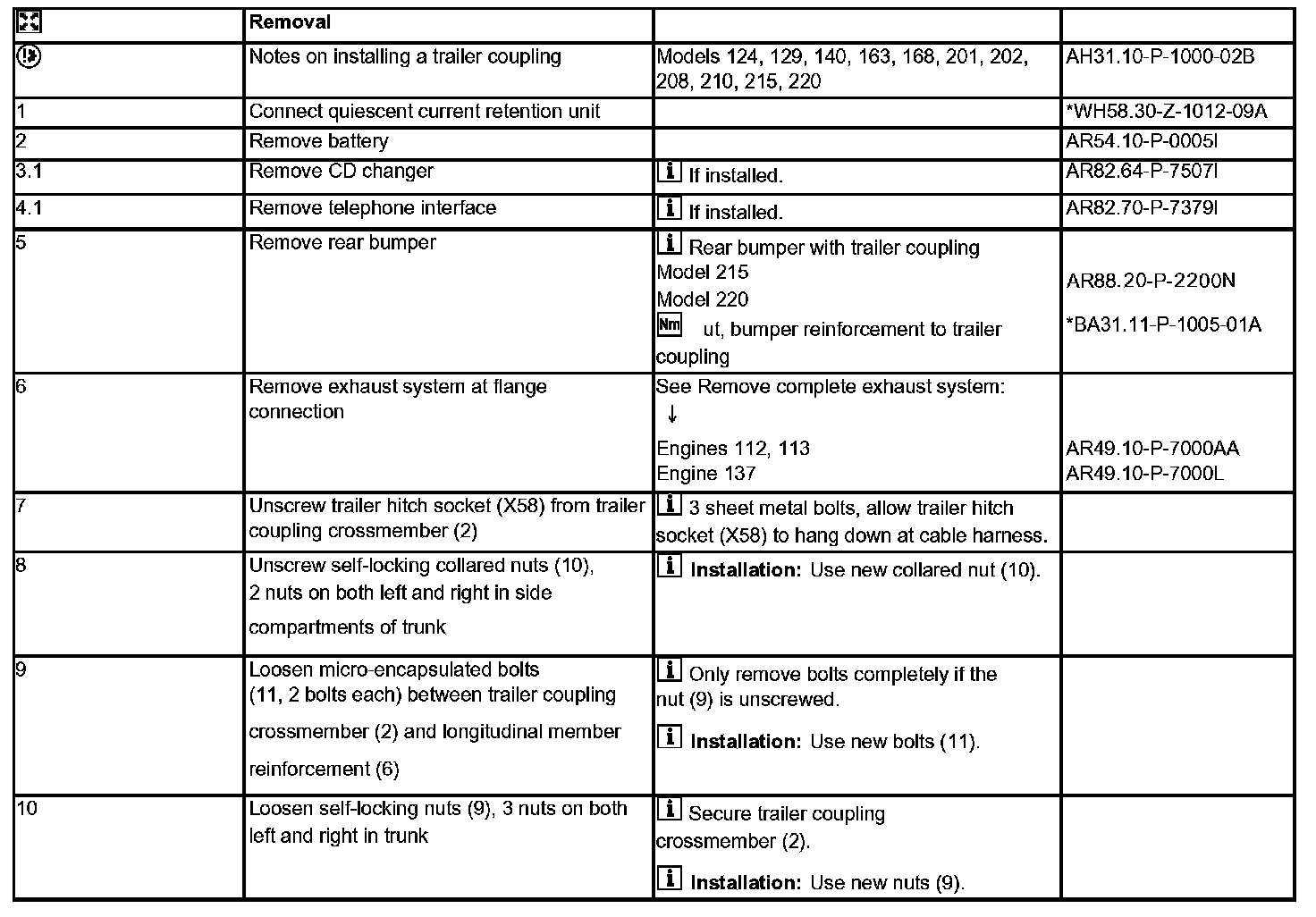

Steps 1 - 10:

Steps 11 - 16:

Trailer Coupling Mechanical System:

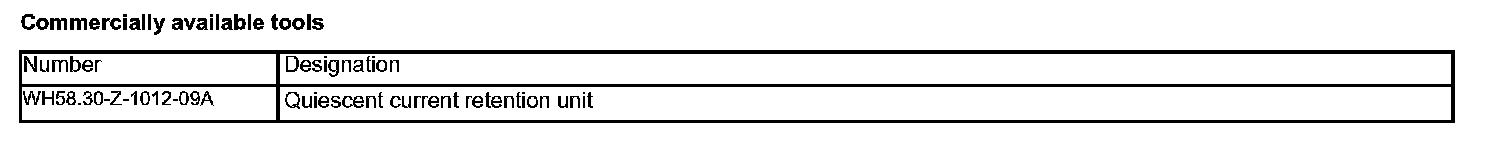

Commercially Available Tools:
