AR88.50-P-5125N Remove/Install Hinge Lever With Remote Trunk Closing



AR88.50-P-5125N Remove/Install Hinge Lever With Remote Trunk Closing
- with CODE (881b) Remote trunk closing (RTC)

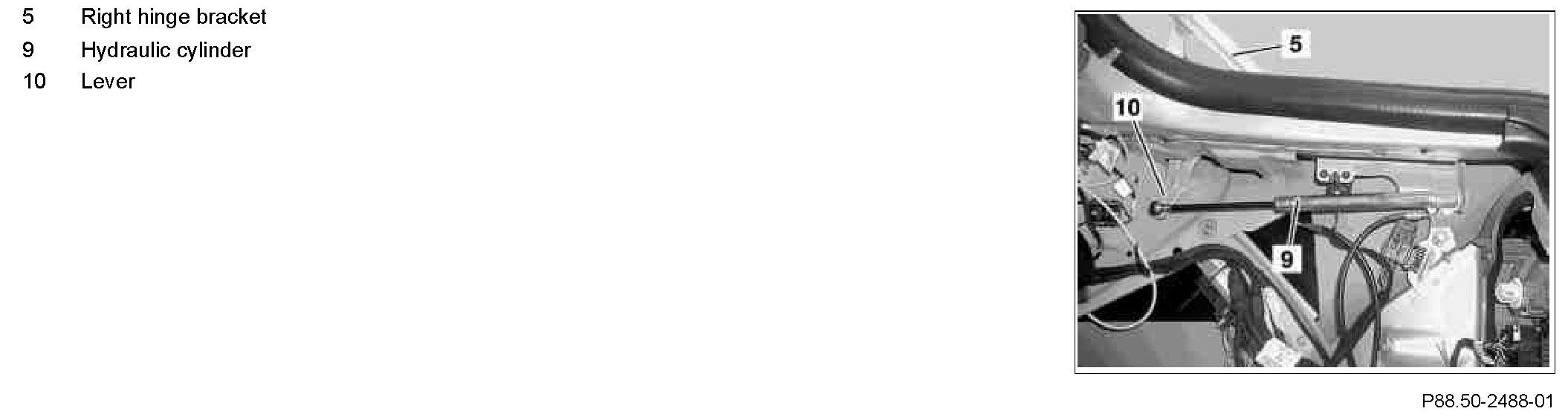

Component Identification:

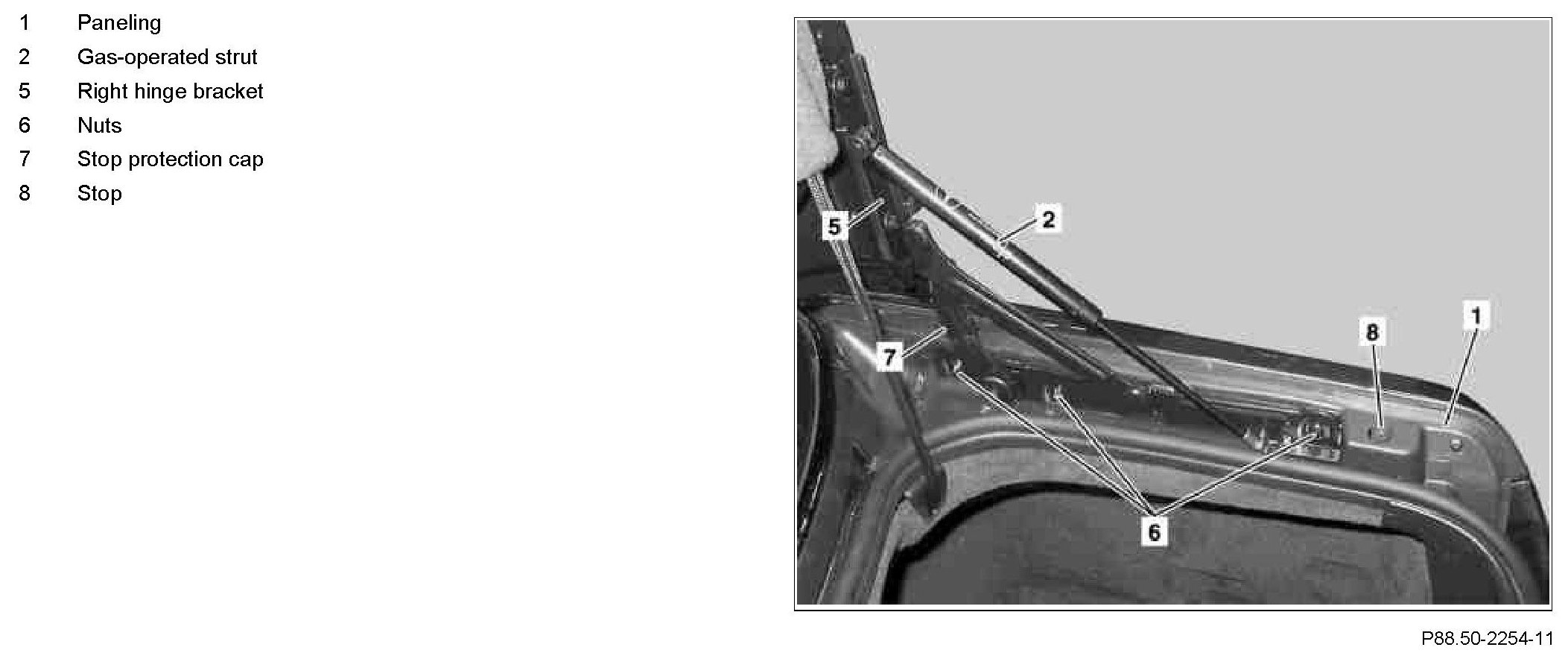

Component Identification:

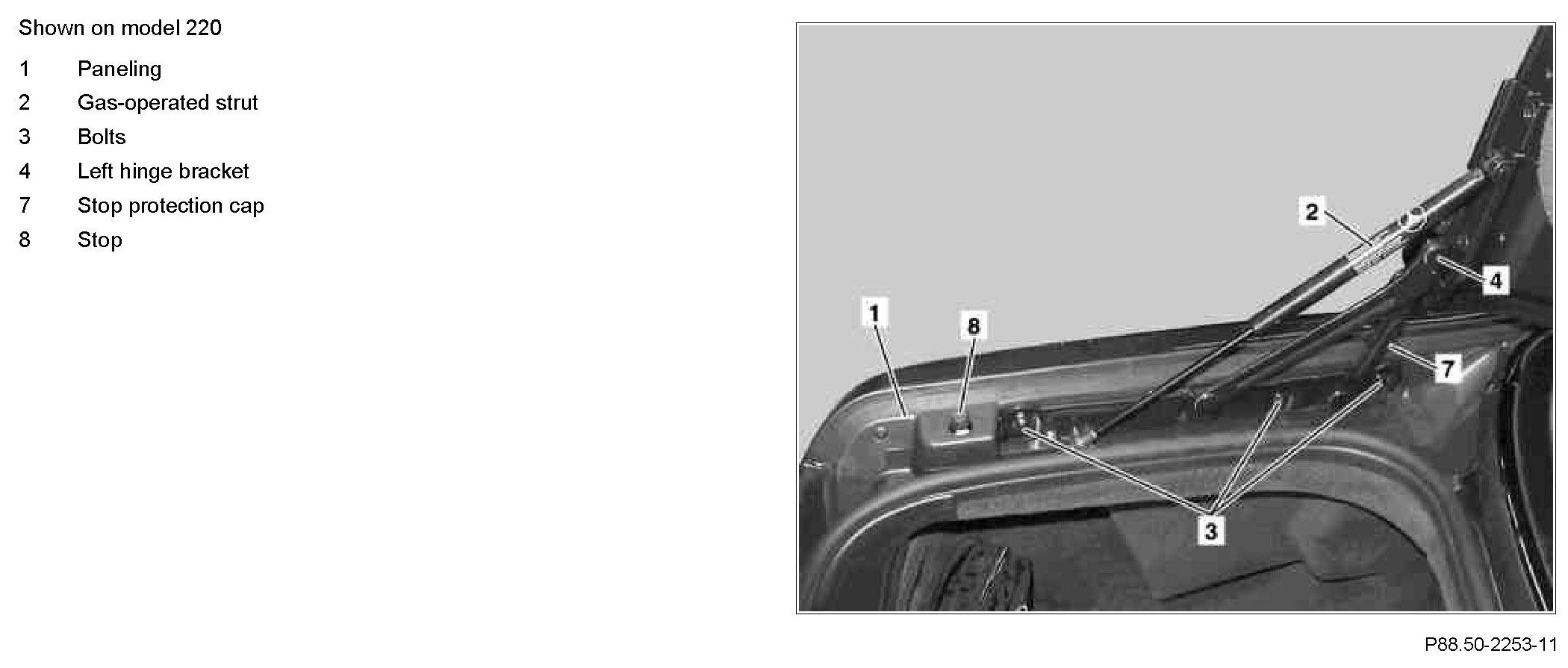

Component Identification:

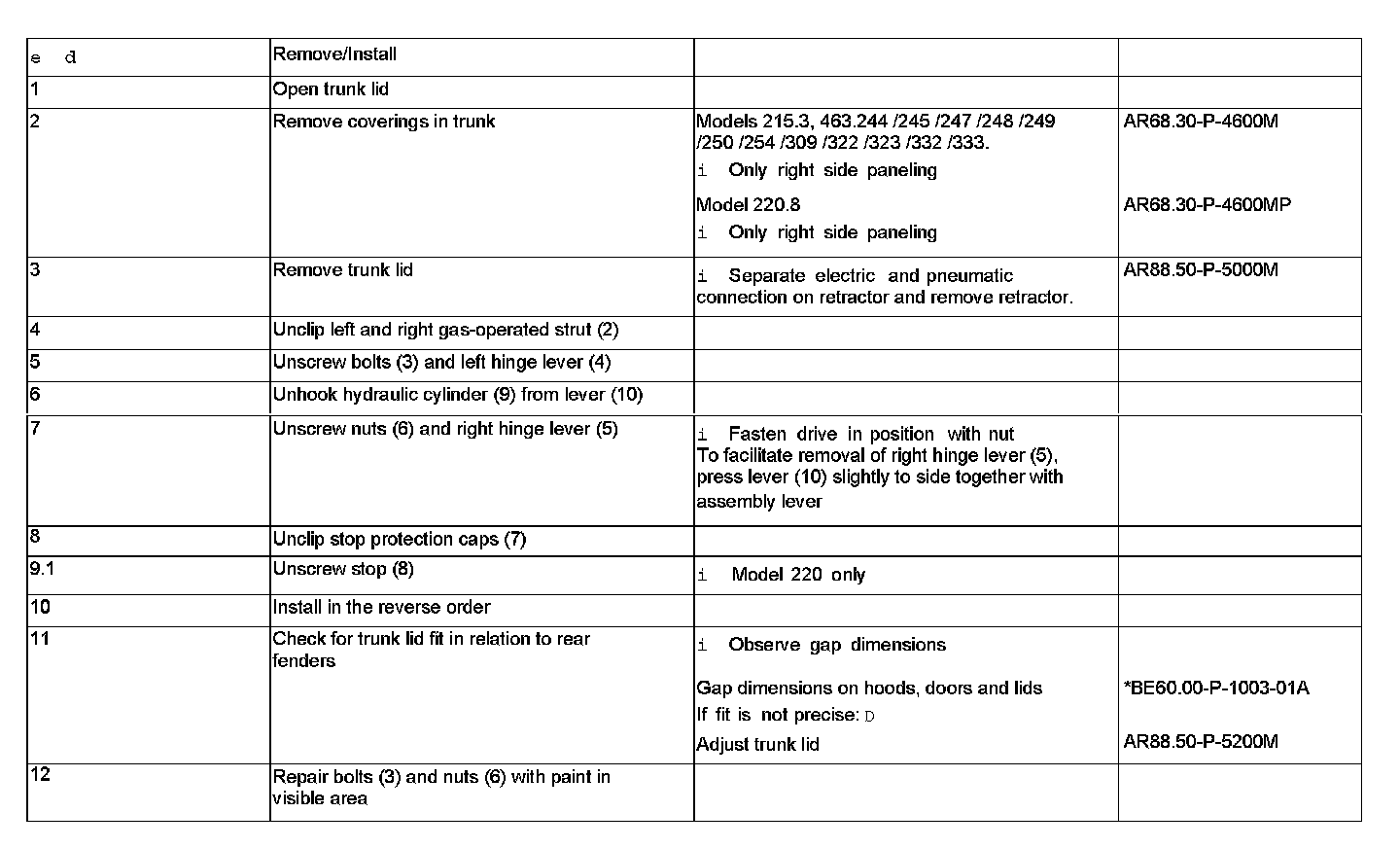

Steps 1 - 12:

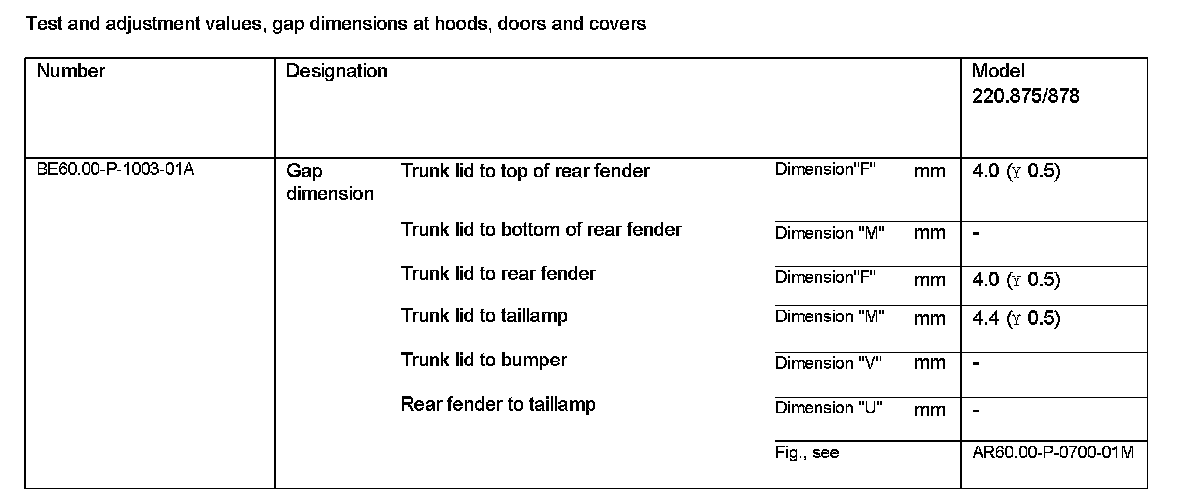

Test And Adjustment Values, Gap Dimensions At Hoods, Doors And Cover:

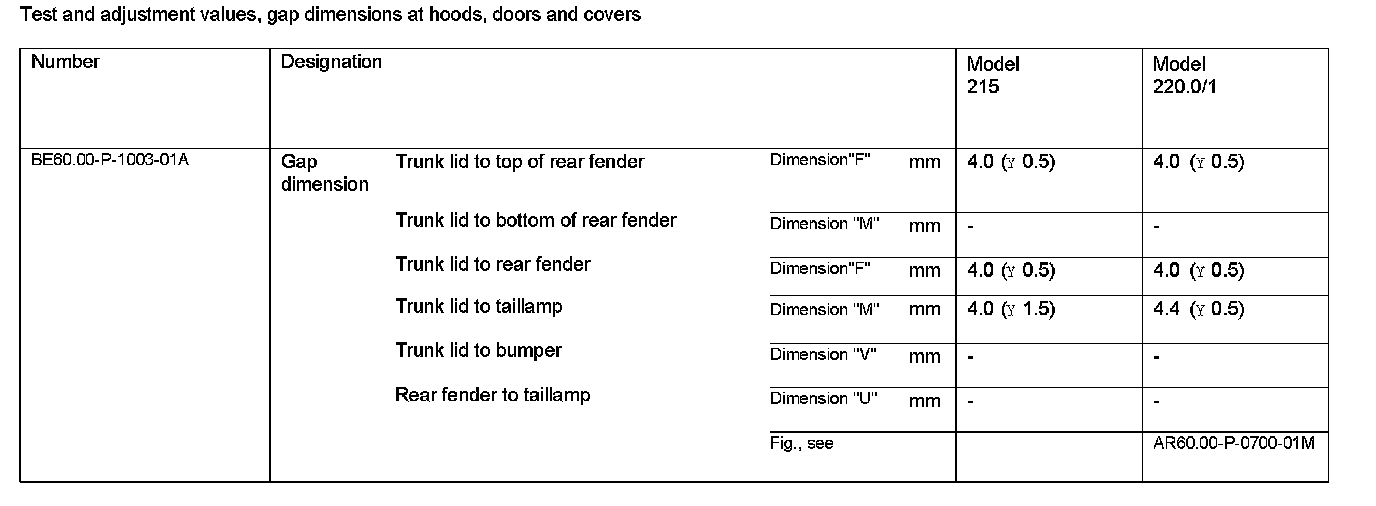

Test And Adjustment Values, Gap Dimensions At Hoods, Doors And Covers:
