AR88.50-P-5120MA Remove/Install Hinge Lever For Trunk Lid



AR88.50-P-5120MA Remove/Install Hinge Lever For Trunk Lid
- except CODE (881) Remote trunk closing (RTC)

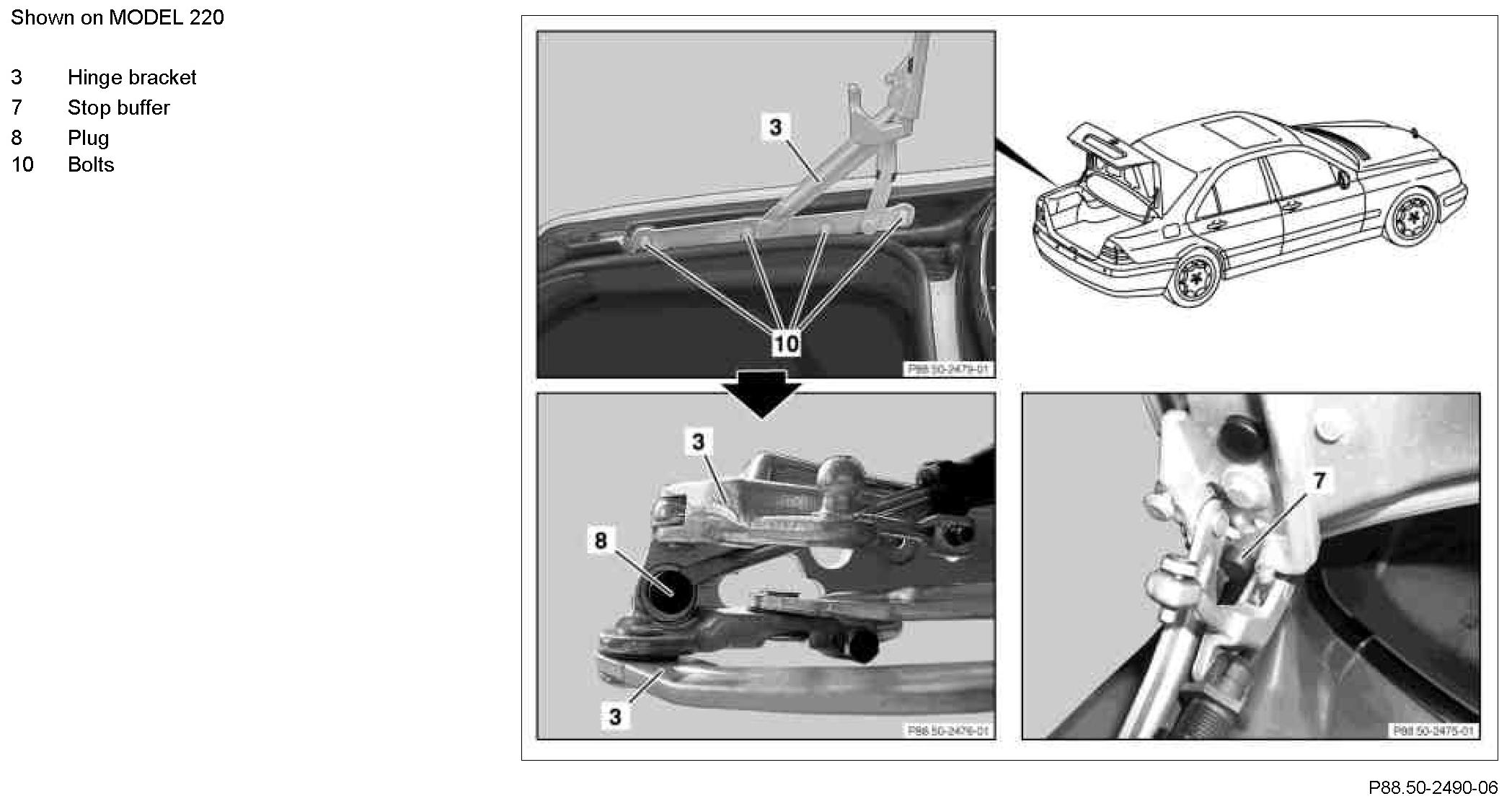

Component Identification:

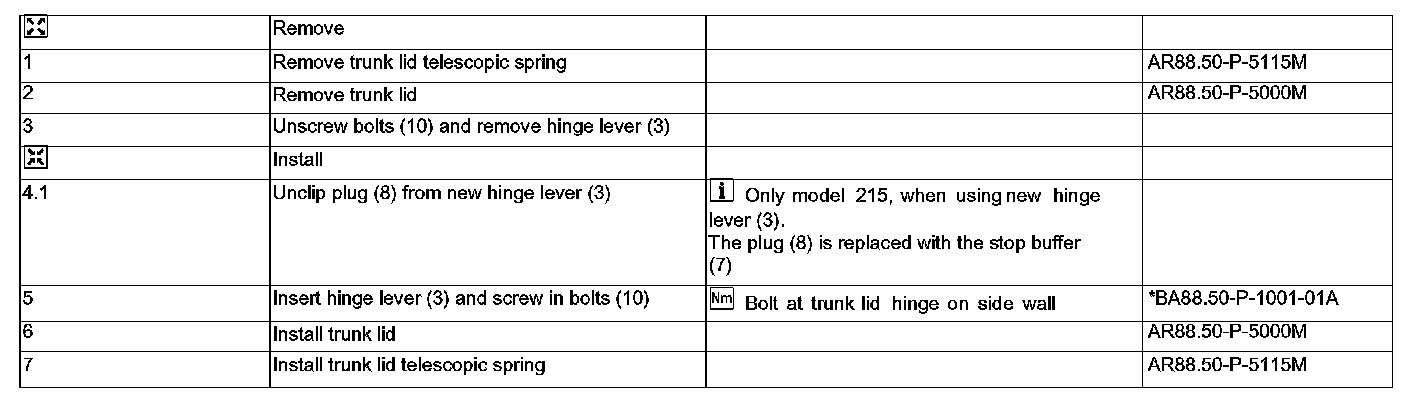

Steps 1 - 7:




Trunk Lid:
