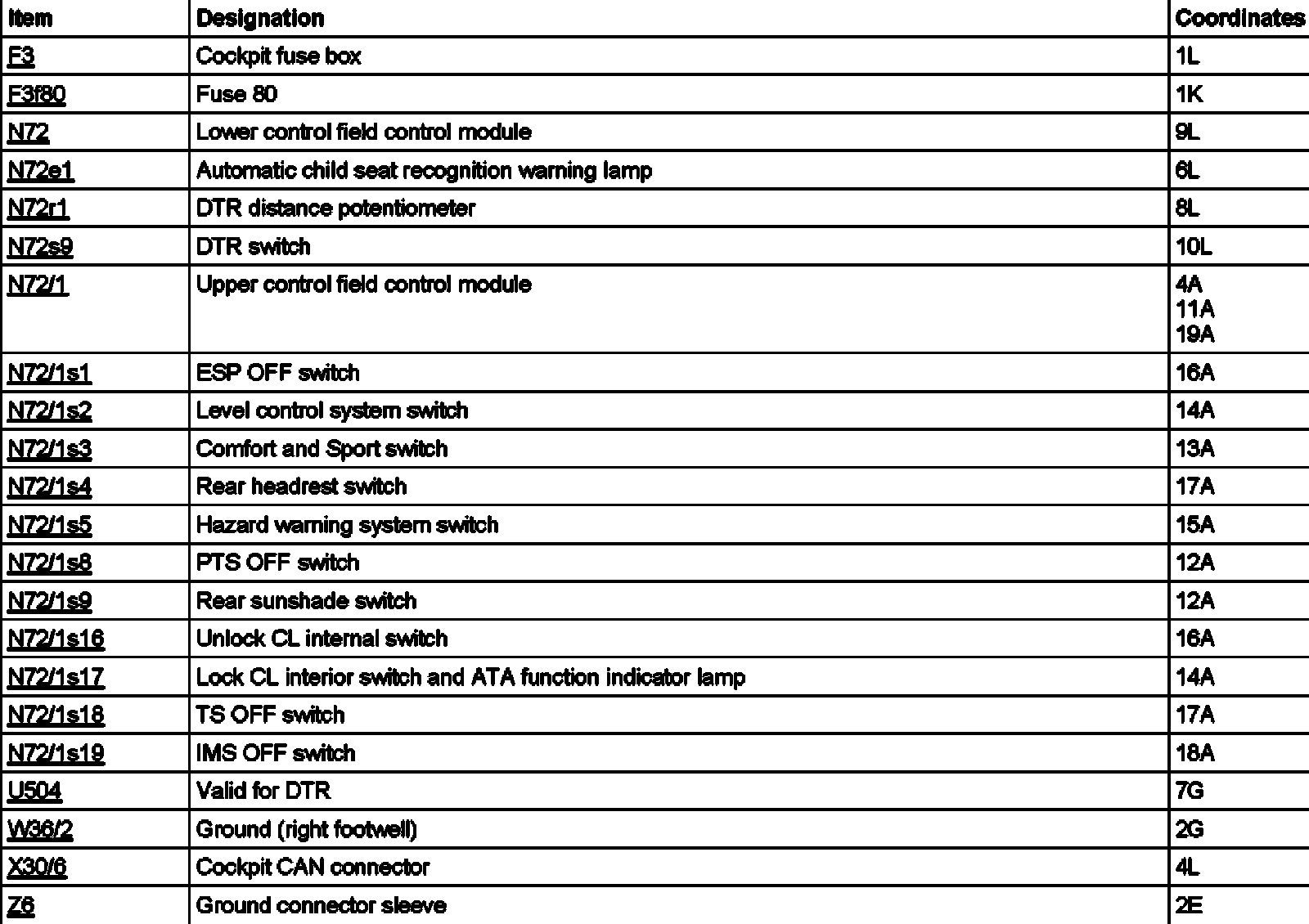

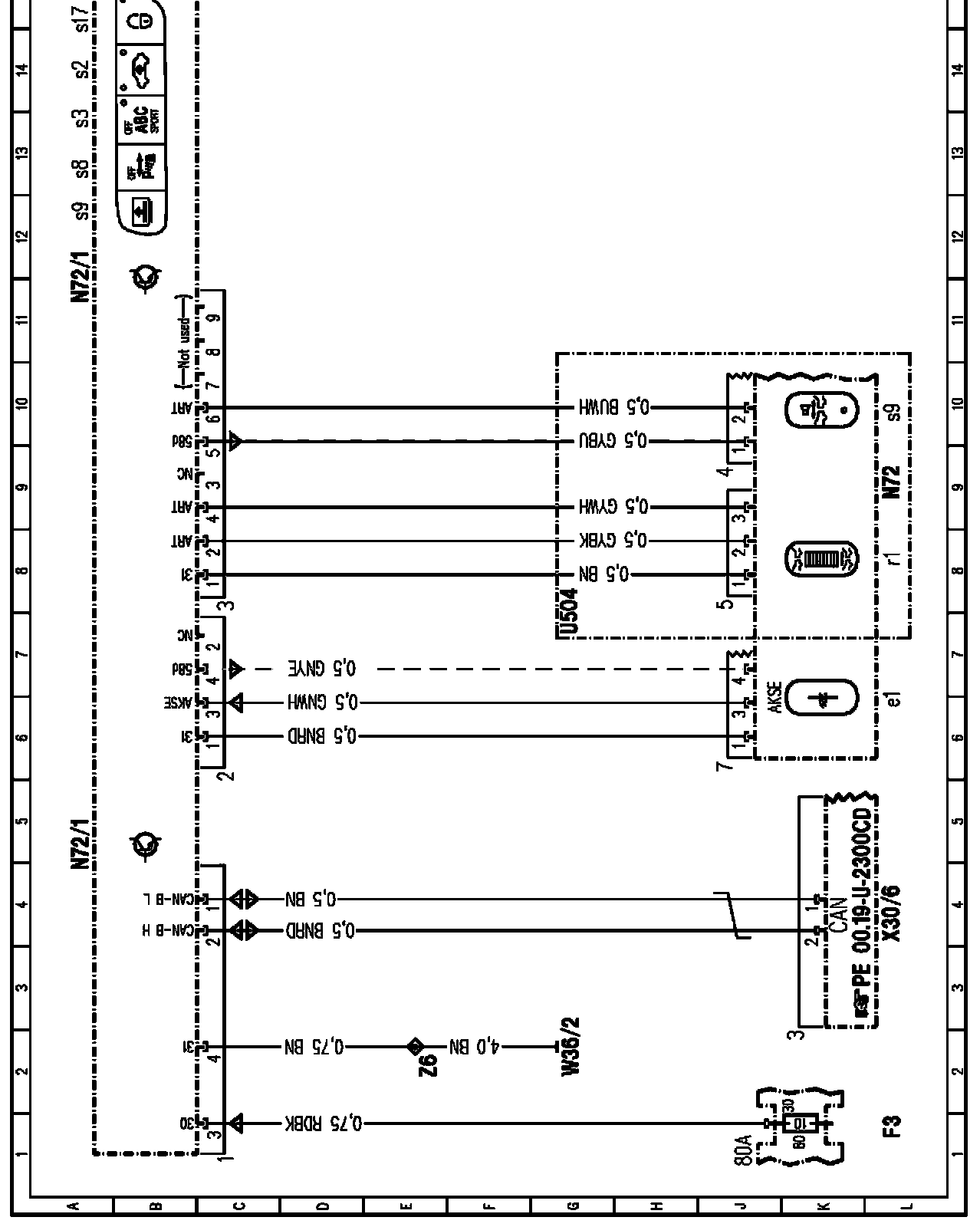

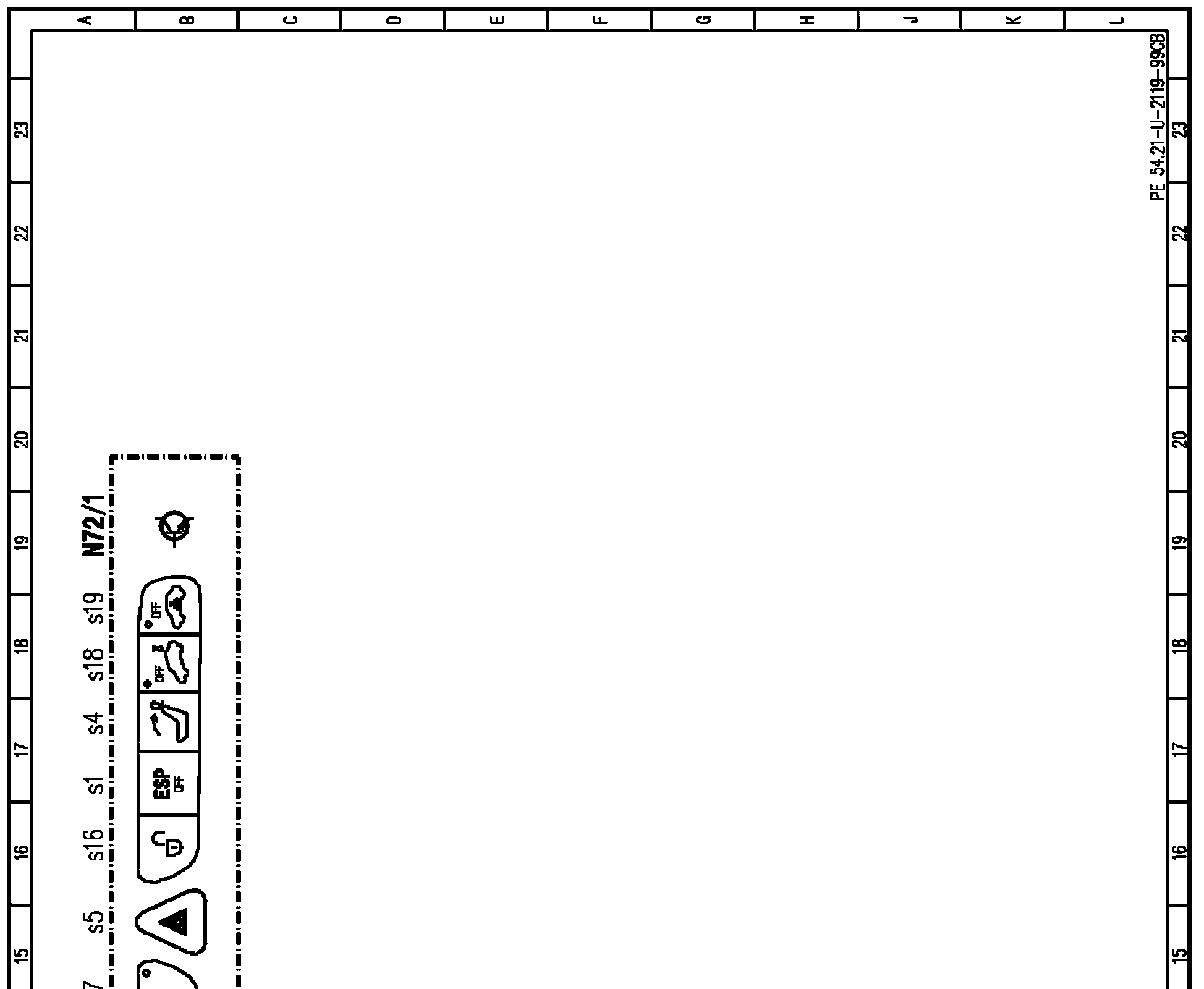

PE54.21-U-2119CB Upper Control Panel Control Module
PE54.21-U-2119CB Upper Control Panel Control Module
PE54.21-U-2119CB Upper Control Panel Control Module
Model 215 as of 09/01/02
Control Module N72/1
