AR82.62-P-8000MD Remove/Install Keyless Go Antenna In Trunk

AR82.62-P-8000MD Remove/Install Keyless Go Antenna In Trunk
- with CODE (889) Keyless Go

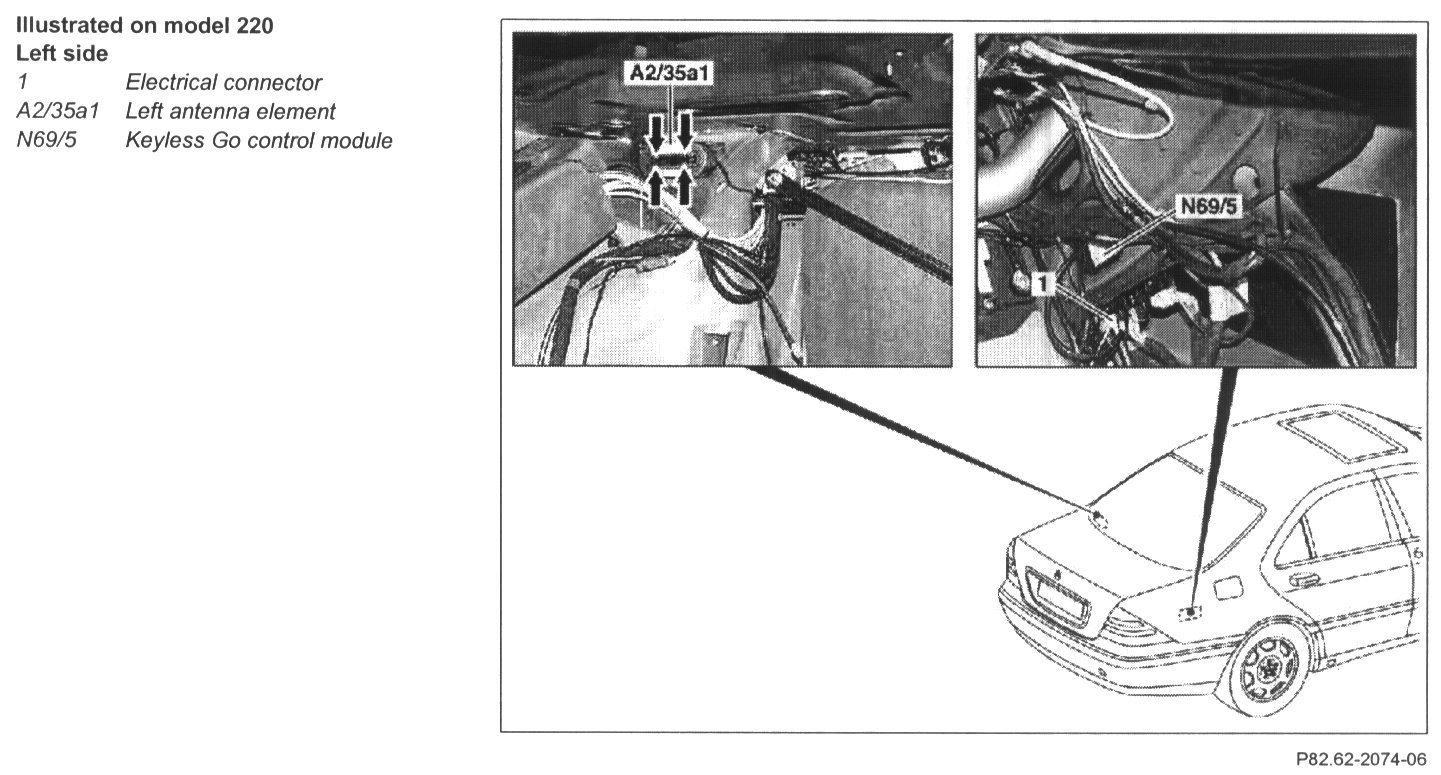

Illustrated On Model 220 - Left Side:

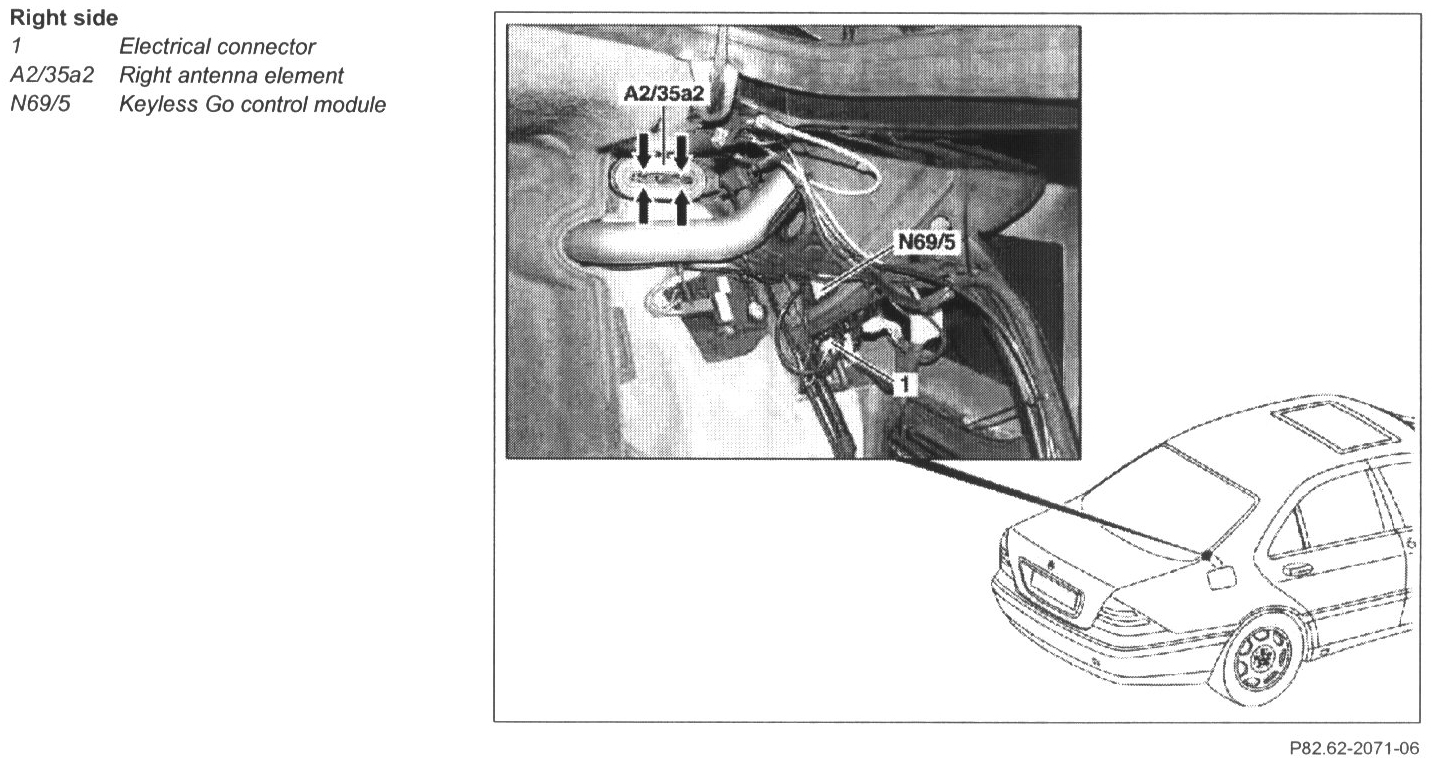

Illustrated On Model 220 - Right Side:

1 Remove paneling in trunk

NOTE: Right side, remove right side paneling only

2 Release and remove electrical connector (1) from Keyless Go control module (N69/5)
3 Press locks on left and right antenna elements (A2/35a1, A2/35a2) in trunk in direction of arrow and remove left/right antenna elements (A2/35a1, A2/35a2)

NOTE: Observe wire routing

4 Install in opposite order.
