AR82.62-P-8000MC Remove/Install Keyless Go Antenna In Bumper

AR82.62-P-8000MC Remove/Install Keyless Go Antenna In Bumper
- with CODE (889) Keyless Go

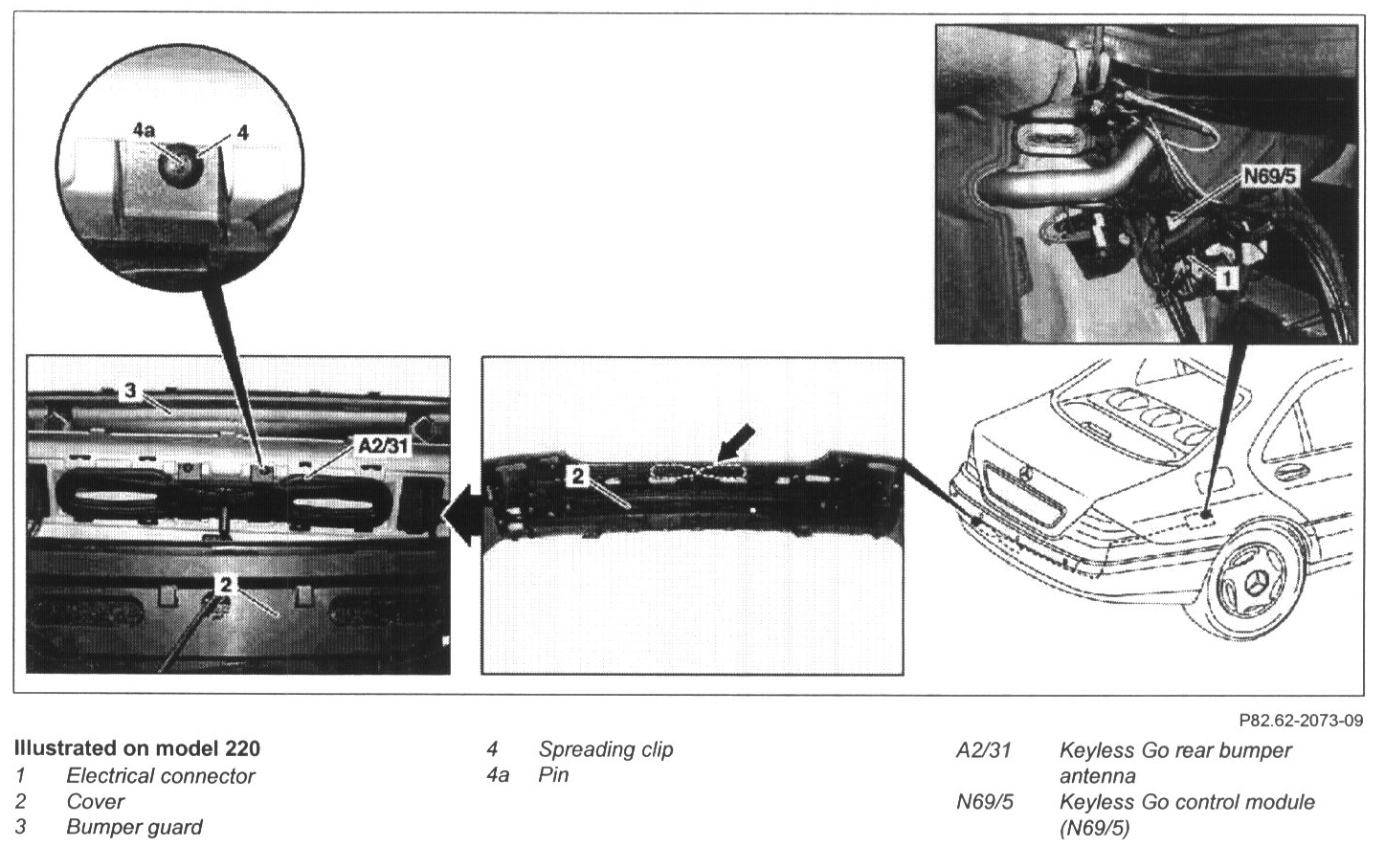

Illustrated On Model 220:

1 Remove rear bumper
2 Disconnect electrical connector (1) on Keyless Go control module (N69/5)
3 Unclip cover (2) on bumper
4 Unclip bumper guard (3)
5 Press in pin (4a), remove spreading clip (4) and remove Keyless Go rear bumper antenna (A2/31) from bumper
6 Install in opposite order.
