FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2004
>>
C 32 AMG (203.065) V6-3.2L SC (112.961)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Lock
>>
Ignition Lock Cable
>>
Service and Repair
Ignition Lock Cable: Service and Repair
AR27.60-P-0122P Remove/install ignition lock control cable

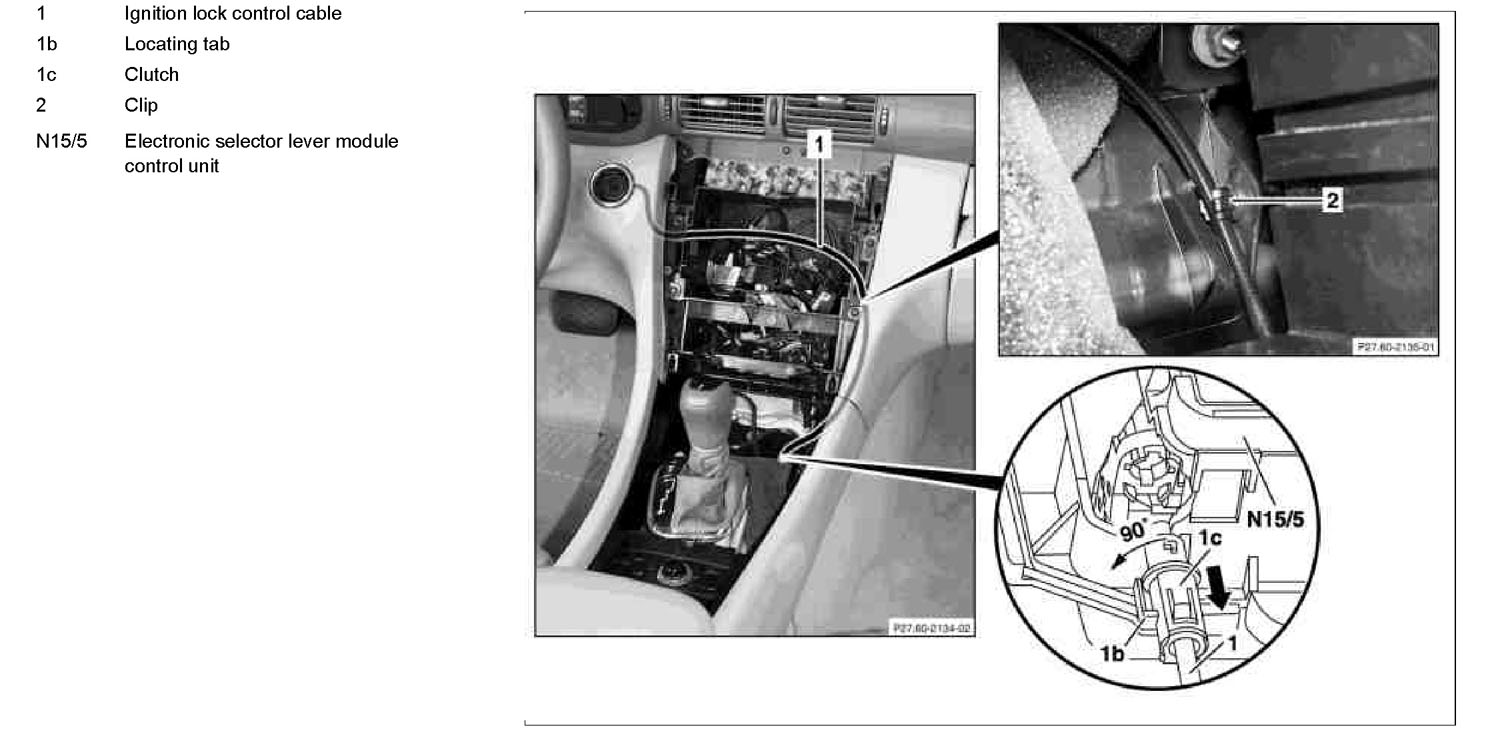

Component Identification:

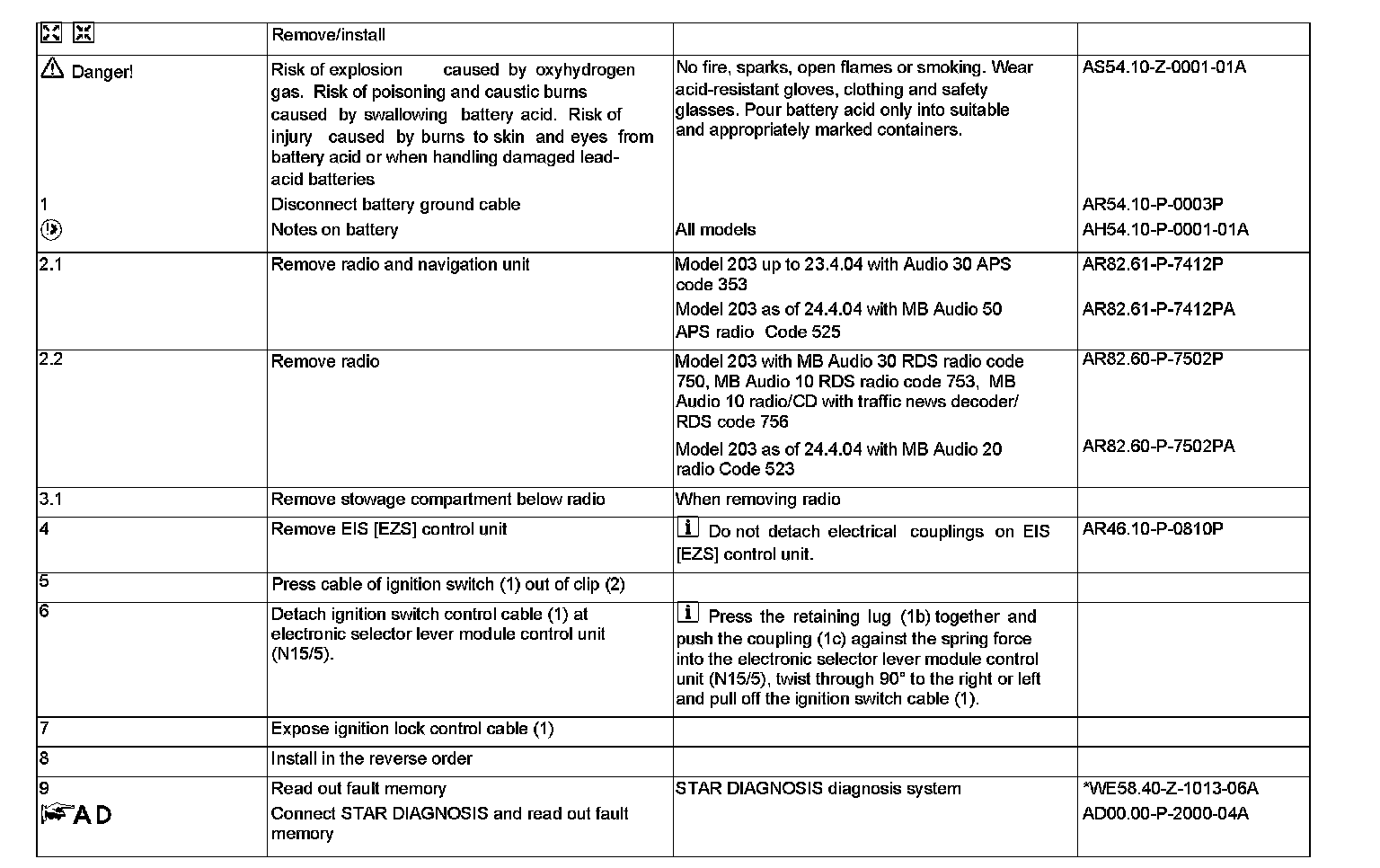

Steps 1 - 9:

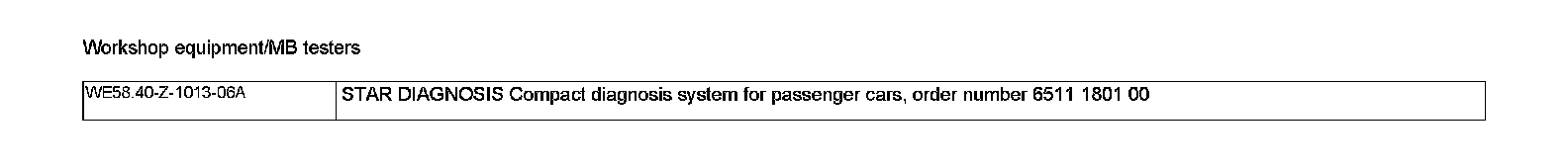

Workshop Equipment/MB Testers:
