Home >> Mercedes Benz >> 2004 >> C 32 AMG (203.065) V6-3.2L SC (112.961) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Vacuum/Pressure Pump Switch >> Service and Repair

Vacuum/Pressure Pump Switch: Service and Repair

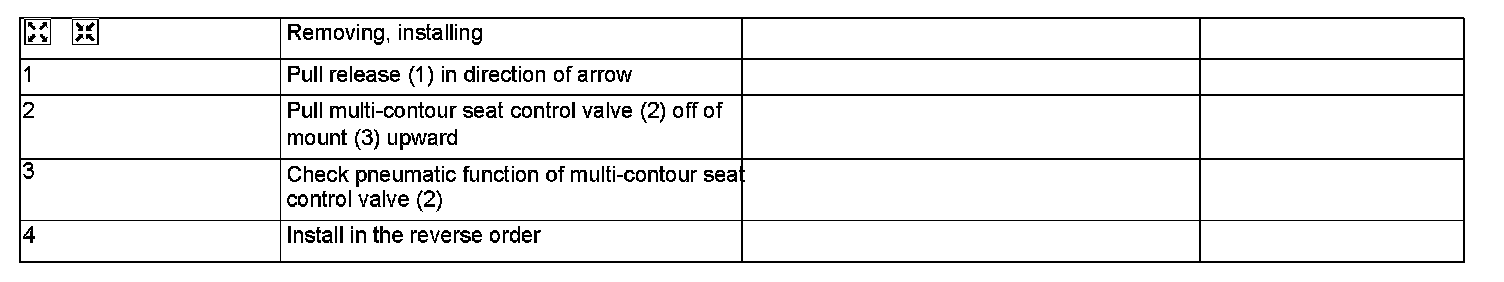

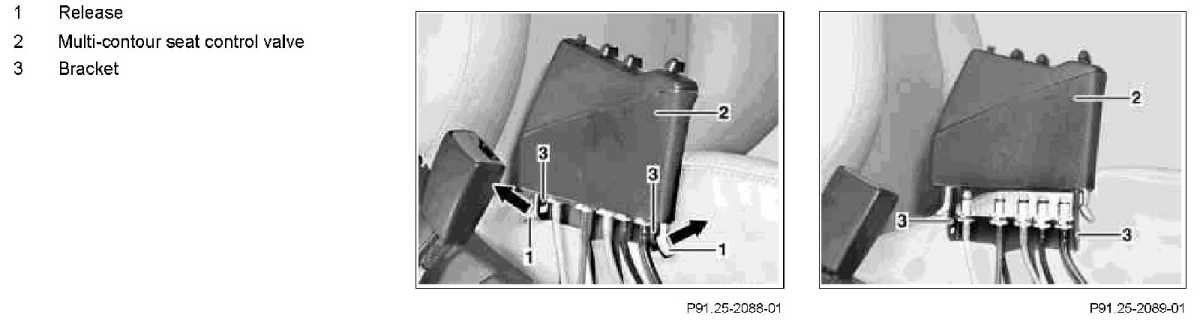

AR91.25-P-1710P Remove/Install Multi-Contour Seat Control Valve
- with CODE (404a) Left multi-contour seat
