Electronic Transmission Control (ETC) Control Module PE27.19-U-2101FB (As of 12/1/04)



Electronic Transmission Control (ETC) Control Module PE27.19-U-2101FB (As of 12/1/04)
- Transmission 722.9

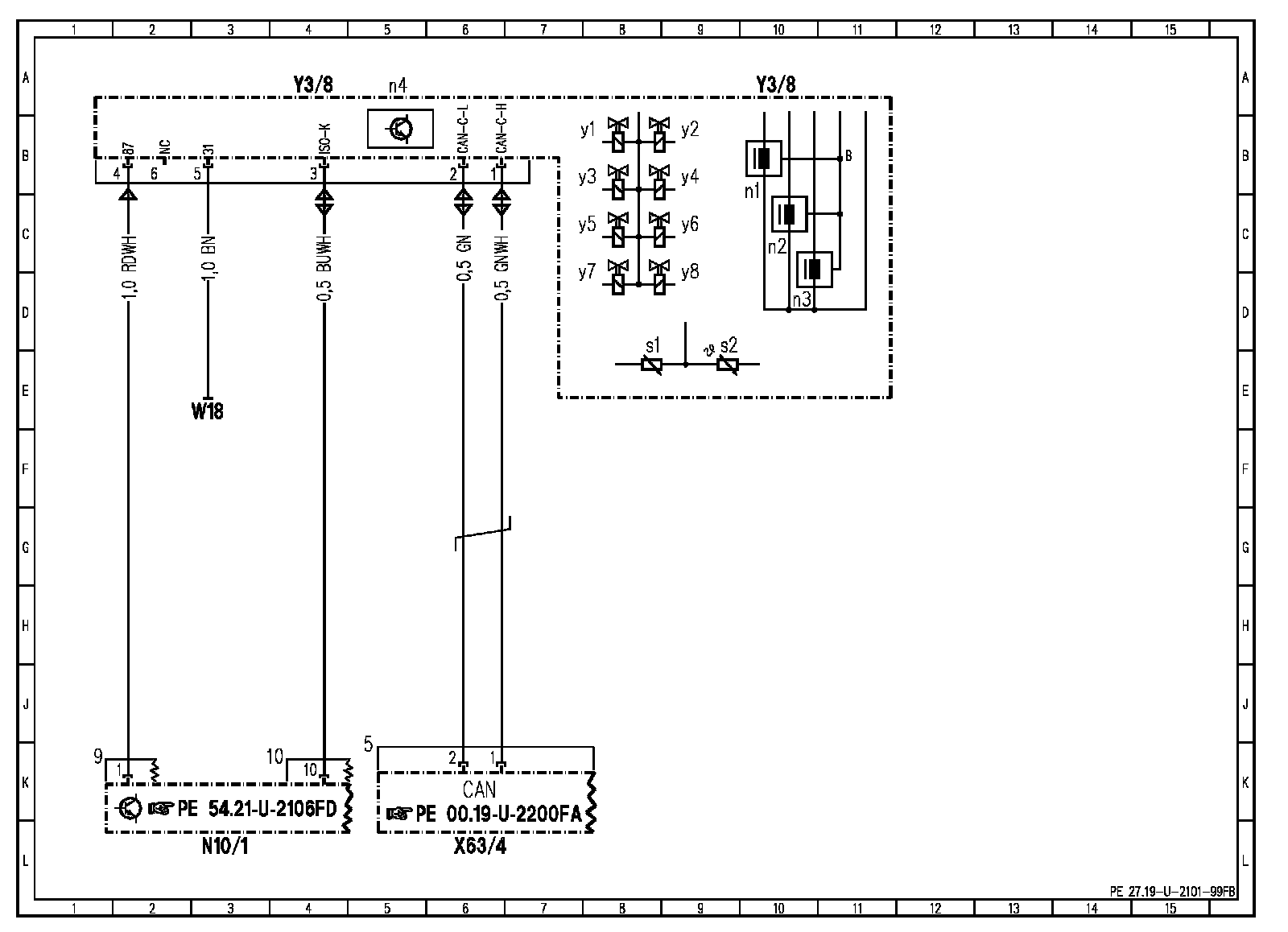

Wiring Diagram:

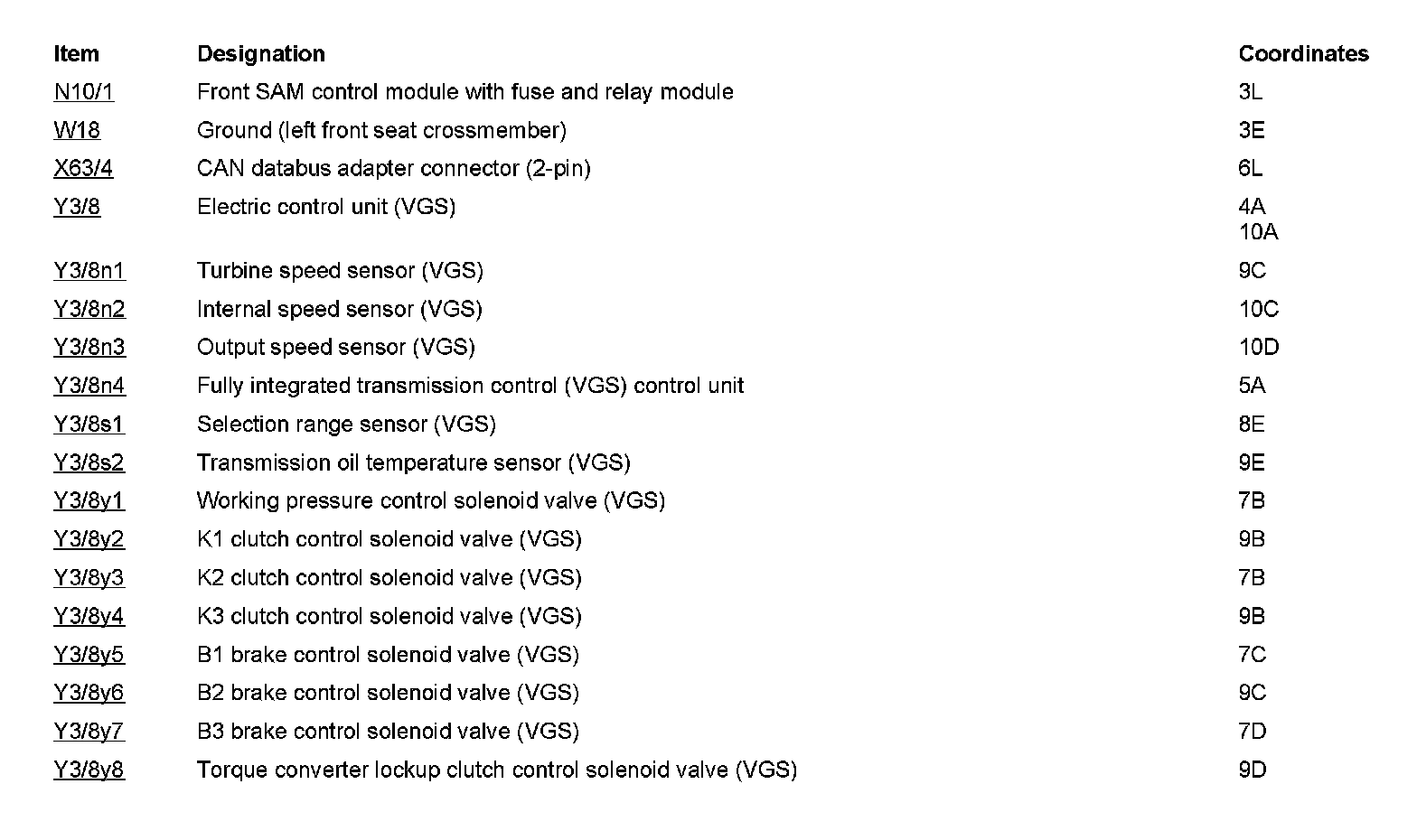

Component Description/Coordinates, N10/1 To Y3/8y8:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
