AR14.00-P-5303PV Remove/Install an Oxygen Sensor



AR14.00-P-5303PV Remove/install an oxygen sensor

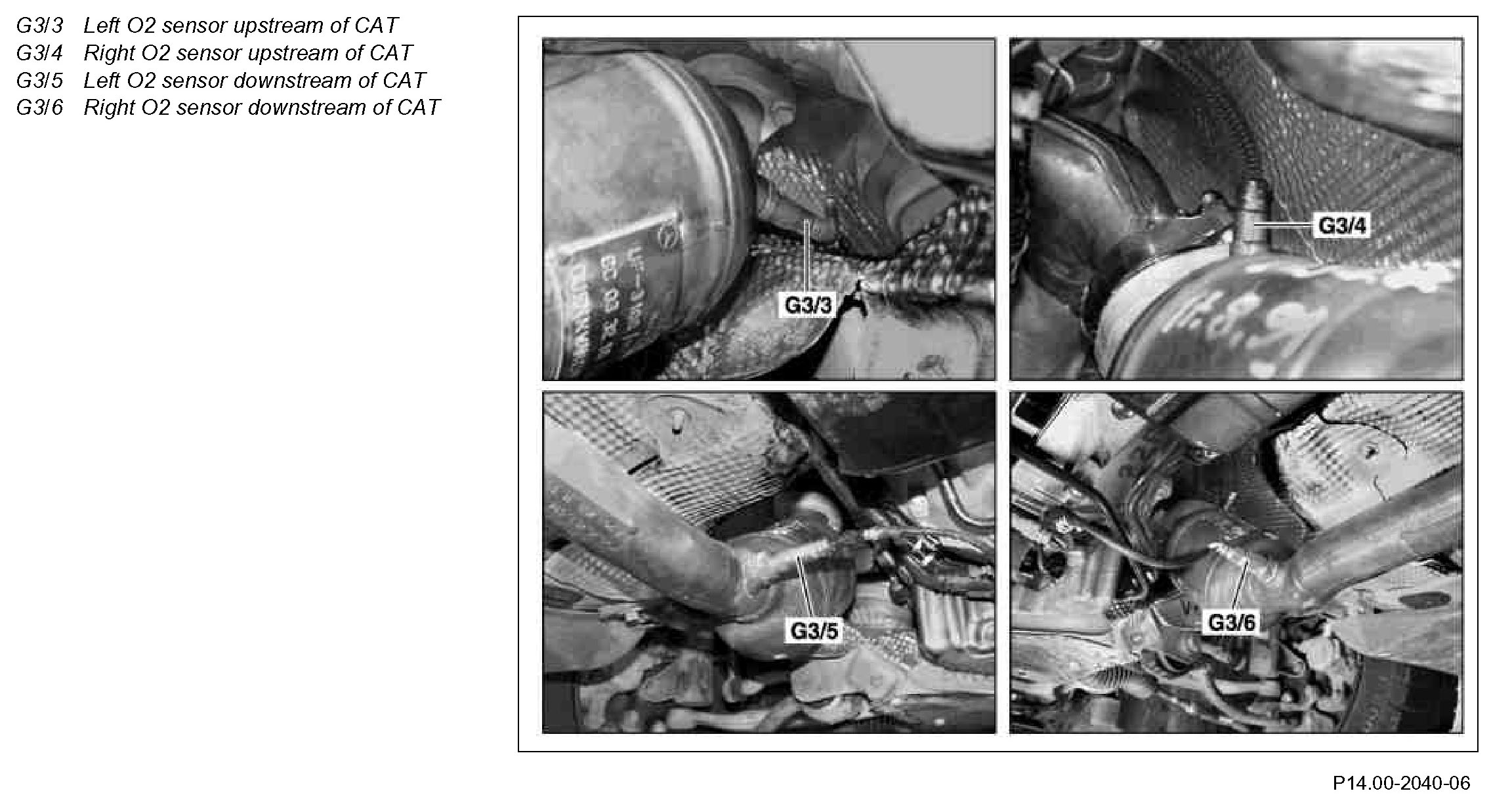

Component Identification:

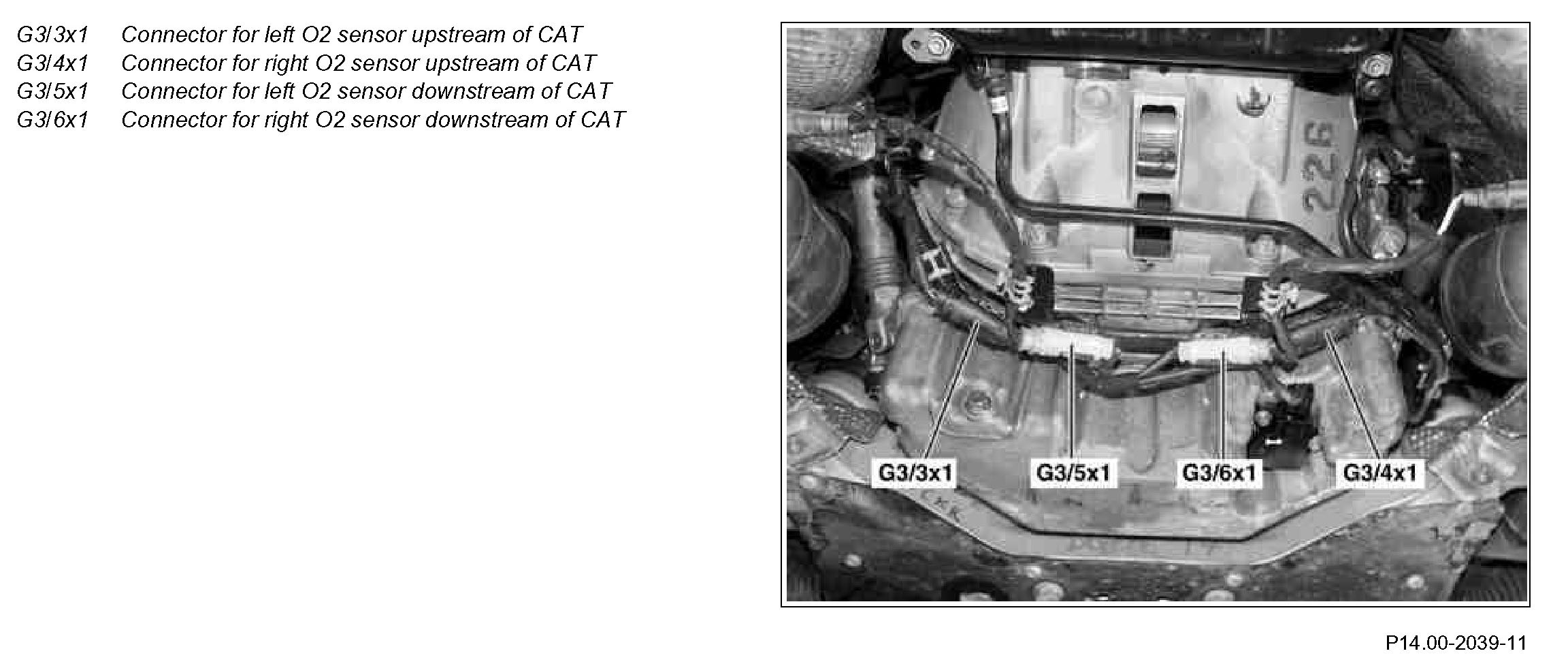

Component Identification:

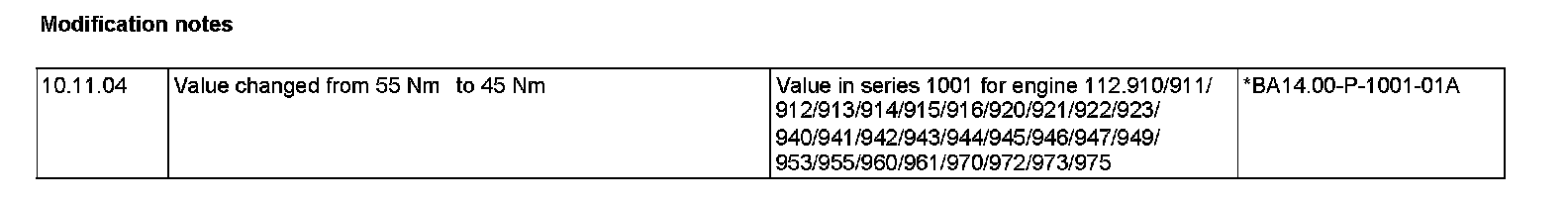

Modification notes:

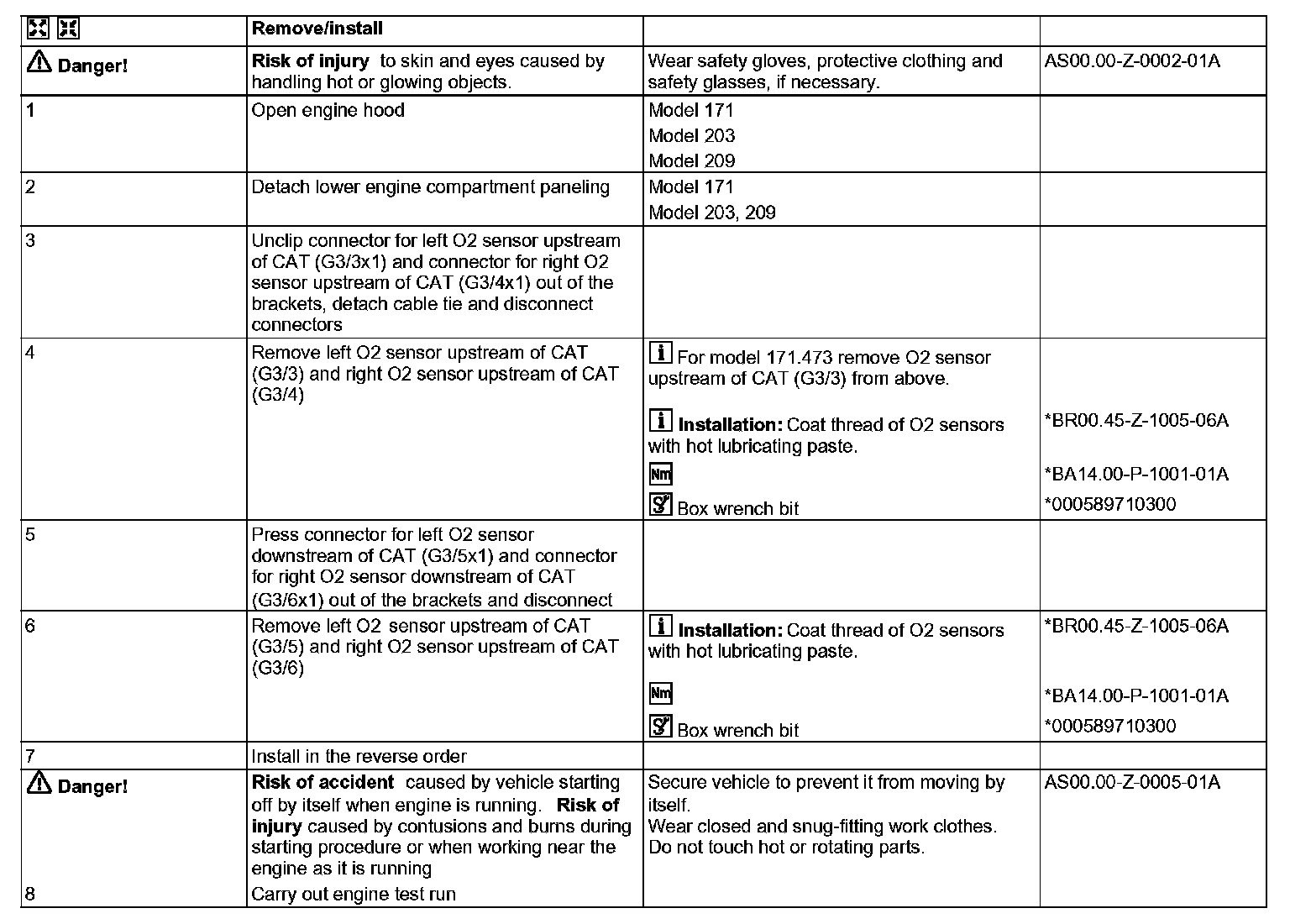

Steps 1-8:

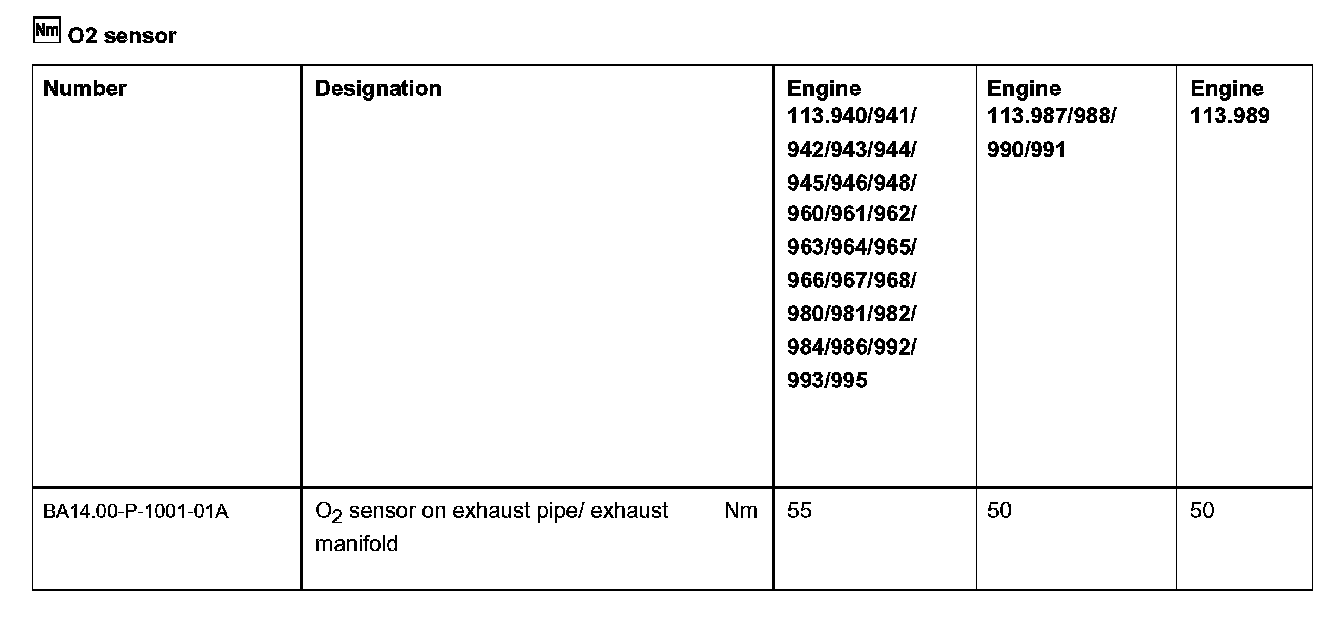

O2 sensor:

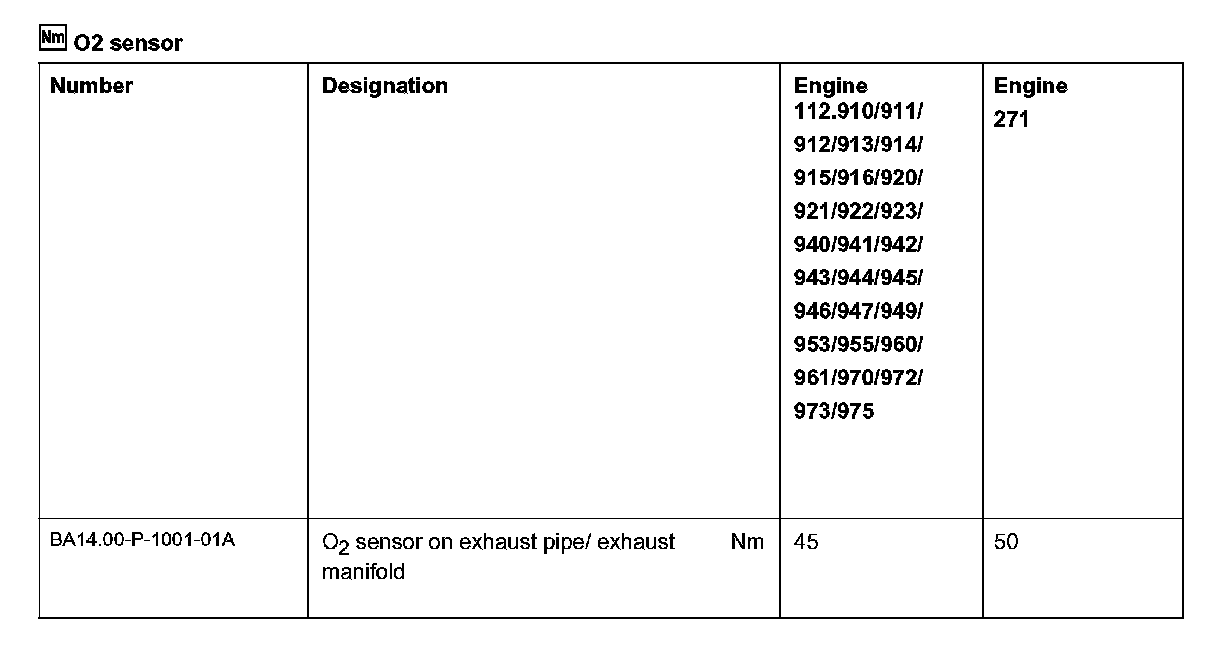

O2 sensor:

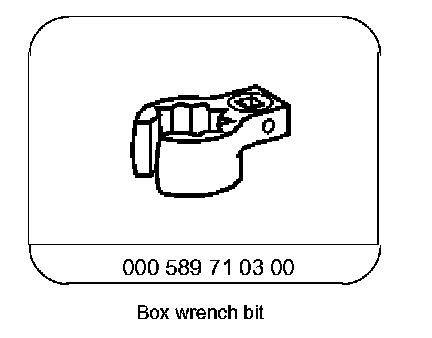

Special Tools:

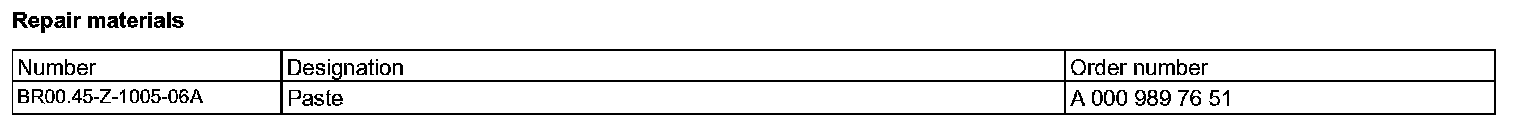

Repair materials:
