GF07.61-P-0001-10H ME-SFI Fuel Injection and Ignition System Engine Electronics Ignition System General Information

GF07.61-P-0001-10H ME-SFI Fuel Injection And Ignition System Engine Electronics Ignition System General Information

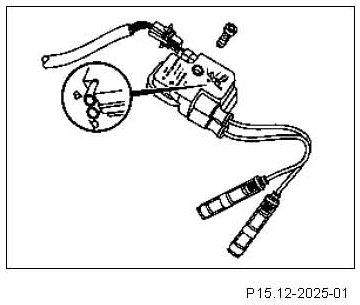

a High voltage connection (1)
b High voltage connection (2)

The entire ignition system of the supercharged engine M112K is identical to the ignition system of the naturally aspirated engine M112

On model 170 high voltage ignition cables with a temperature-resistant Teflon coating are used at the two rear cylinders (coils) 3 and 6

These special high voltage ignition cables are recognizable from the white marking.
