Air Temperature Sensor ( Ambient / Intake )
>>
Locations
>>
Charge Air Temperature Sensor
Charge Air Temperature Sensor

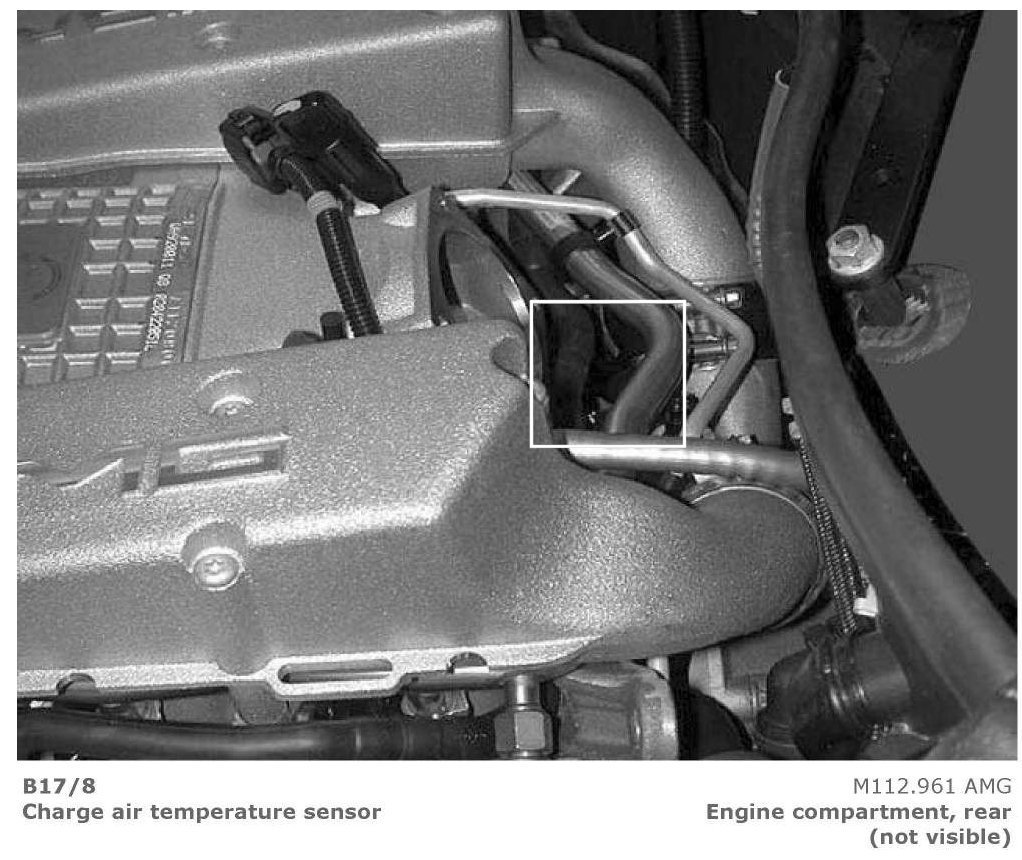

Charge Air Temperature Sensor (View 1):

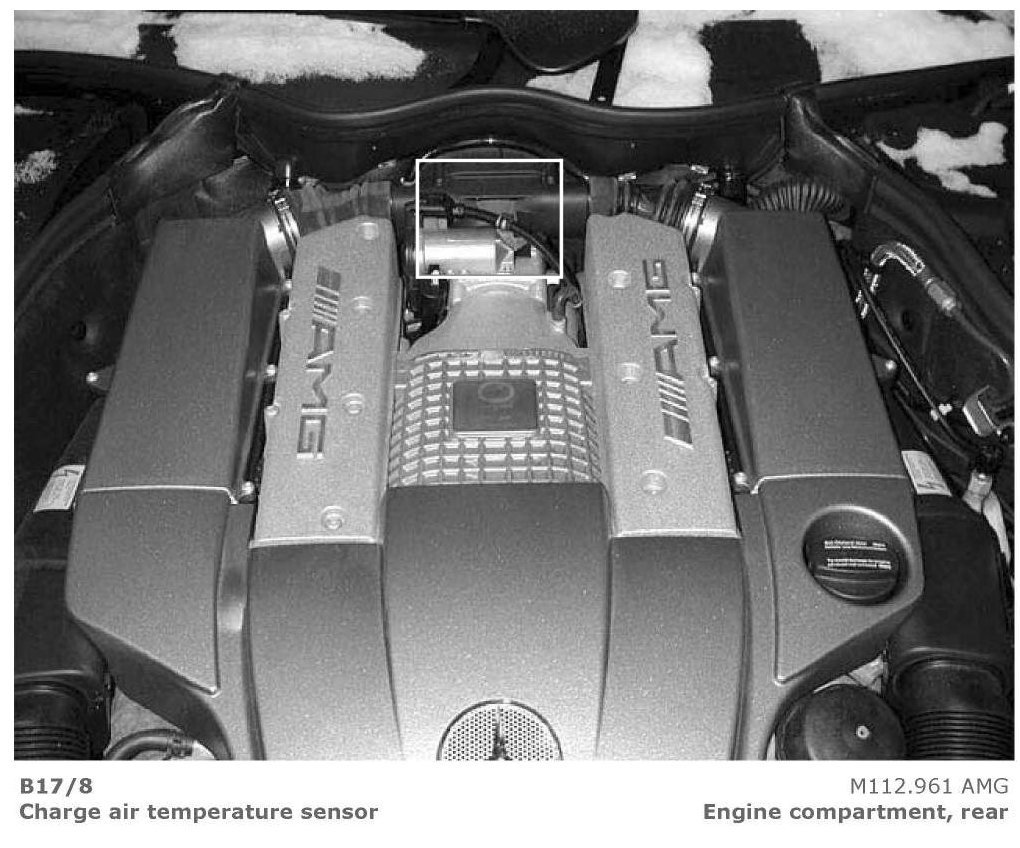

Charge Air Temperature Sensor (View 2):
