AR54.18-P-0040P Remove/Install Rear Axle Headlamp Range Adjustment Sensor Wiring Harness



AR54.18-P-0040P Removing And Installing Rear Axle Headlamp Range Adjustment Sensor Wiring Harness
- with CODE (612b) Xenon headlamp unit

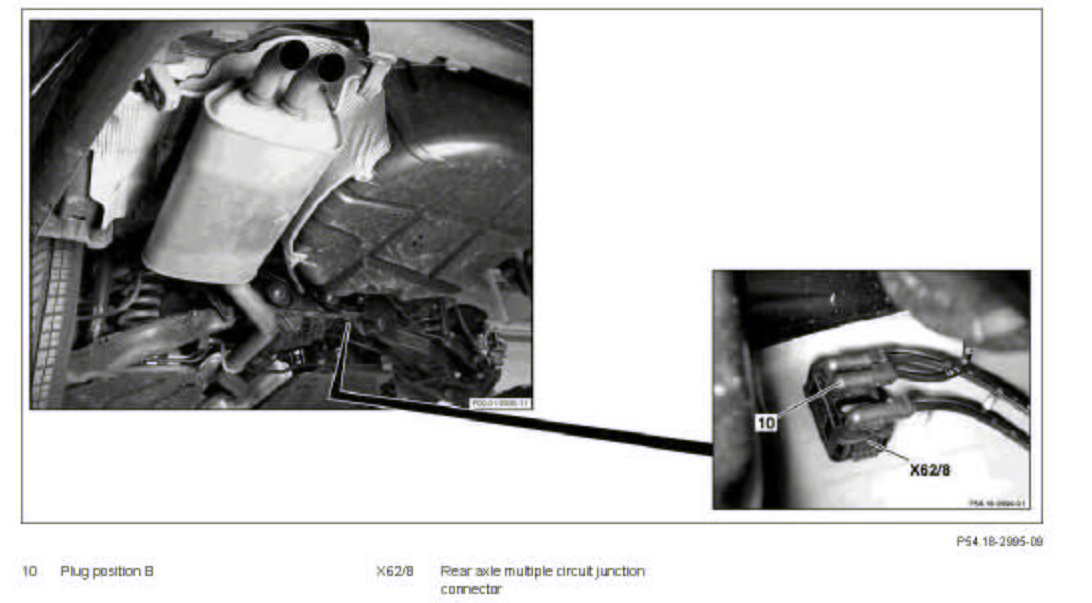

Component Identification:

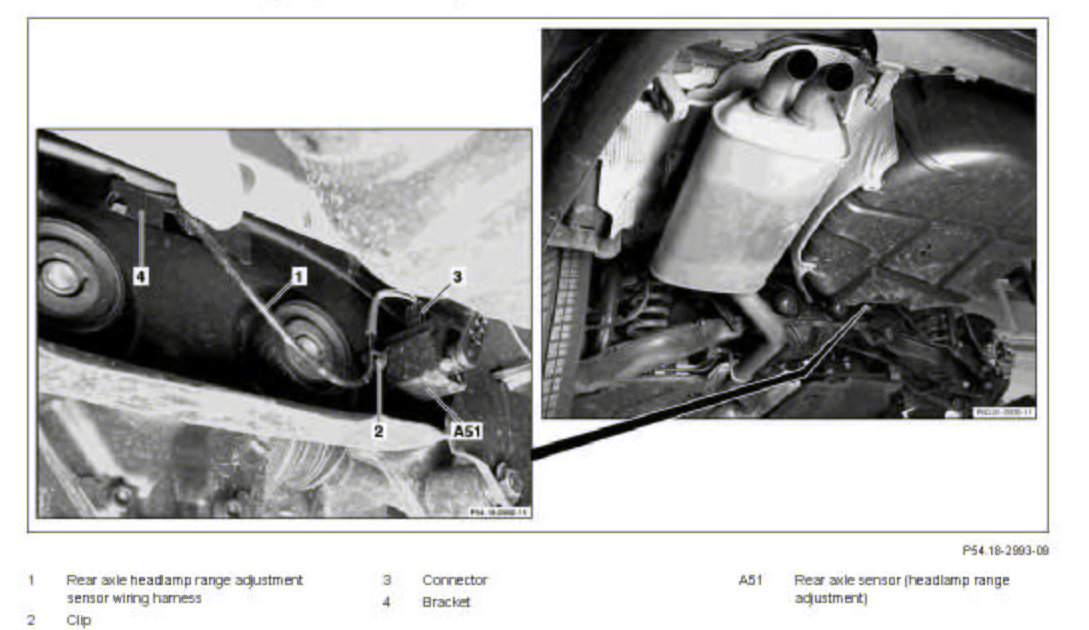

Component Identification:

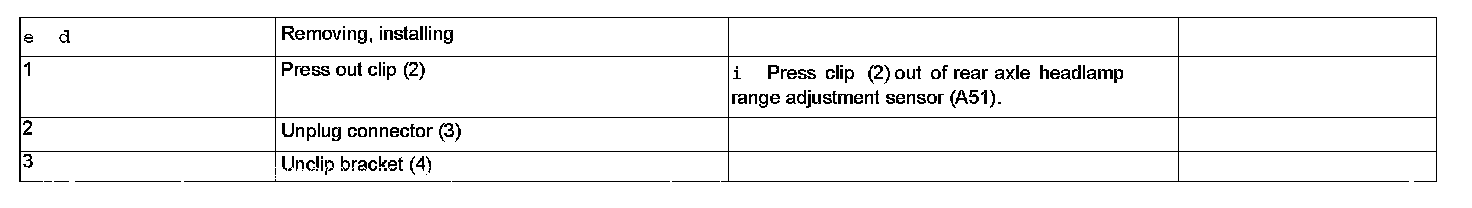

Steps 1 - 3:
