Digital Data Bus (D2B) PE82.00-U-2700FA




Digital Data Bus (D2B) PE82.00-U-2700FA

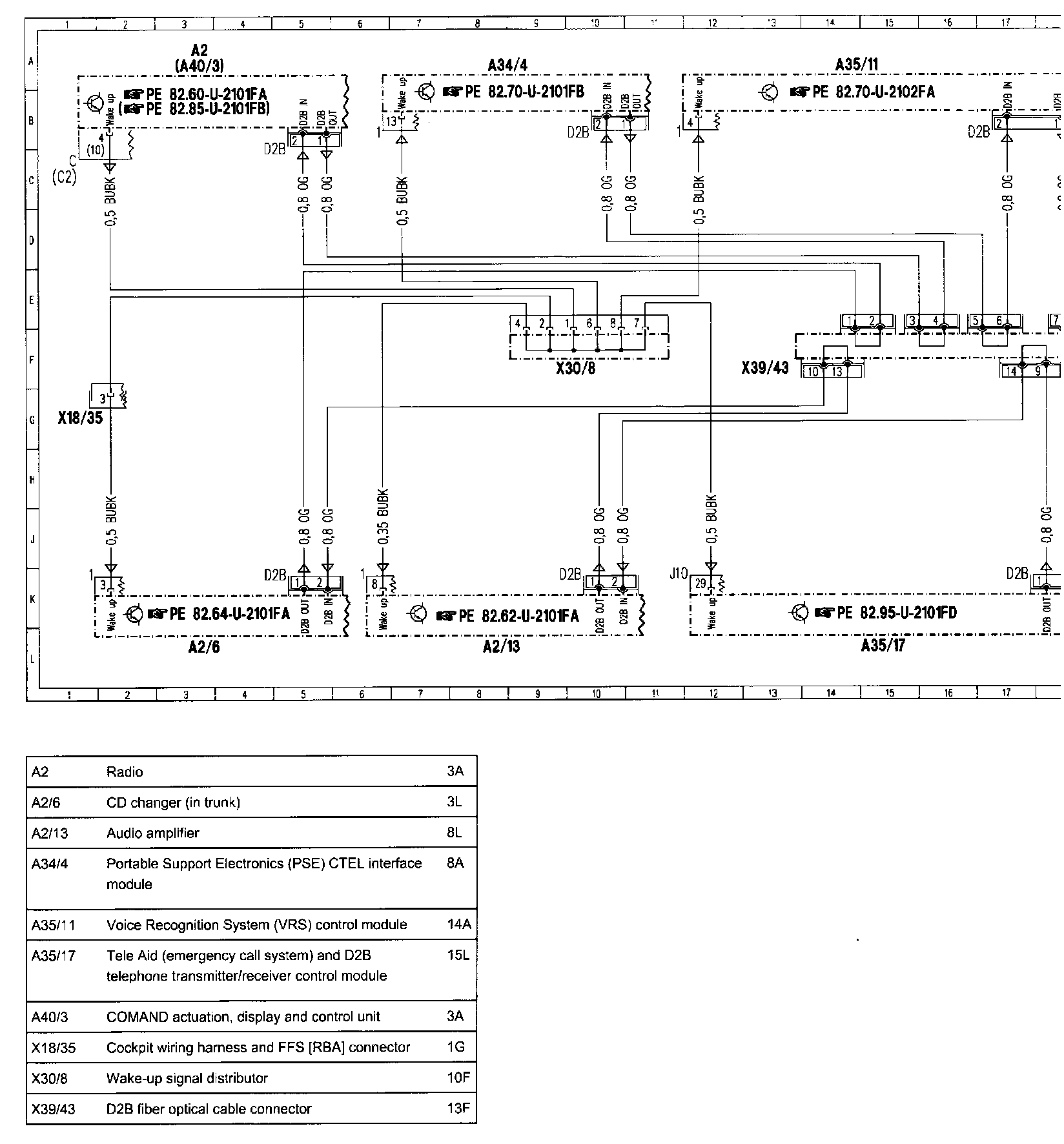

���Wiring Diagram PE82.00-U-2700FA:






Pin Information:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
