Anti-Theft Alarm System (ATA) PE80.50-U-2000FB, Sheet 2

Anti-Theft Alarm System (ATA) PE80.50-U-2000FB, Sheet 2

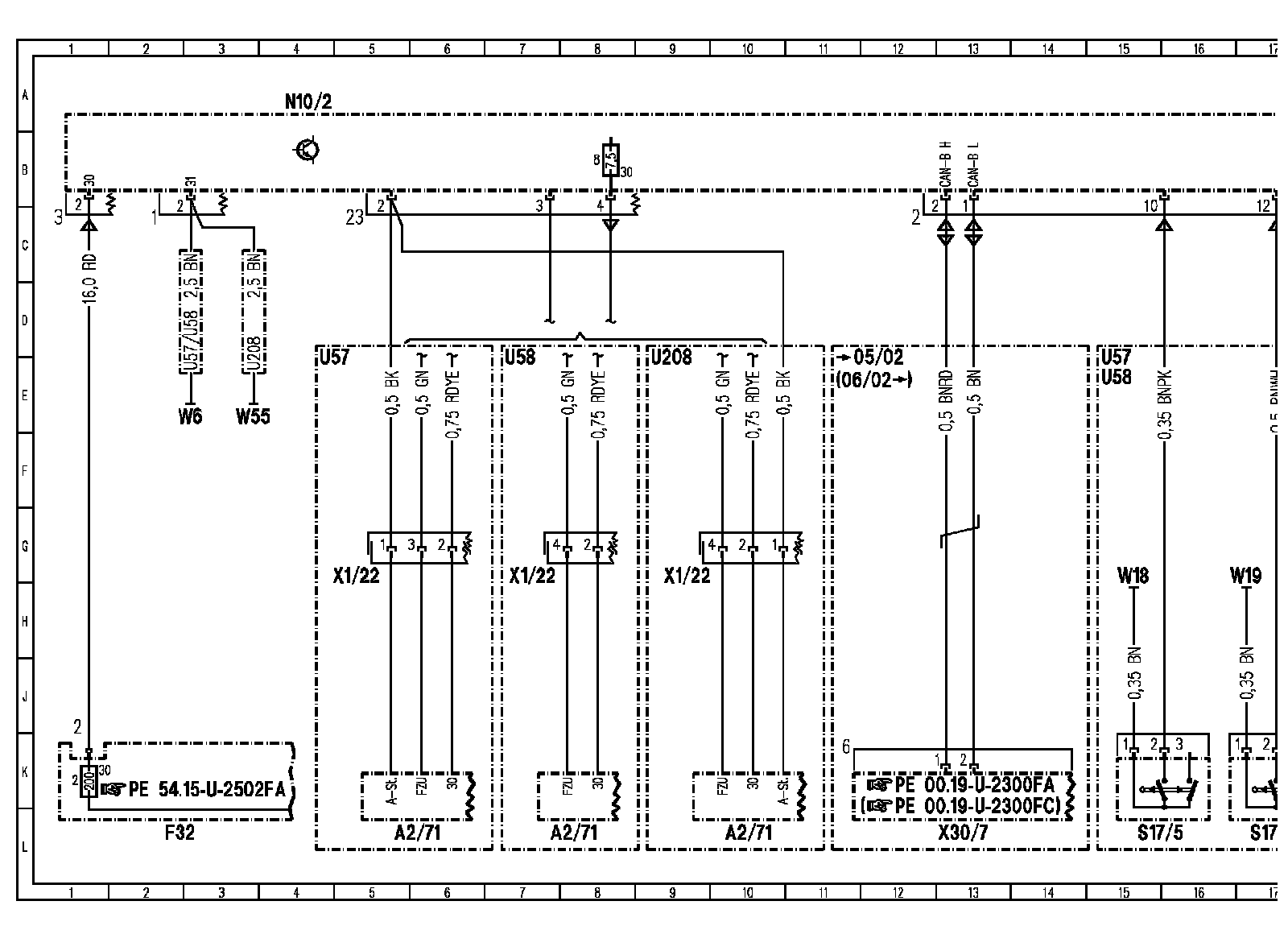

Wiring Diagram, Part 1:

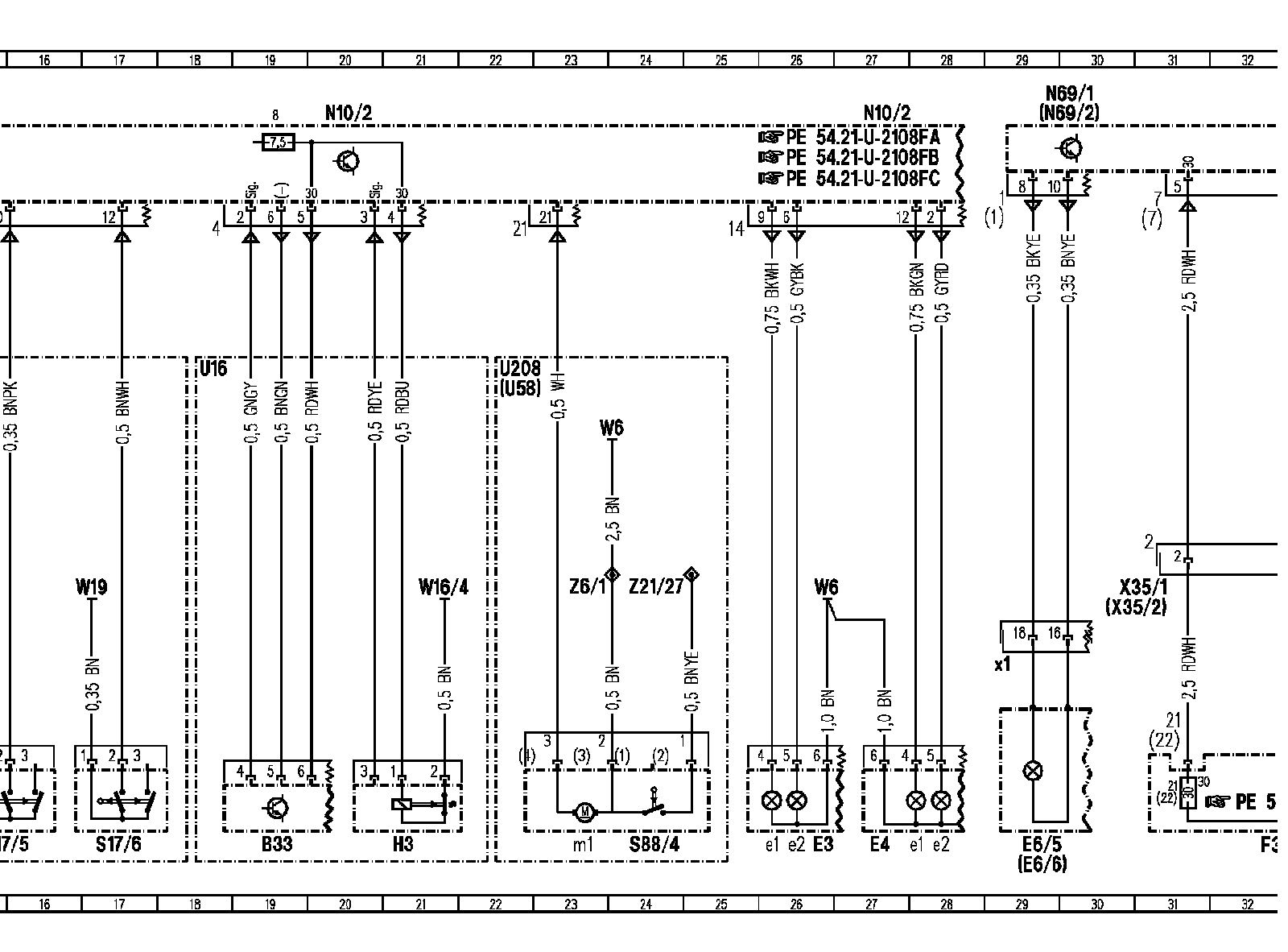

Wiring Diagram, Part 2:

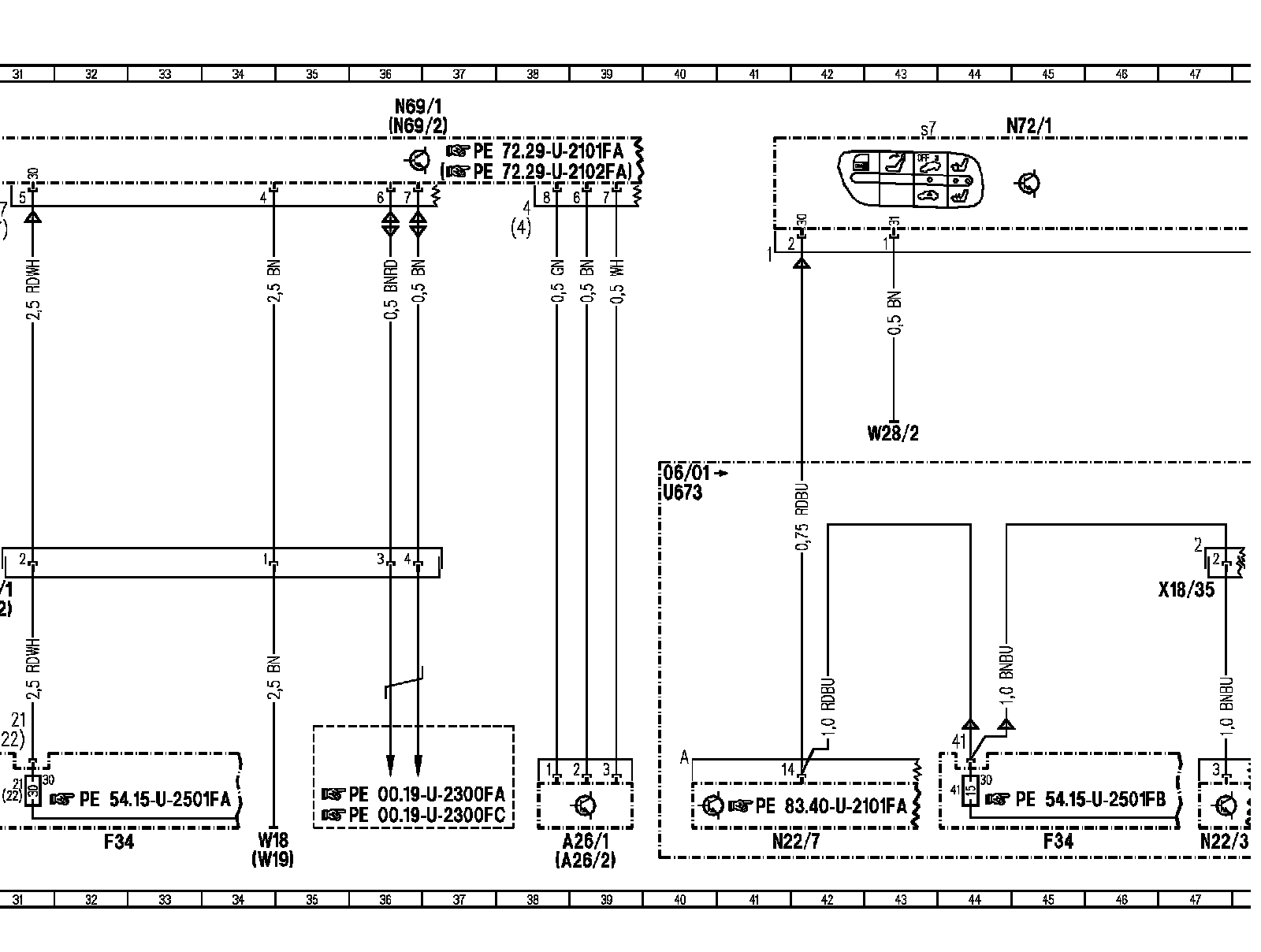

Wiring Diagram, Part 3:

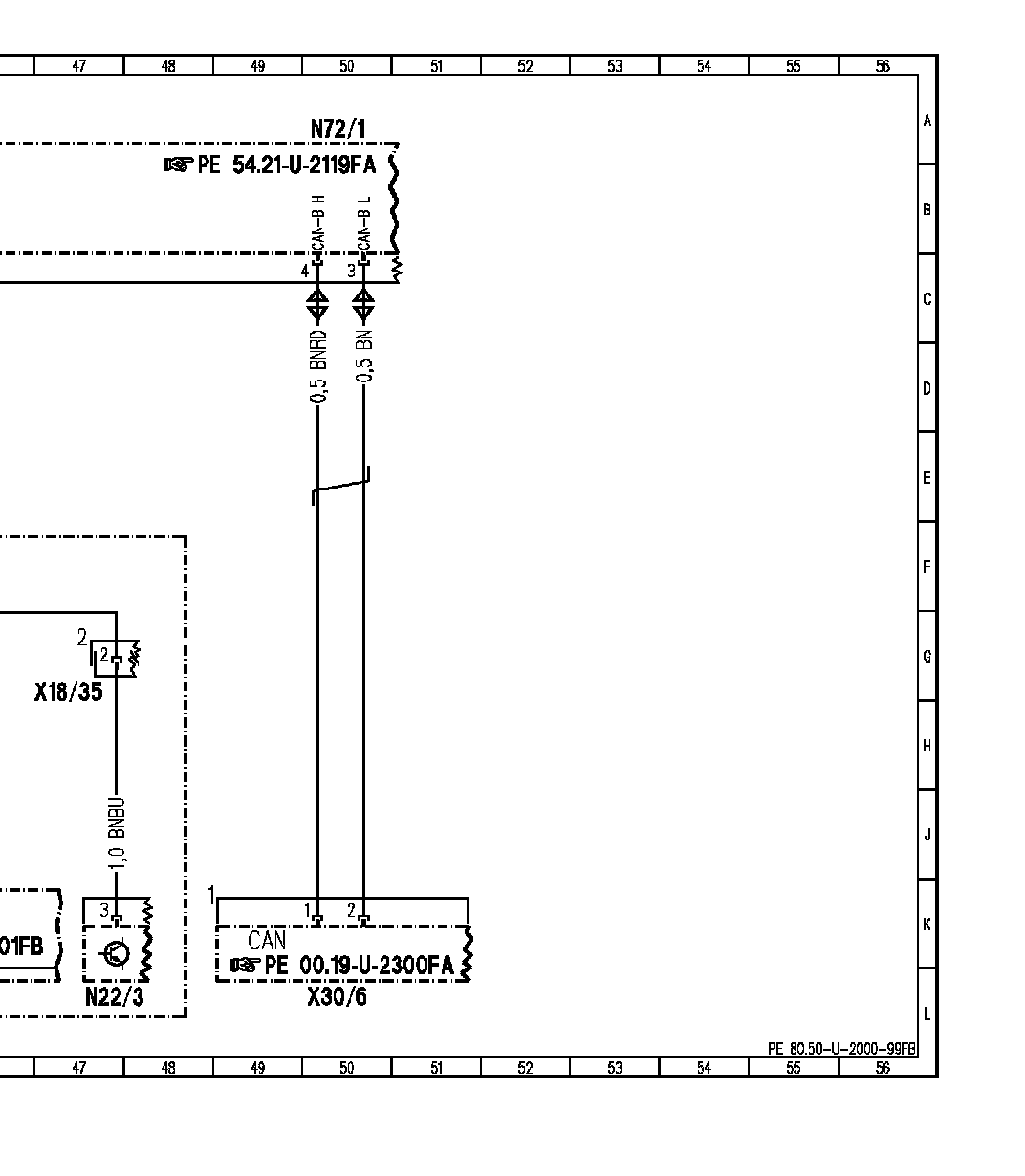

Wiring Diagram, Part 4:

Component Description,Coordinates, A2/71 To Z21/27:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
