Rear Subframe: Service and Repair

AR35.10-P-0050-01AF Attaching Front Center Assembly Suspension
- HA-210E centerpiece









Model 203

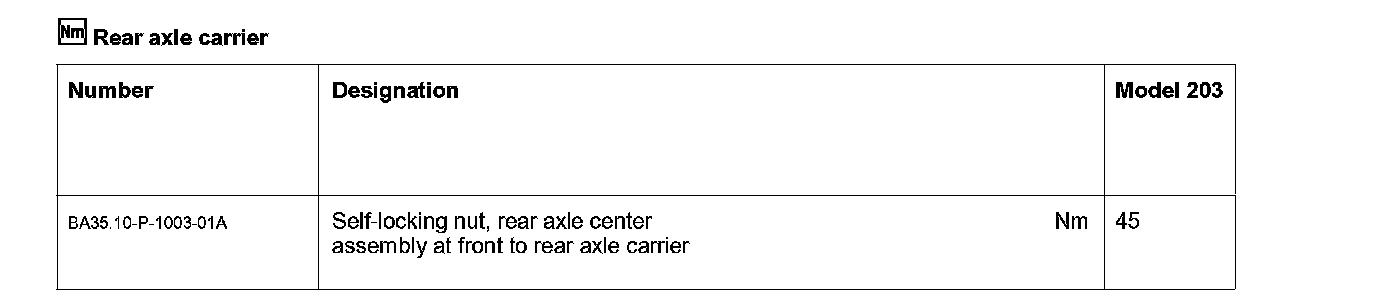

1 Replace self-locking nut or plate with integral lock nut (60a).
1 or 2 shims (60e) may be installed for the rear axle center assembly depending on the version.

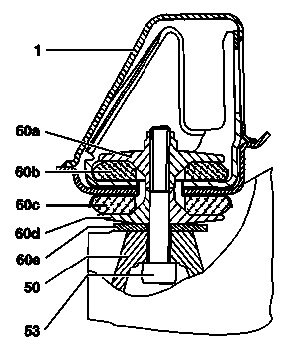

1 Rear axle carrier
50 Rear axle center assembly
53 Hexagon socket bolt
60a Self-locking nut or plate with integral lock nut
60b Upper rubber mount
60c Lower rubber mount
60d Long plate
60e Shim
