Home >> Mercedes Benz >> 2004 >> C 32 AMG (203.065) V6-3.2L SC (112.961) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Release Lever >> Service and Repair

Trunk / Liftgate Release Lever: Service and Repair



AZ88.50-P-0002PD Retrofitting Trunk Lid Emergency Release

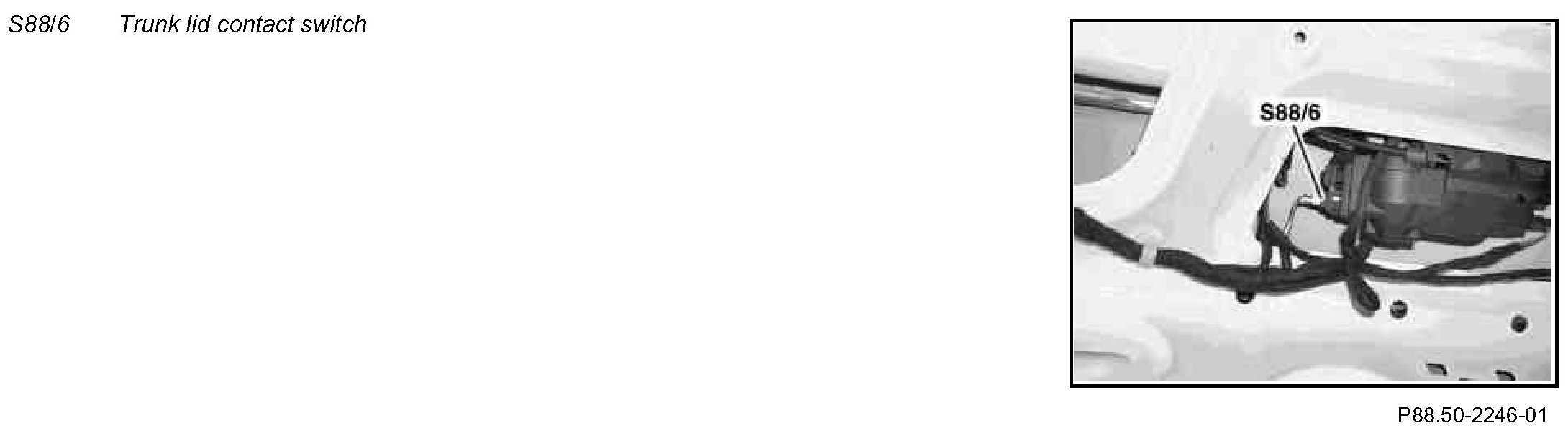

Component Identification:

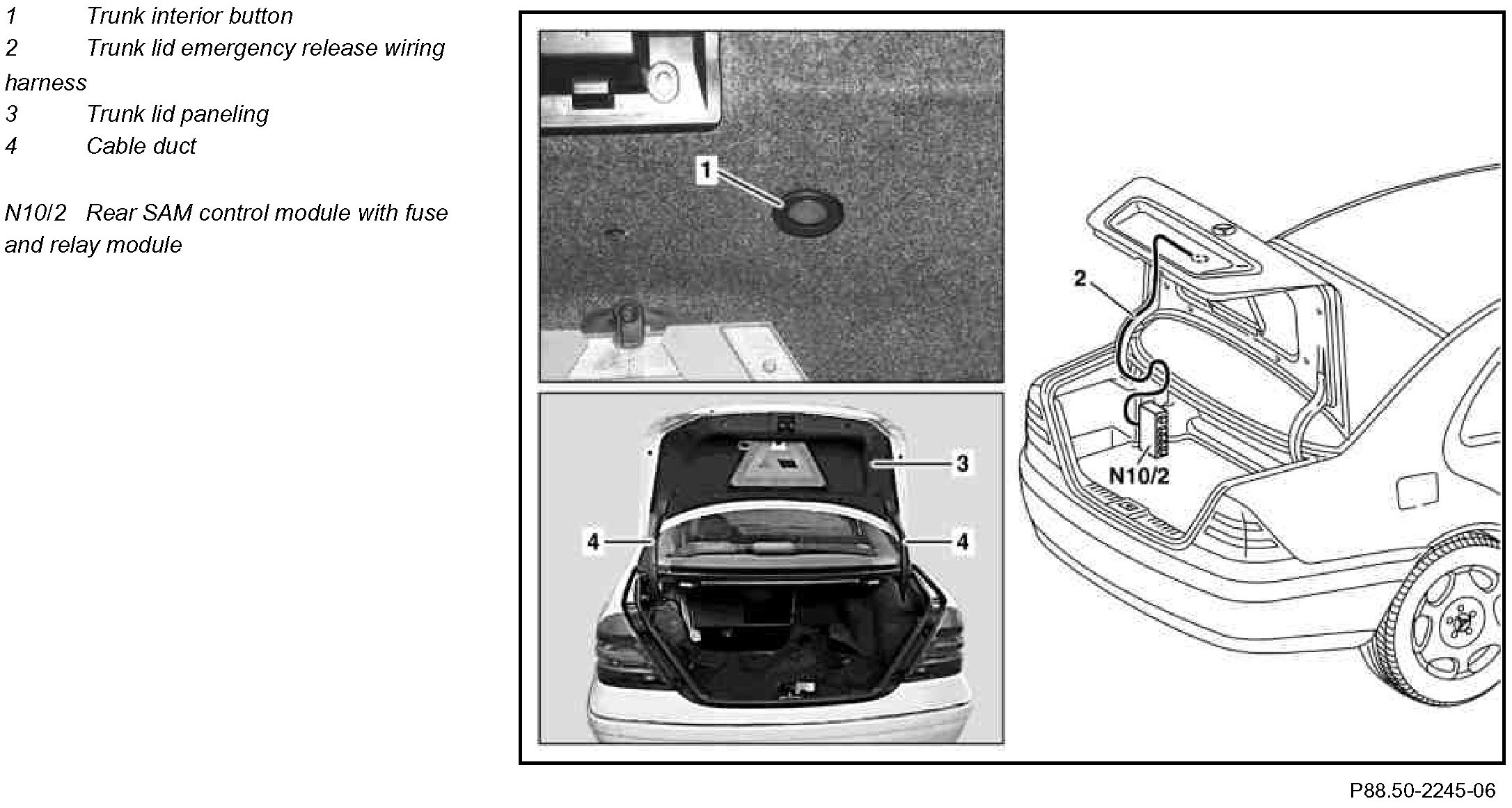

Component Identification:

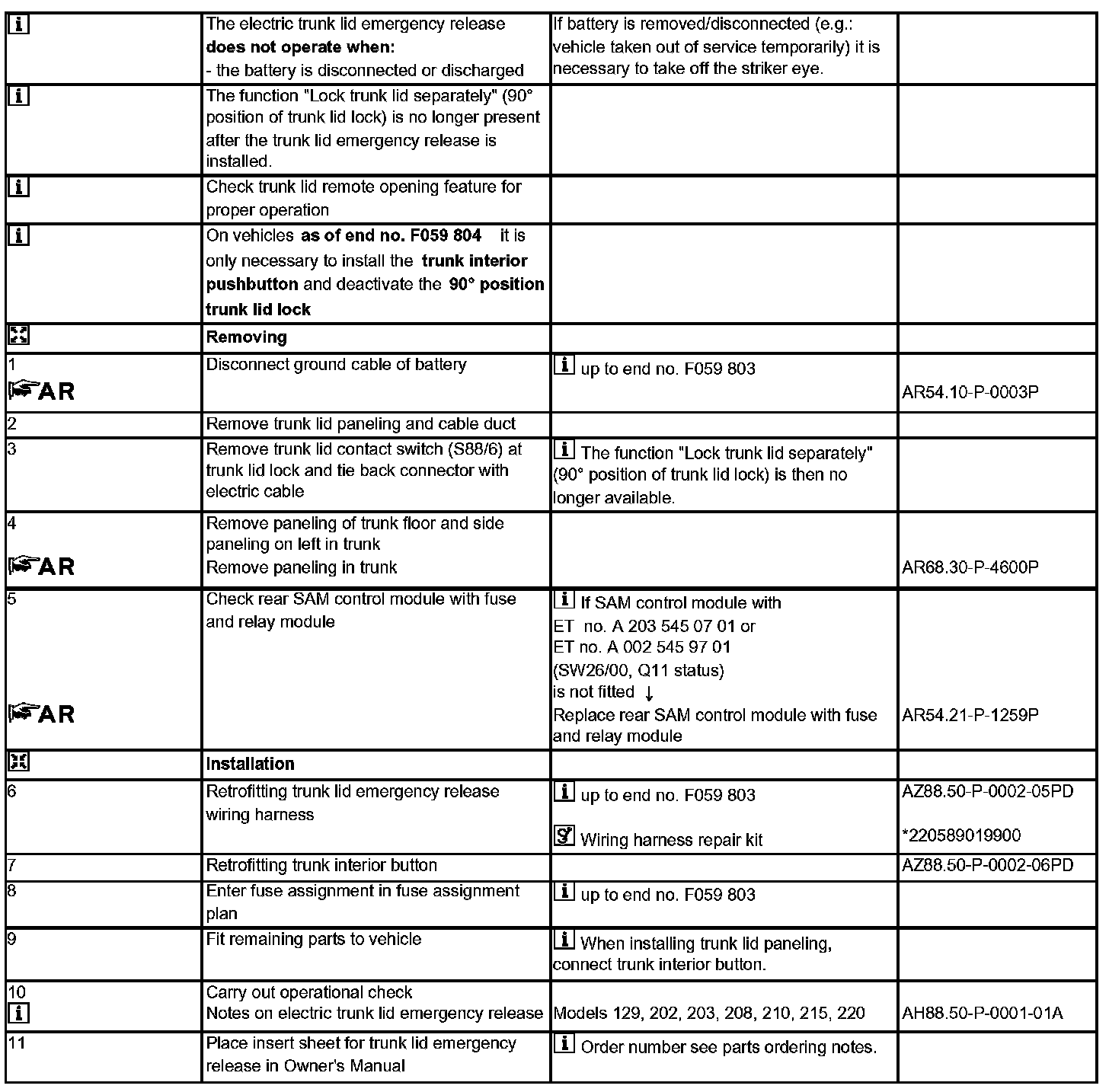

Steps 1 - 11:

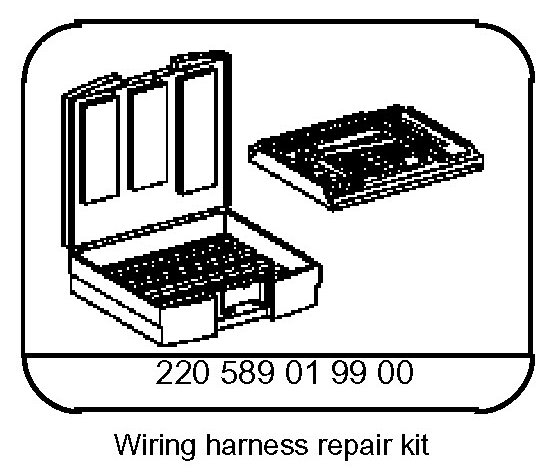

Special Tools:




Parts Ordering Notes:
