AZ88.50-P-0003P Retrofit Hotel Lock (90� Position).

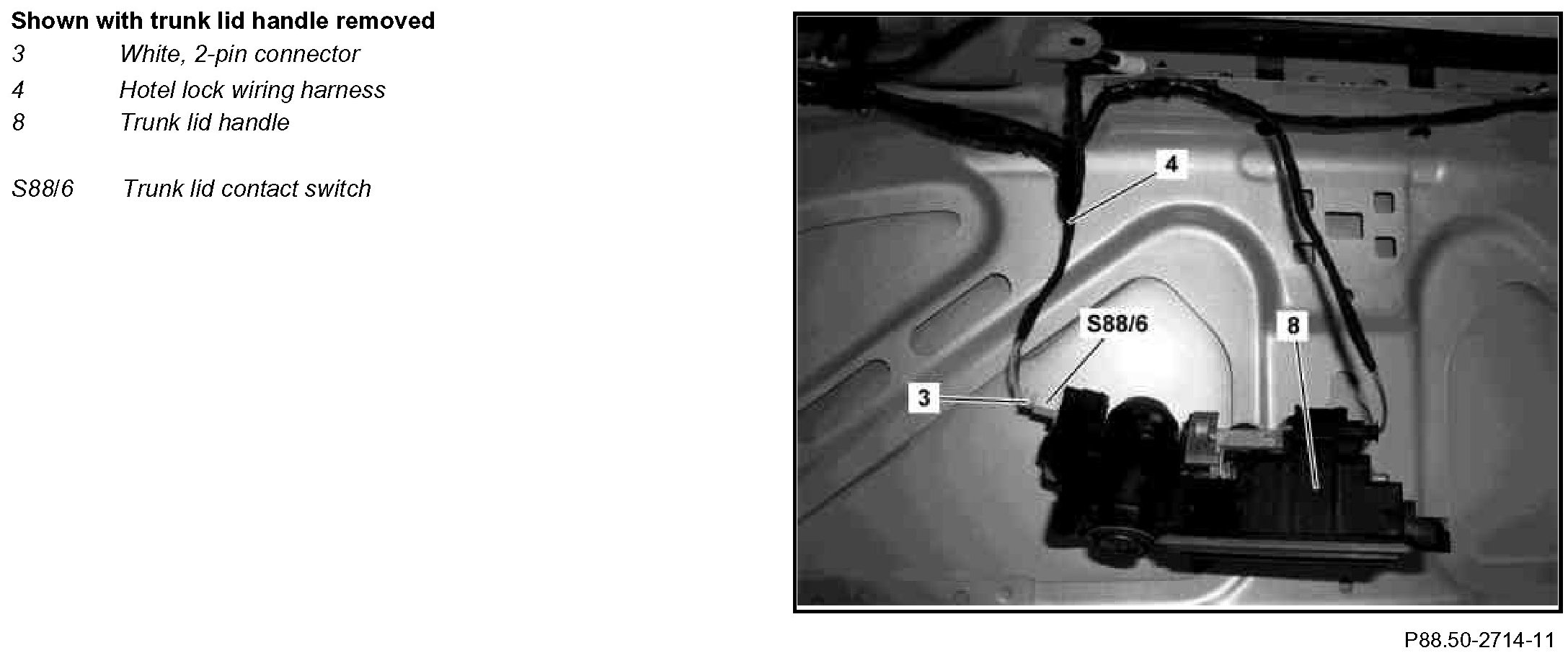

Component Identification:

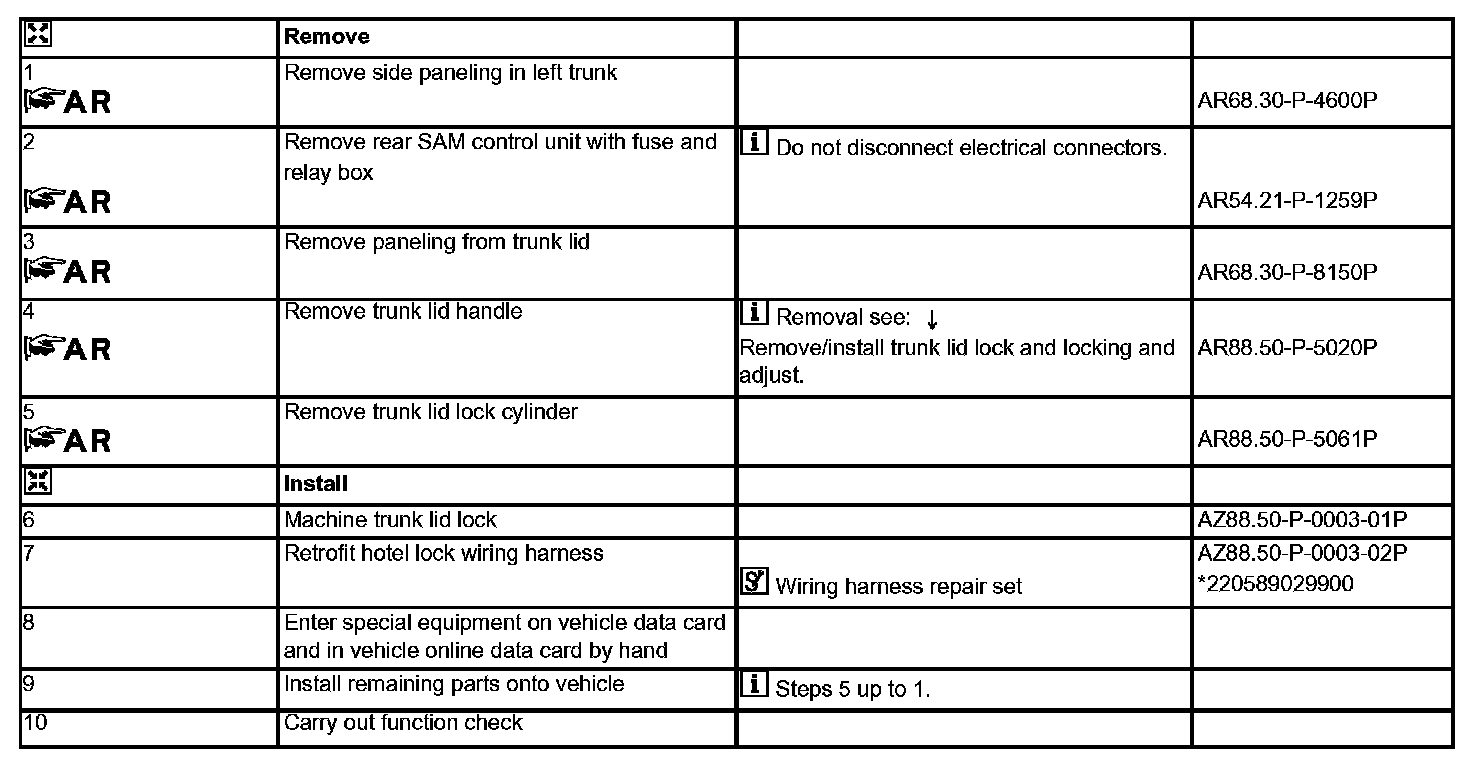

Steps 1 - 10:

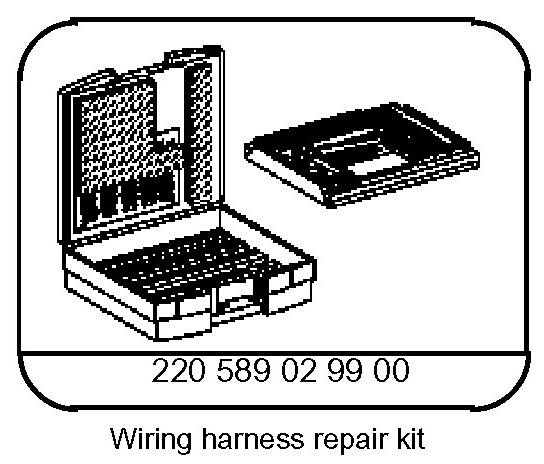

Special Tools:

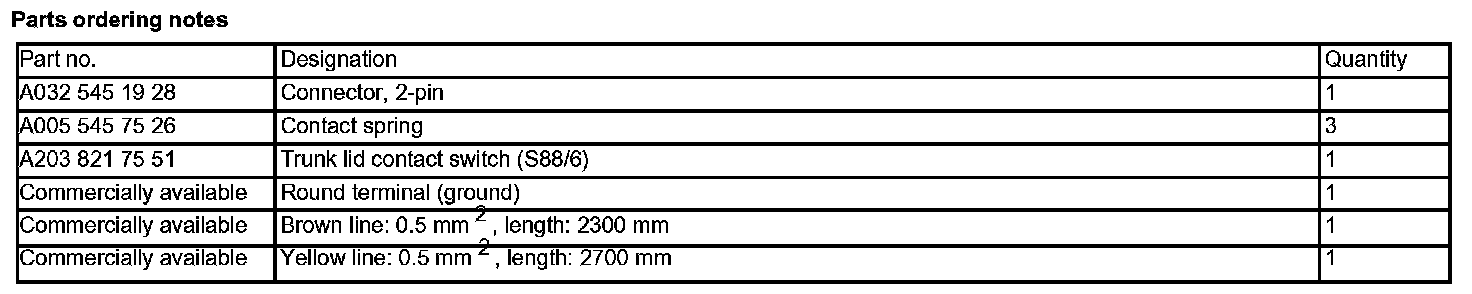

Parts Ordering Notes:
