Trunk / Liftgate Interior Trim Panel: Service and Repair
AZ68.30-P-0002P Retrofitting Drawer Below
Rear Shelf

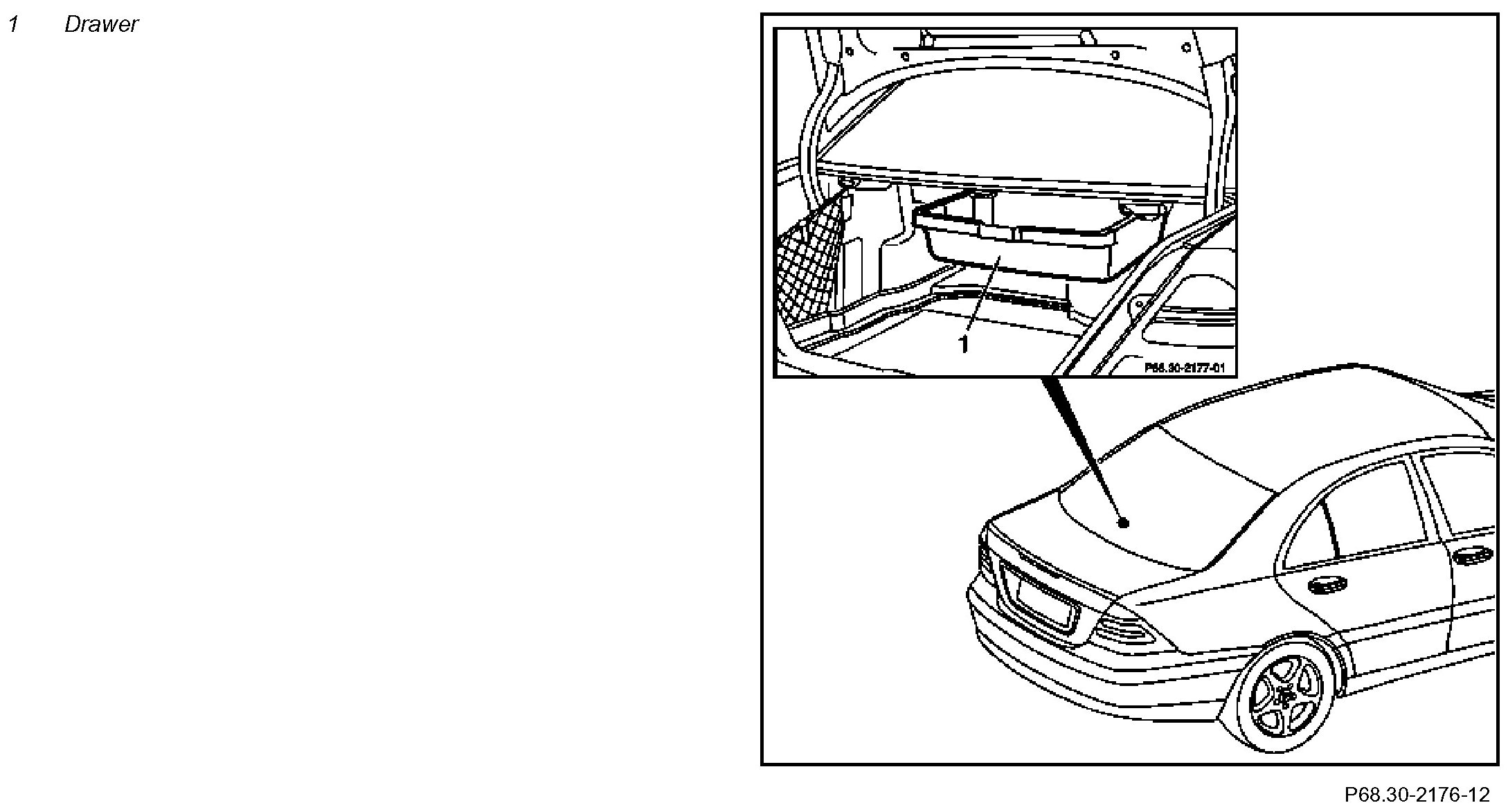

Component Identification:

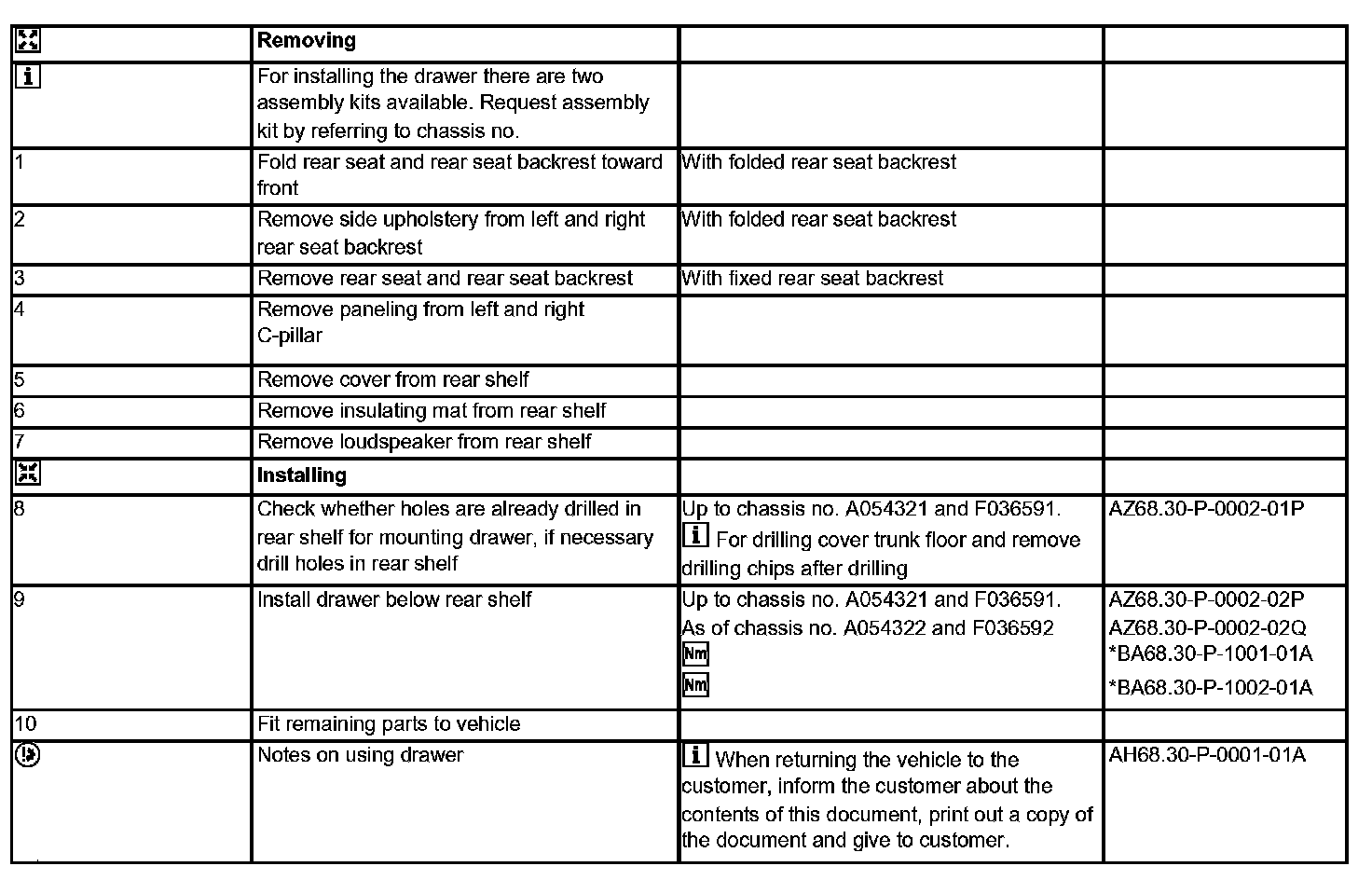

Steps 1 - 10:

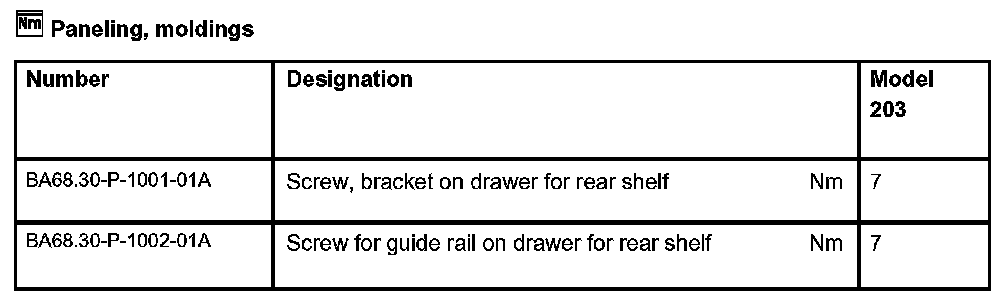

Paneling, Moldings:

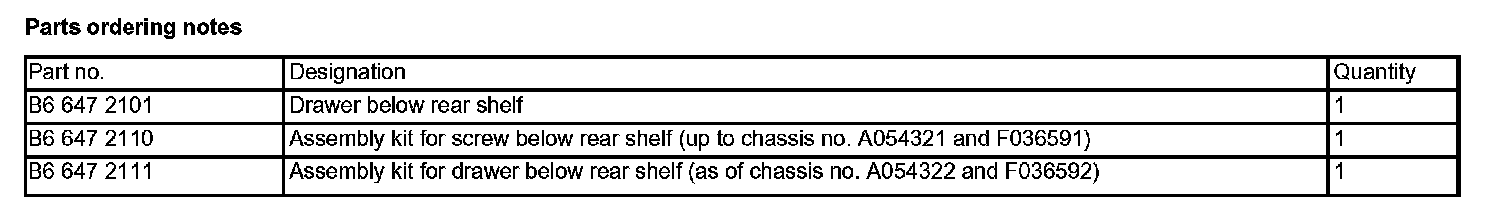

Parts Ordering Notes:
