Home >> Mercedes Benz >> 2004 >> C 32 AMG (203.065) V6-3.2L SC (112.961) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Front Door Latch >> Service and Repair

Front Door Latch: Service and Repair



AR72.10-P-4011P Remove/Install Front Door Lock

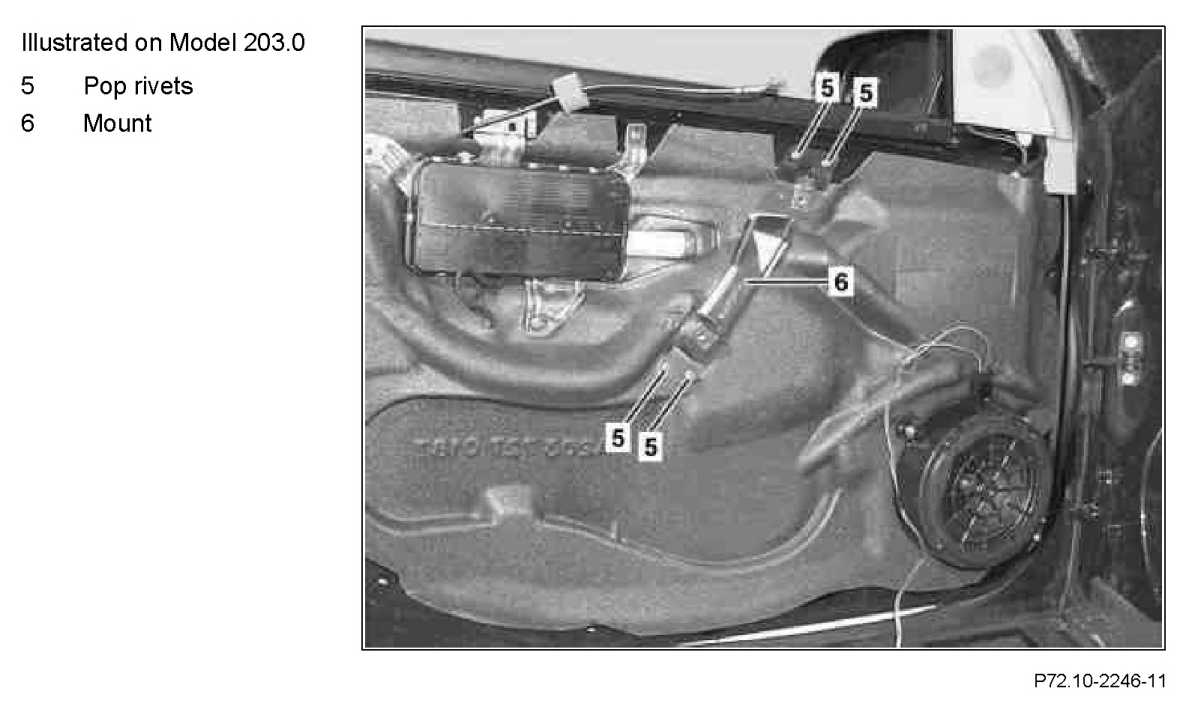

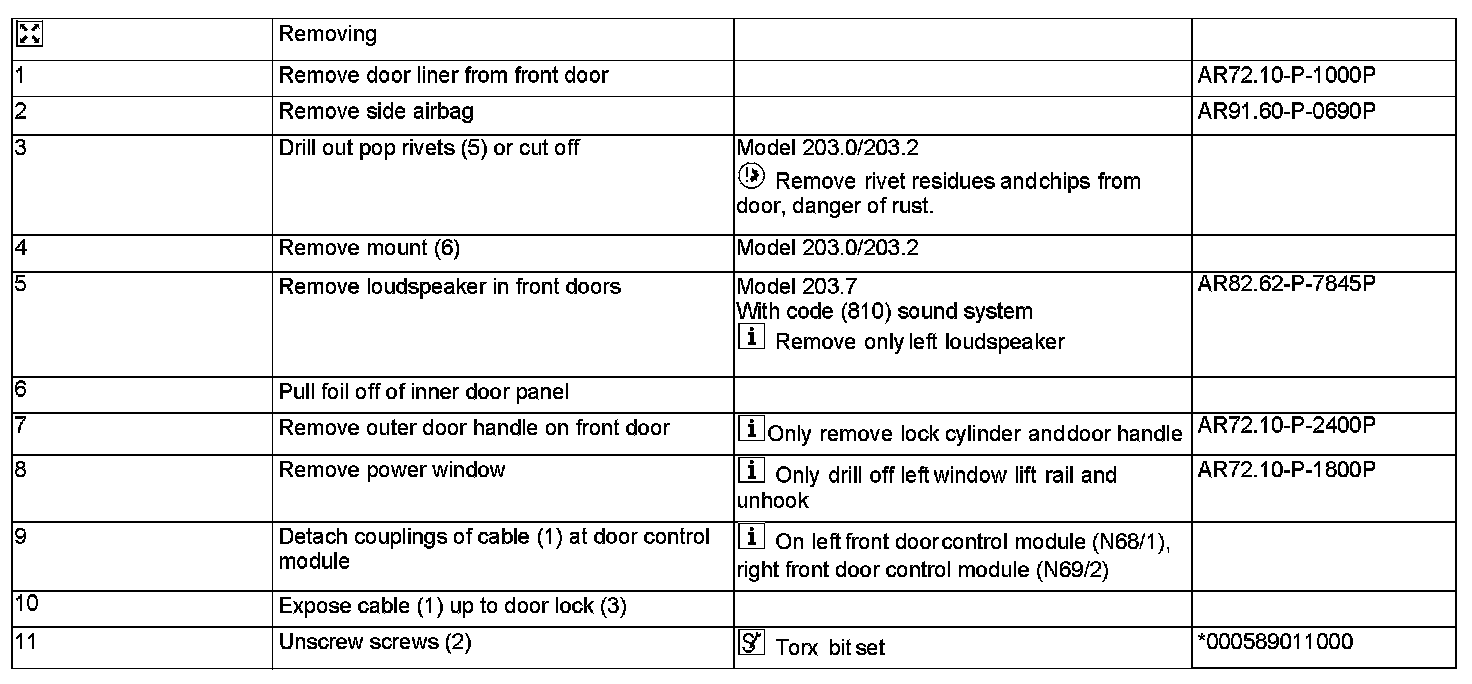

Part 1:

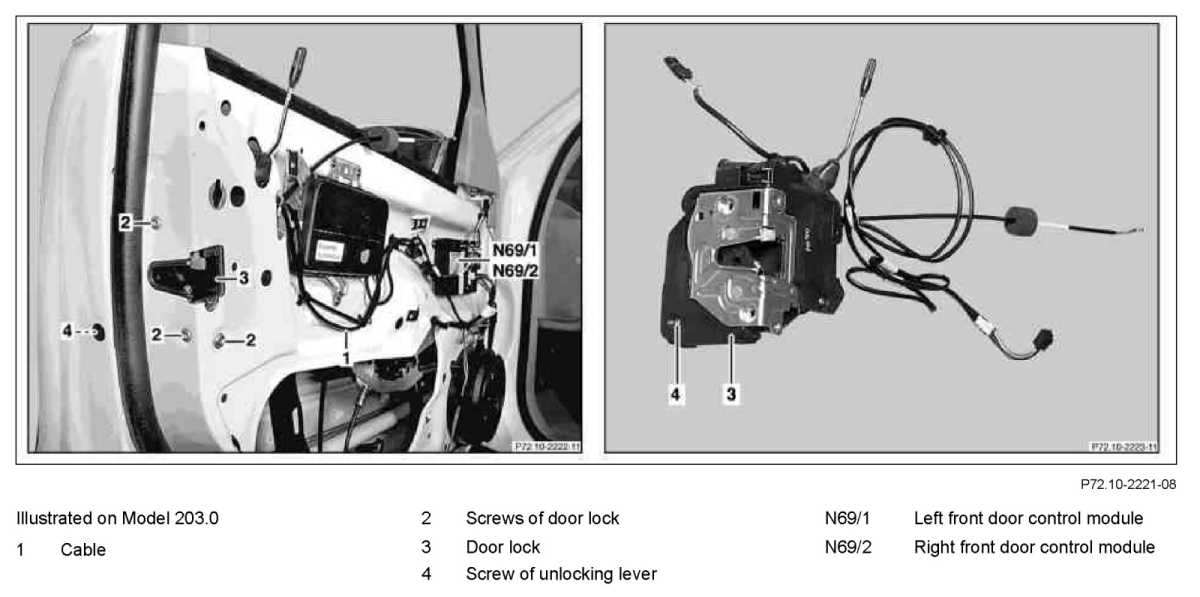

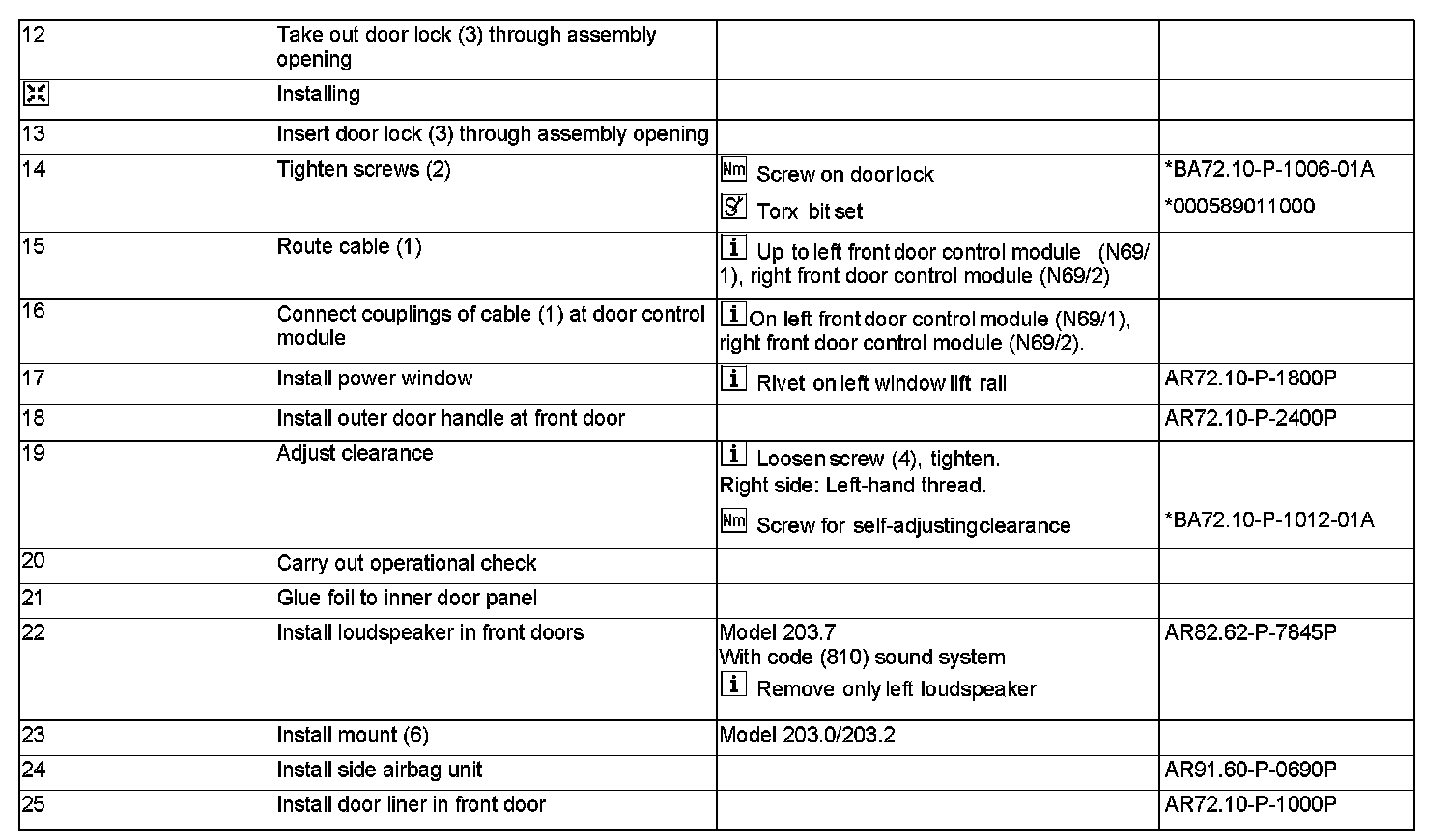

Part 2:

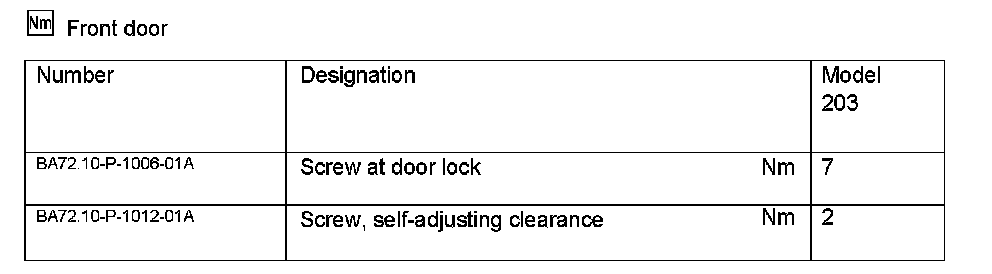

Front Door:
