Home >> Mercedes Benz >> 2004 >> C 32 AMG (203.065) V6-3.2L SC (112.961) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Service and Repair >> AN80.50-P-0002P Retrofit Antitheft Alarm System (ATA) With Towing Sensor (TS)

AN80.50-P-0002P Retrofit Antitheft Alarm System (ATA) With Towing Sensor (TS)



AN80.50-P-0002P Retrofit Anti-theft-alarm System (ATA) With Towing Sensor (TS)

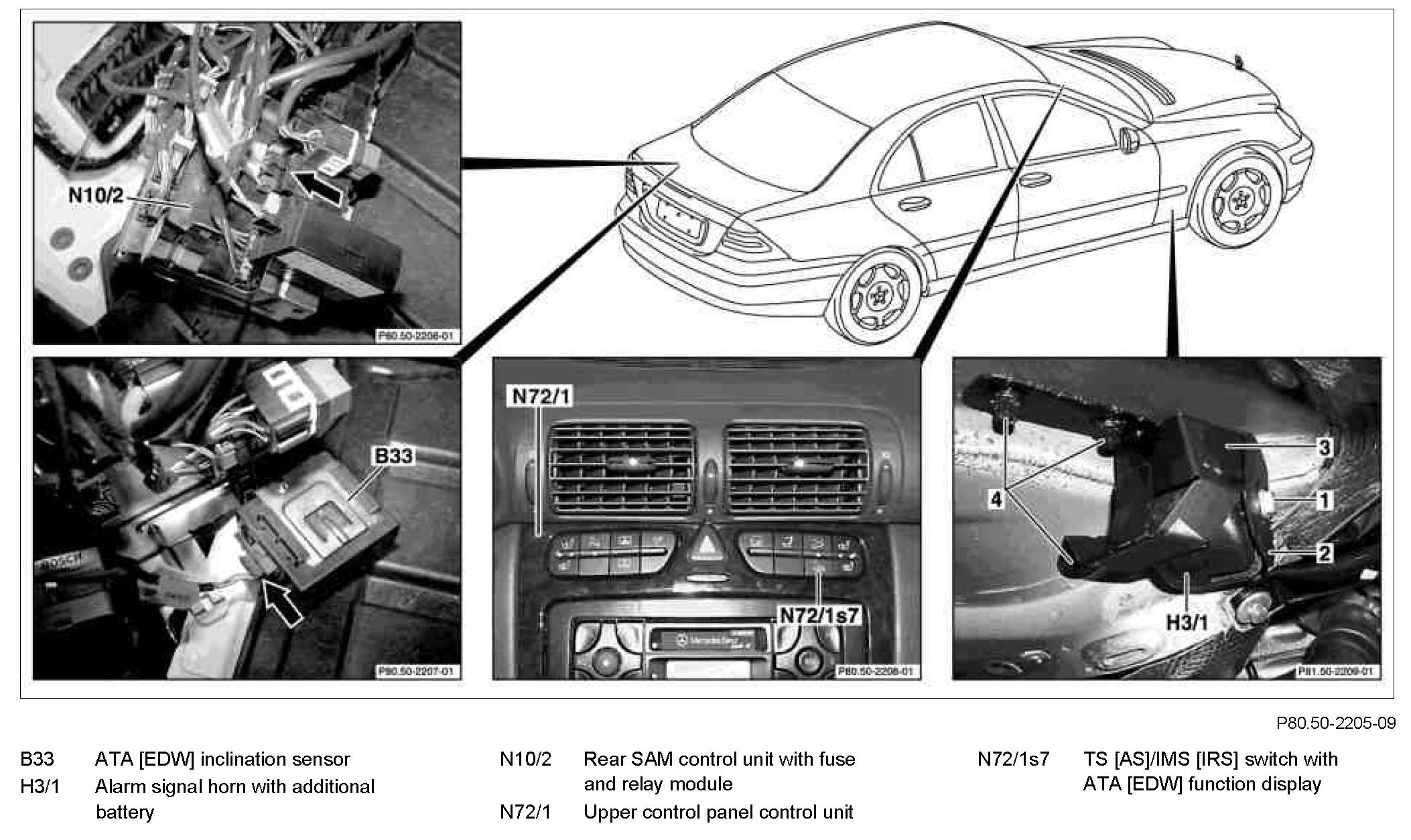

Component Identification:

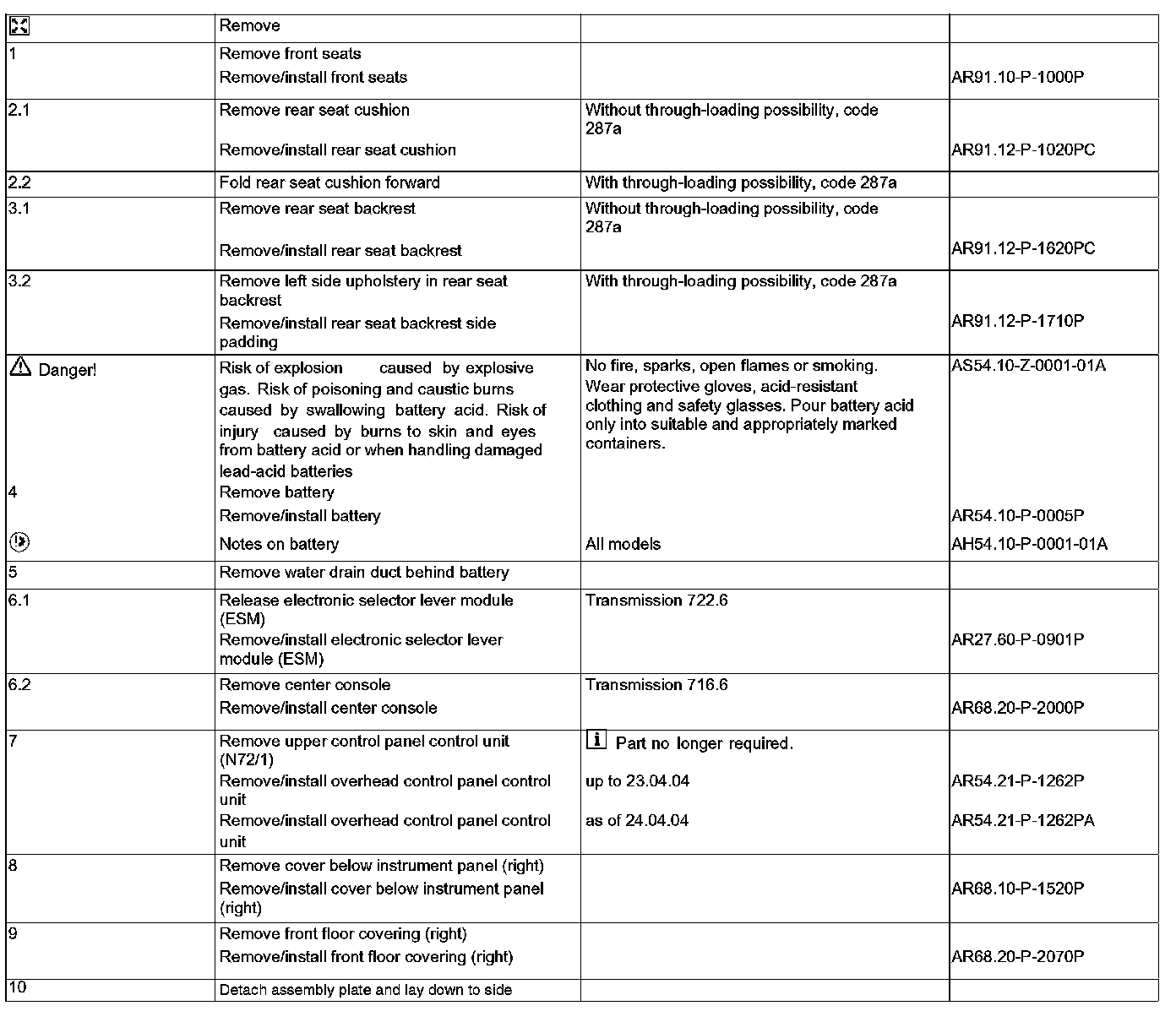

Steps 1 - 10:

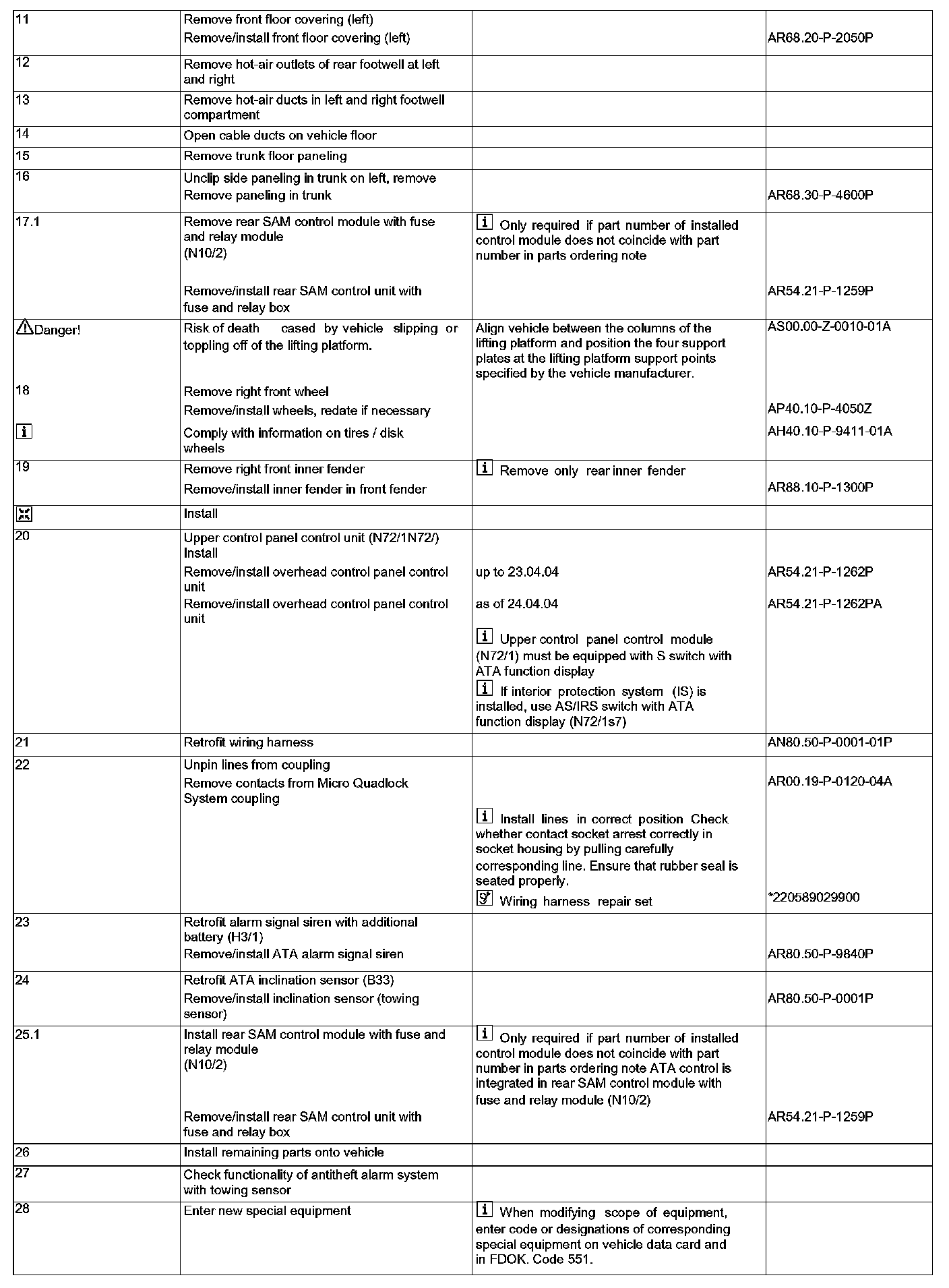

Steps 11 - 28:




Special Tools:

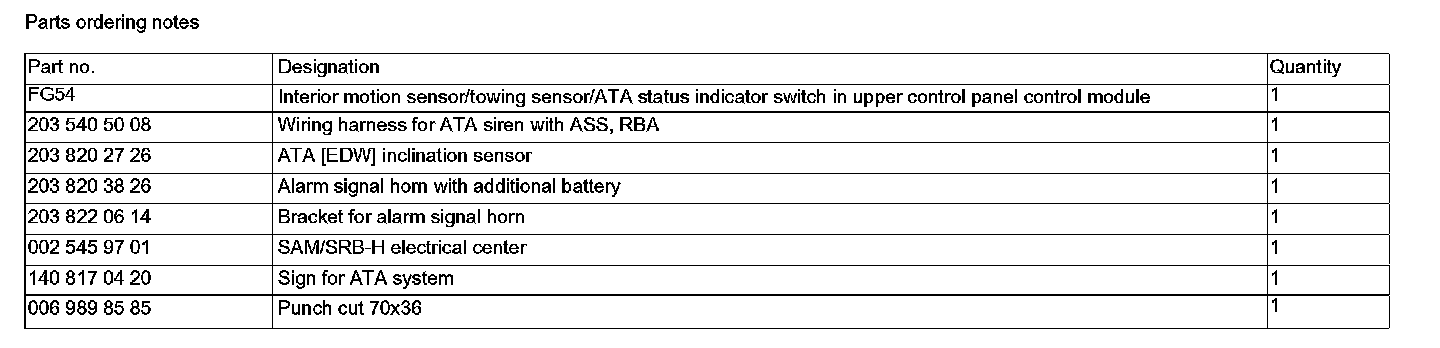

Parts Ordering Notes:
