Home >> Mercedes Benz >> 2004 >> C 32 AMG (203.065) V6-3.2L SC (112.961) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Antitheft Motion Sensor >> Service and Repair >> Procedures

Procedures



AN80.50-P-0100P Retrofit Interior Motion Sensor
- with CODE (551a) Anti-theft alarm system (ATA)

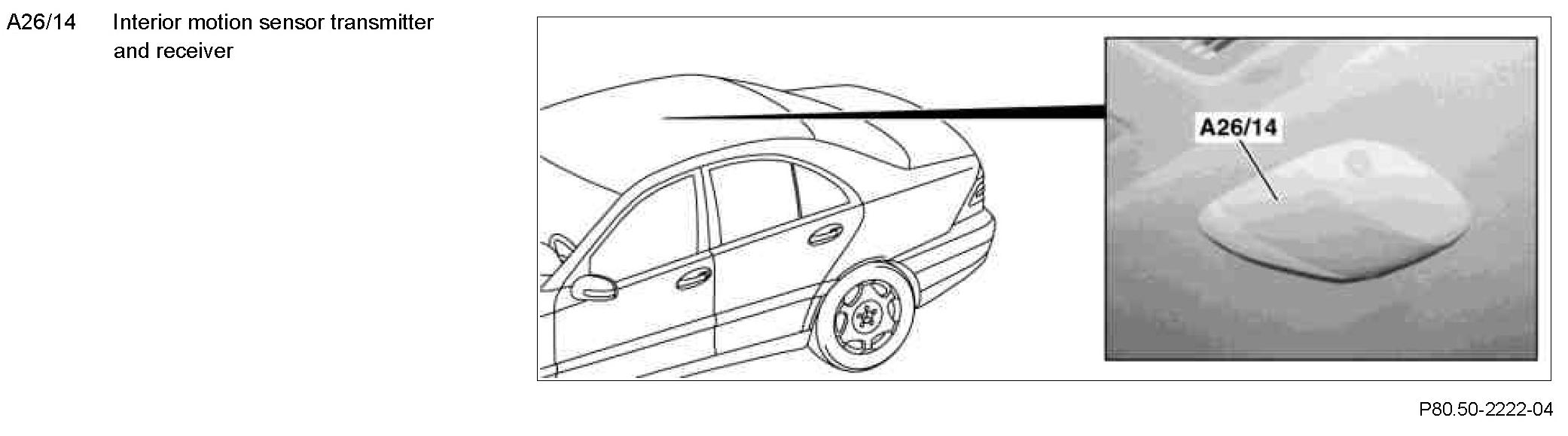

Component Identification:

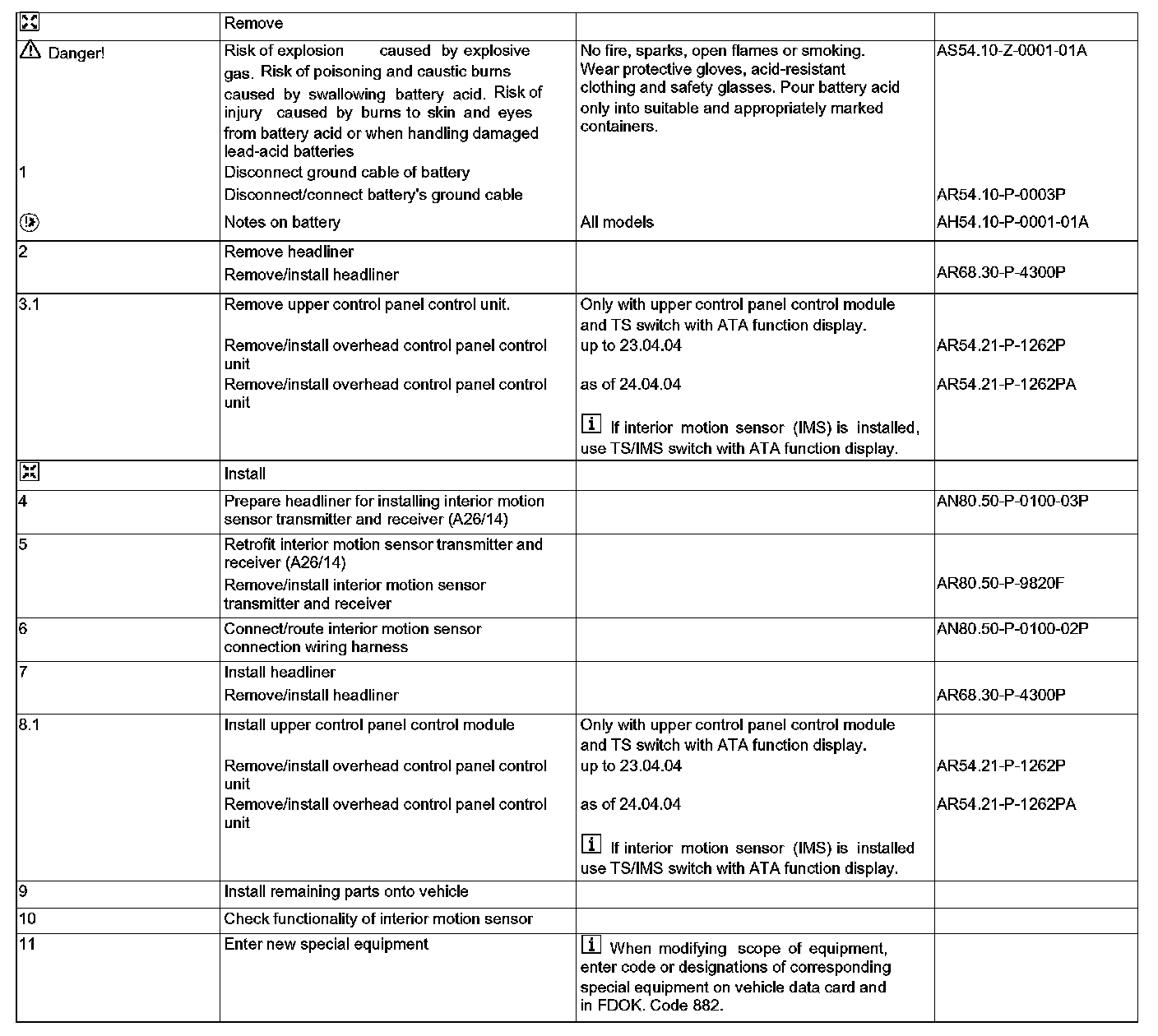

Steps 1 - 11:

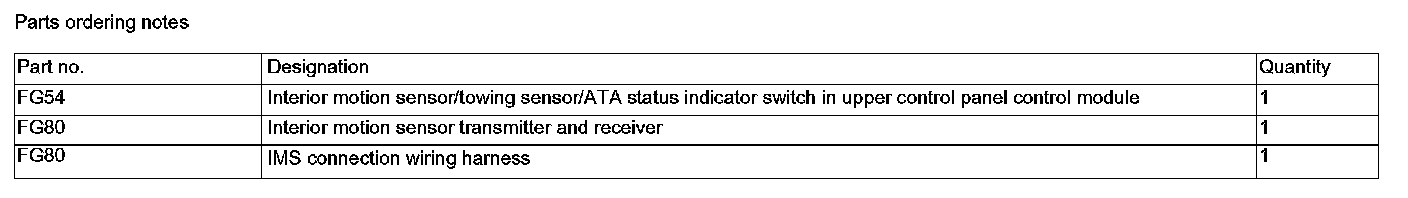

Parts Ordering Notes:
