AR35.20-P-0115R Remove/Install Wheel Carrier

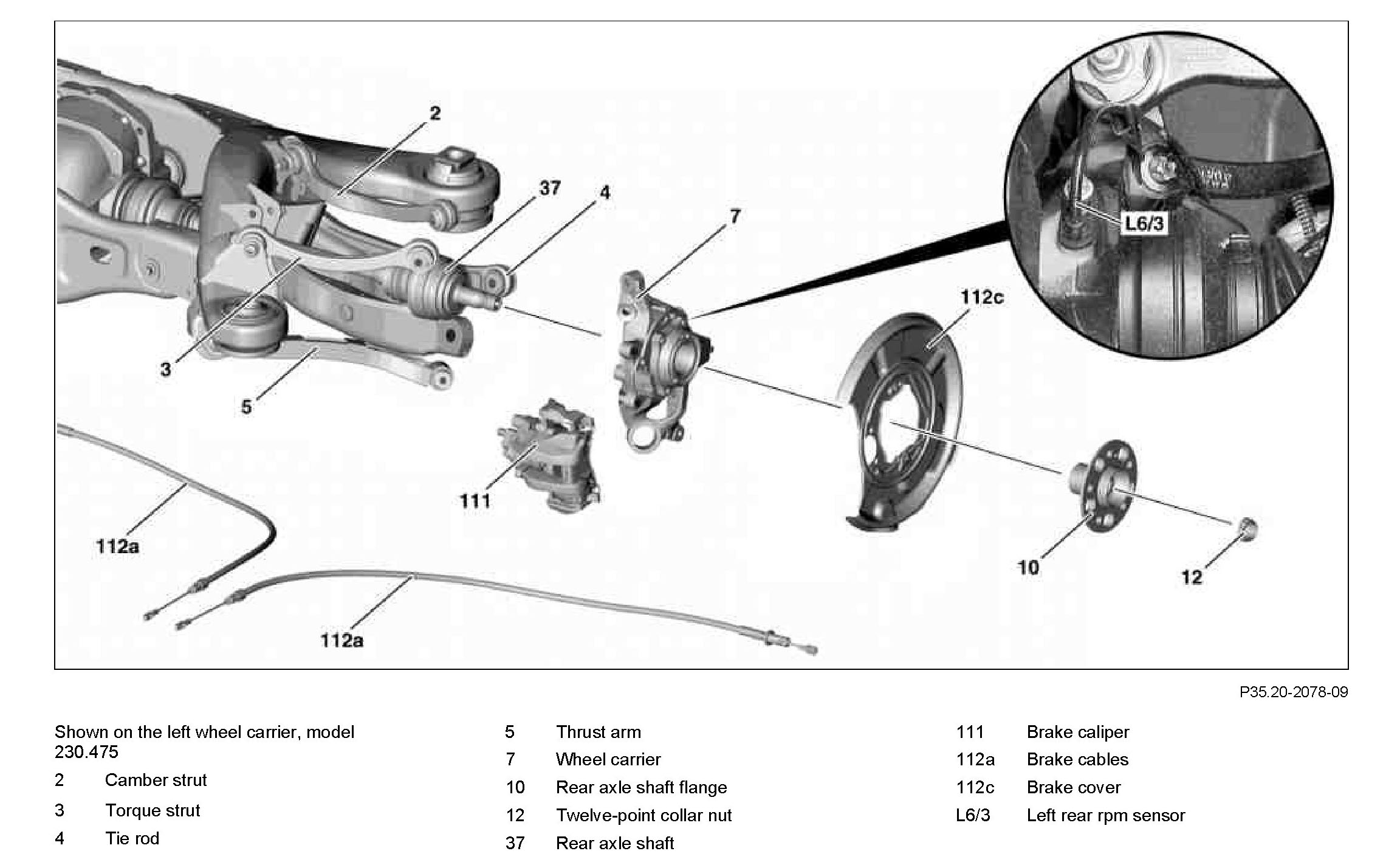

Component Identification:

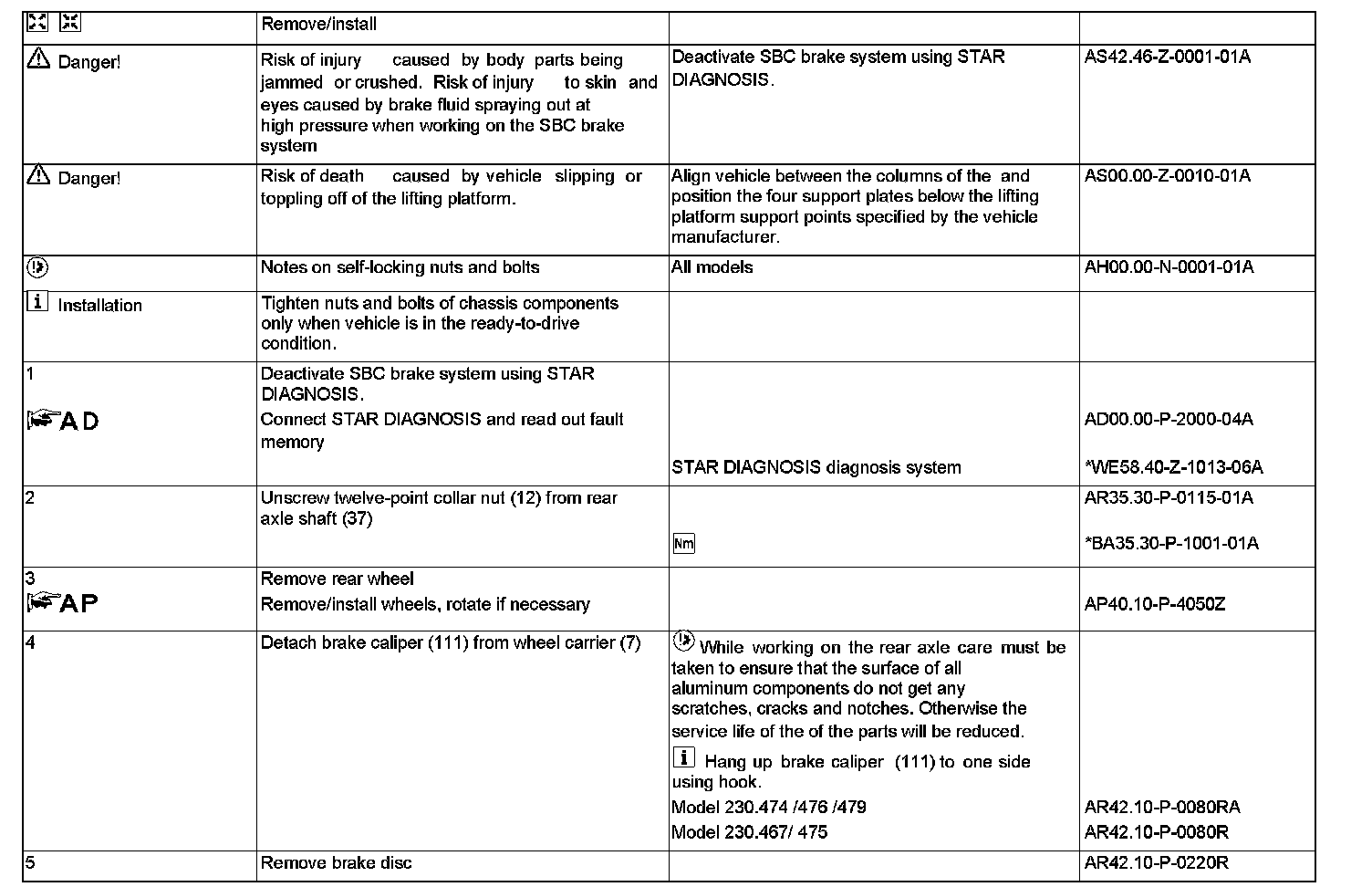

Steps 1 - 5:

Steps 6 - 19:

Rear Axle Shaft:

Camber Strut:

Torque Strut:

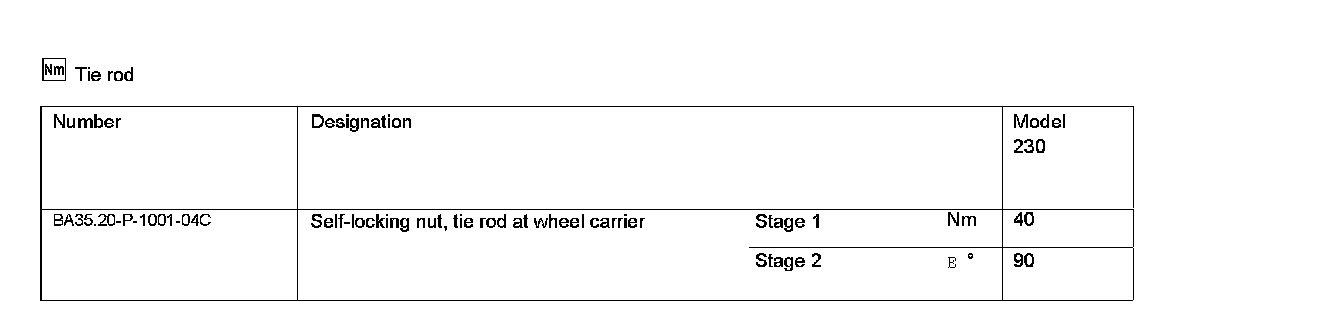

Tie Rod:

Torque Strut:

Spring Link:

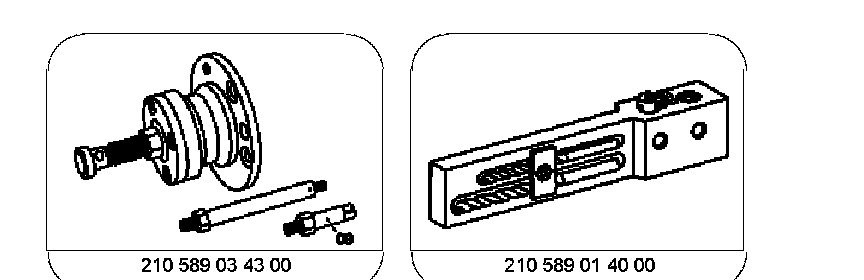

Special Tools:

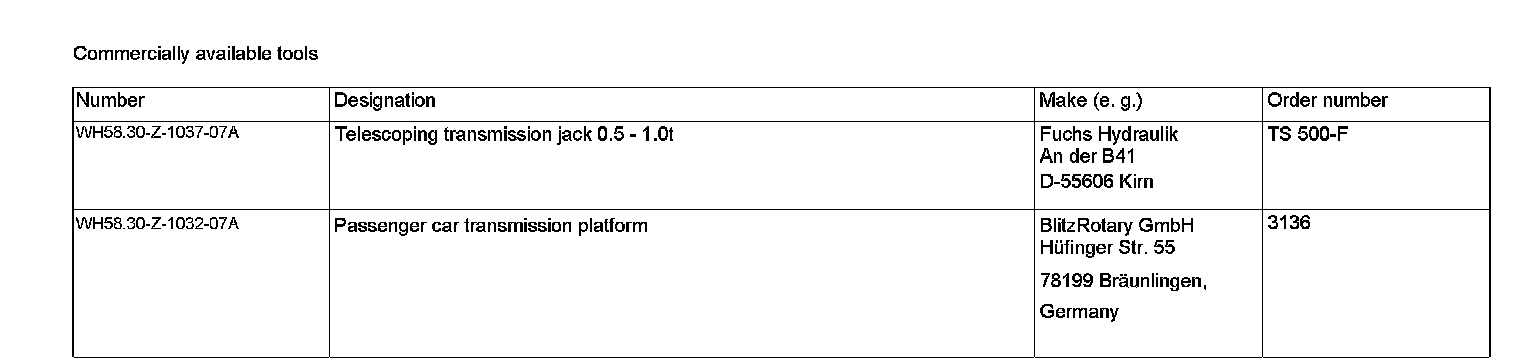

Commercially Available Tools:

Workshop Equipment/MB Testers:

Workshop Equipment/MB Testers:
